Auxiliary Heater System
WARNING: This page is about a different variant/trim than selected.

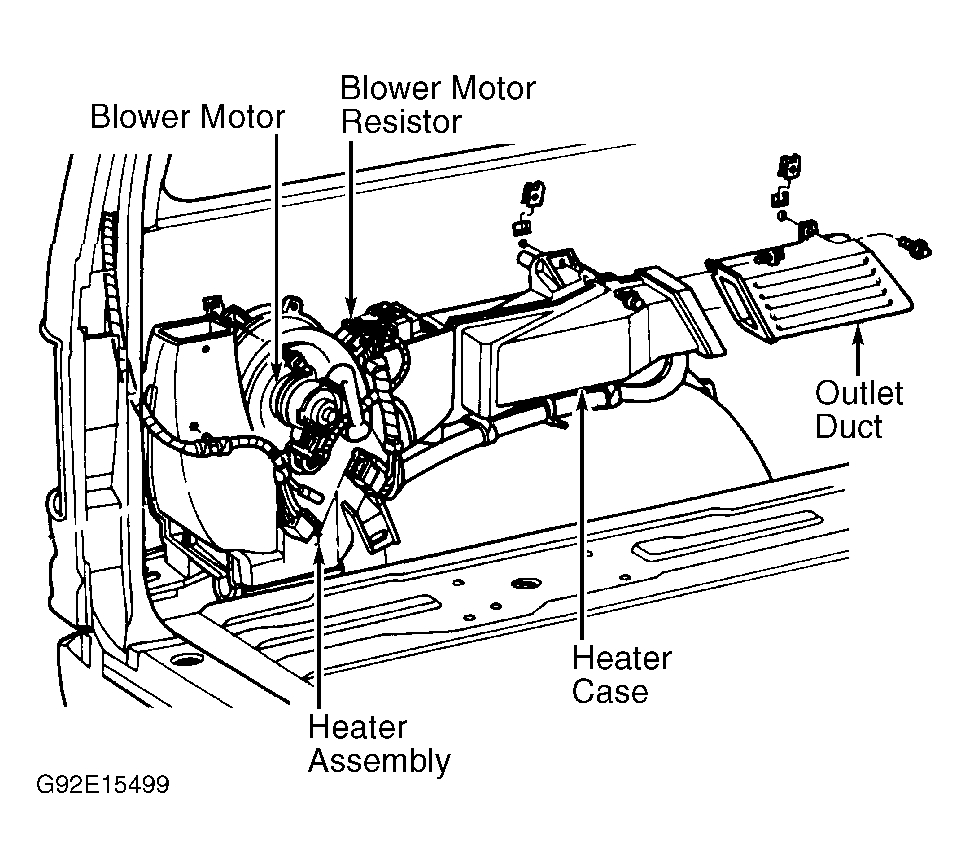

Some models are equipped with a recirculating air-type auxiliary heating system. System components include auxiliary unit assembly and airflow duct assembly. See Figure.
Control panel is mounted in dashboard and contains function selector lever, temperature control module and lever, and blower control switch. An optional control panel mounted in the headliner at rear of vehicle is available. Optional control panel permits local control over auxiliary heater. Driver may override rear control panel. Vehicles with rear heater have 2 blower switches which work independently of one another.
WARNING:
To avoid injury from accidental air bag deployment, read and carefully follow all SERVICE PRECAUTIONS and DISABLING & ACTIVATING AIR BAG SYSTEM procedures in AIR BAG RESTRAINT SYSTEM article.
