NOTE:
Central junction box is located under driver's side of instrument panel. See Fig 1. Central junction box may also be referred to as passenger compartment fuse panel.

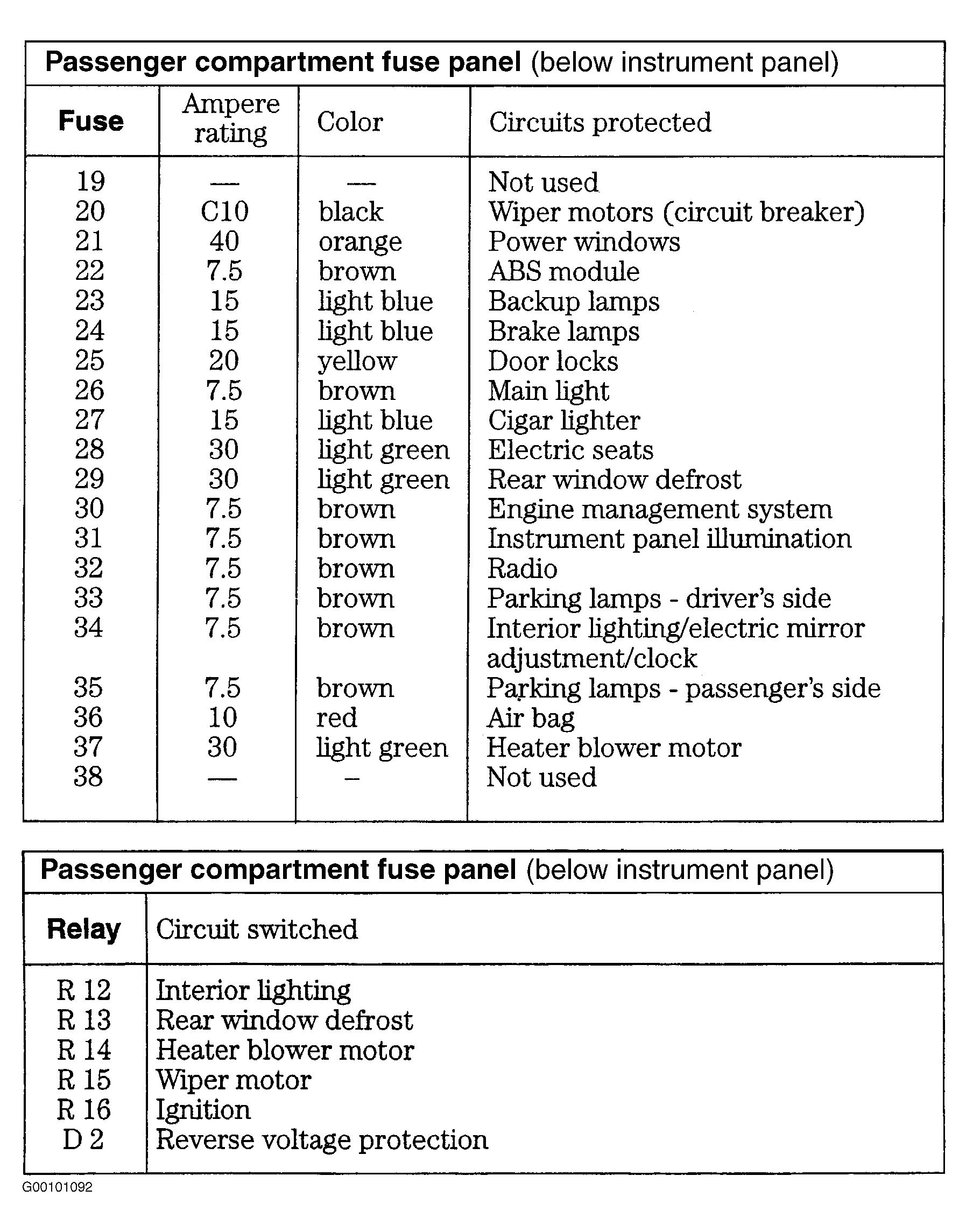

Fig 1: Dash
Courtesy of FORD MOTOR CO.

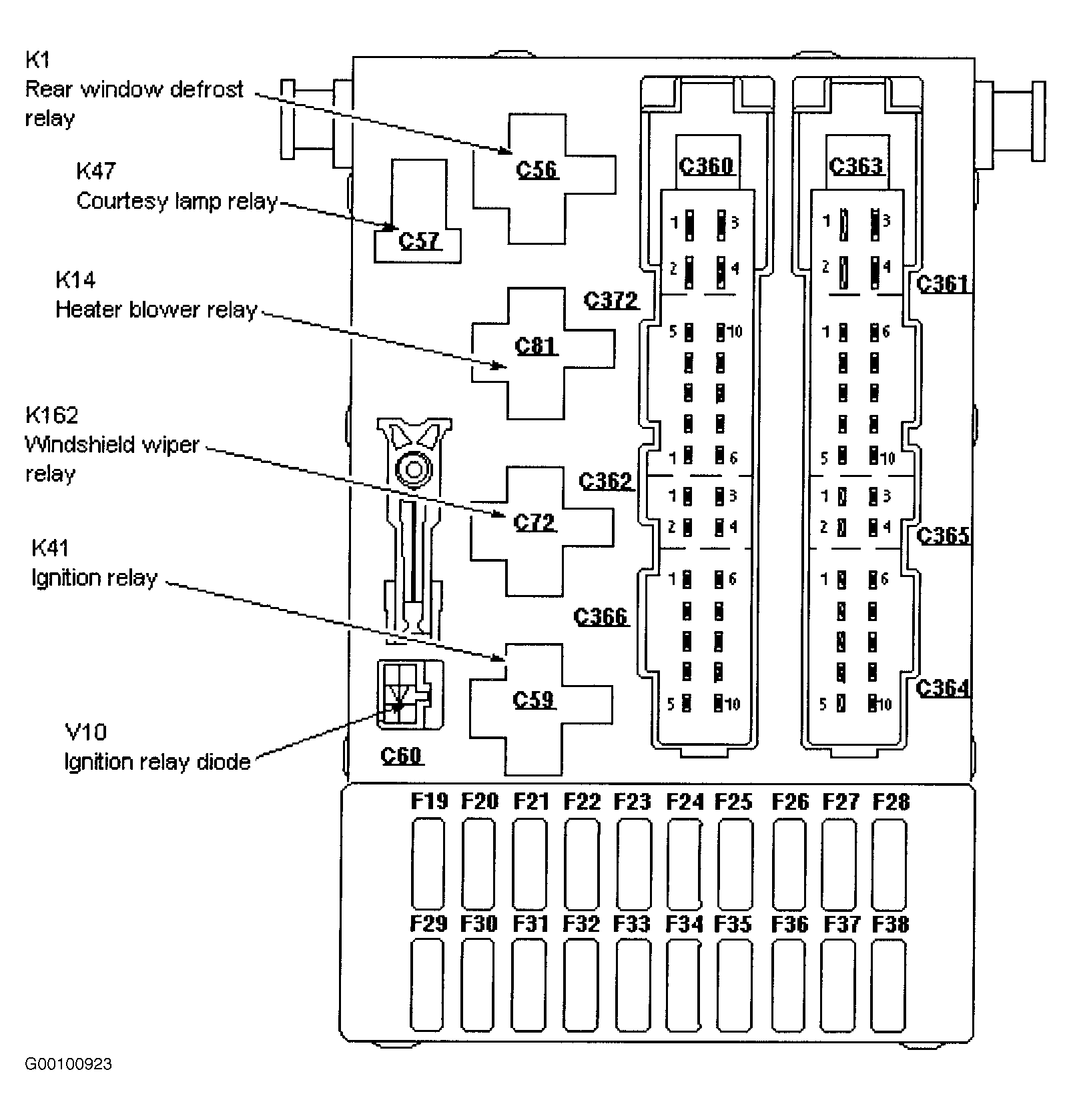

Fig 2: Identifying Central Junction Box Components
