Connector Identification: Notes

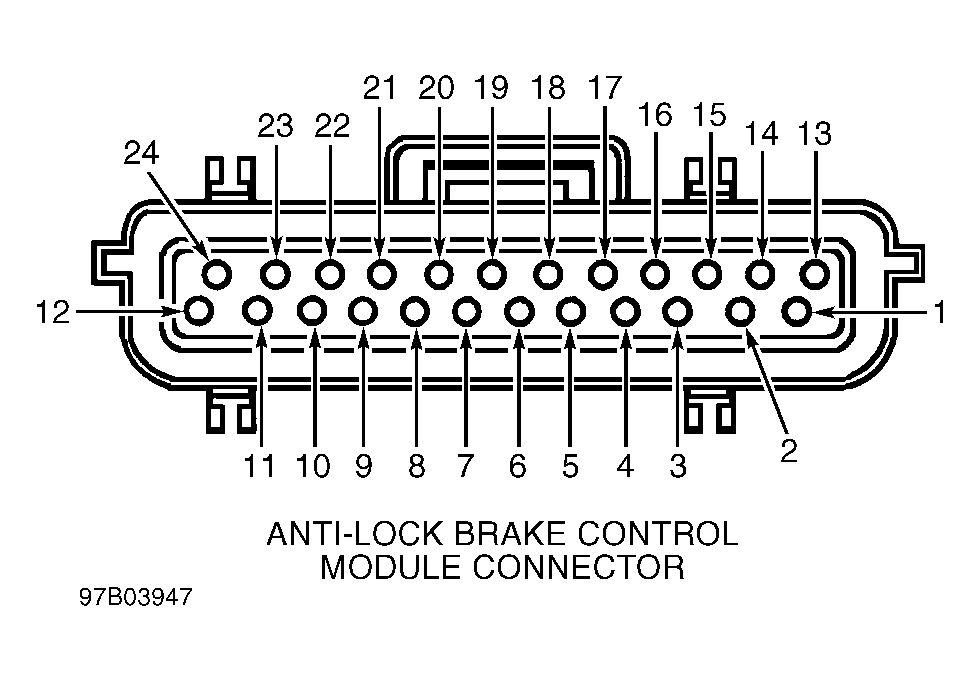

Fig 1: Identifying Anti-Lock Brake Control Module (ABCM) connector
G97B03947Courtesy of FORD MOTOR CO.
Fig 2: Identifying Auxiliary Warning Module Connector
G97H03950Courtesy of FORD MOTOR CO.
Fig 3: Identifying Electronic Instrument Cluster Connector
G97D03948Courtesy of FORD MOTOR CO.
Fig 4: Identifying Analog Instrument Cluster Connector
G97J03951Courtesy of FORD MOTOR CO.
