Abs Quick Check Chart

NOTE: For measurements, use Breakout Box (014-00322) and ABS Adapter Harness & Overlay (007-00108).

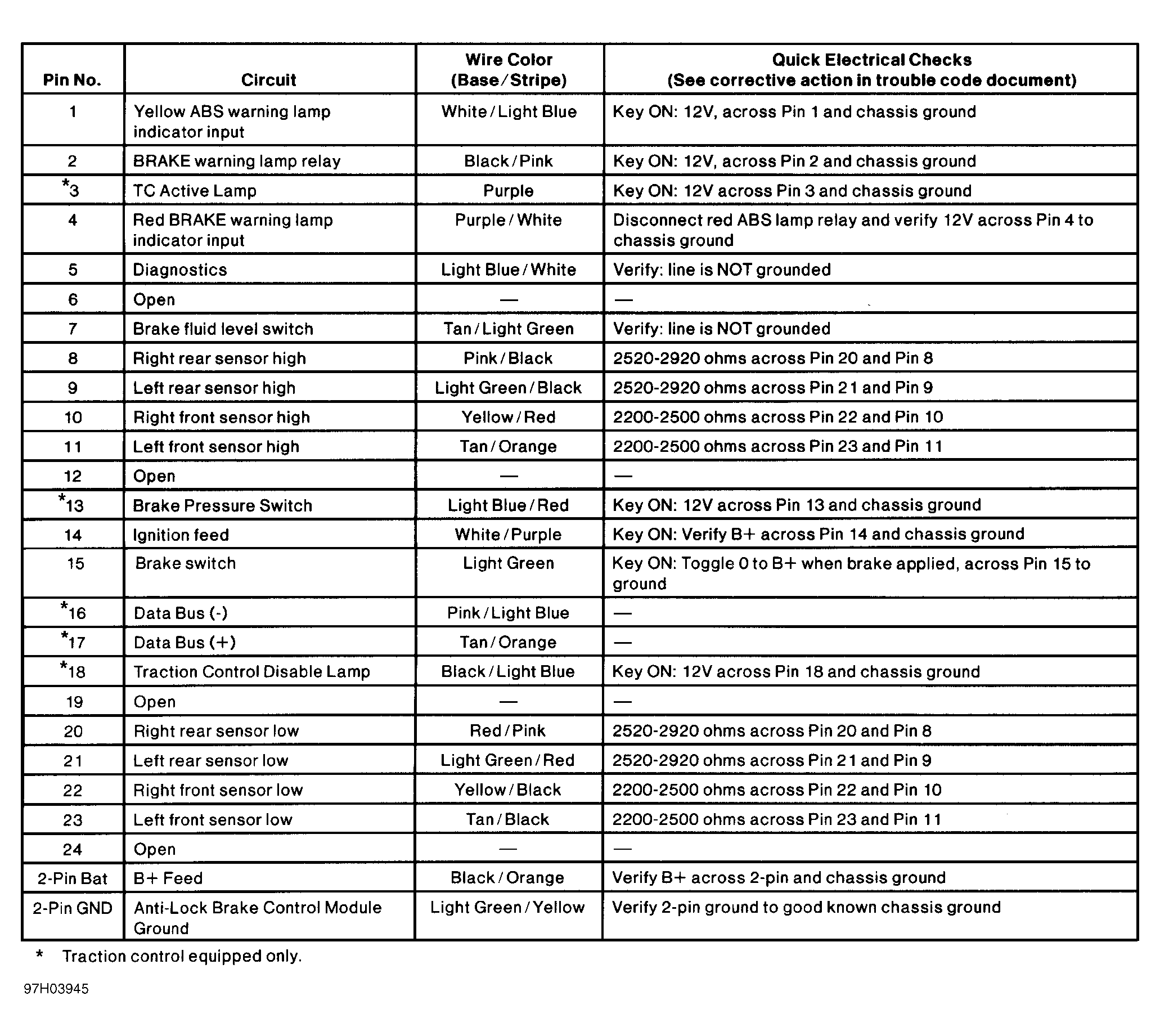

Fig 1: ABS Quick Check Chart

G97H03945

Courtesy of FORD MOTOR CO.
