Fuse Junction Panel

NOTE: Fuse junction panel may also be referred to as Instrument Panel (I/P) fuse panel. Fuse junction panel is located under driver's side of instrument panel. See Fig 1.

Fig 1: Locating Instrument Panel Electrical Components

Courtesy of FORD MOTOR CO.

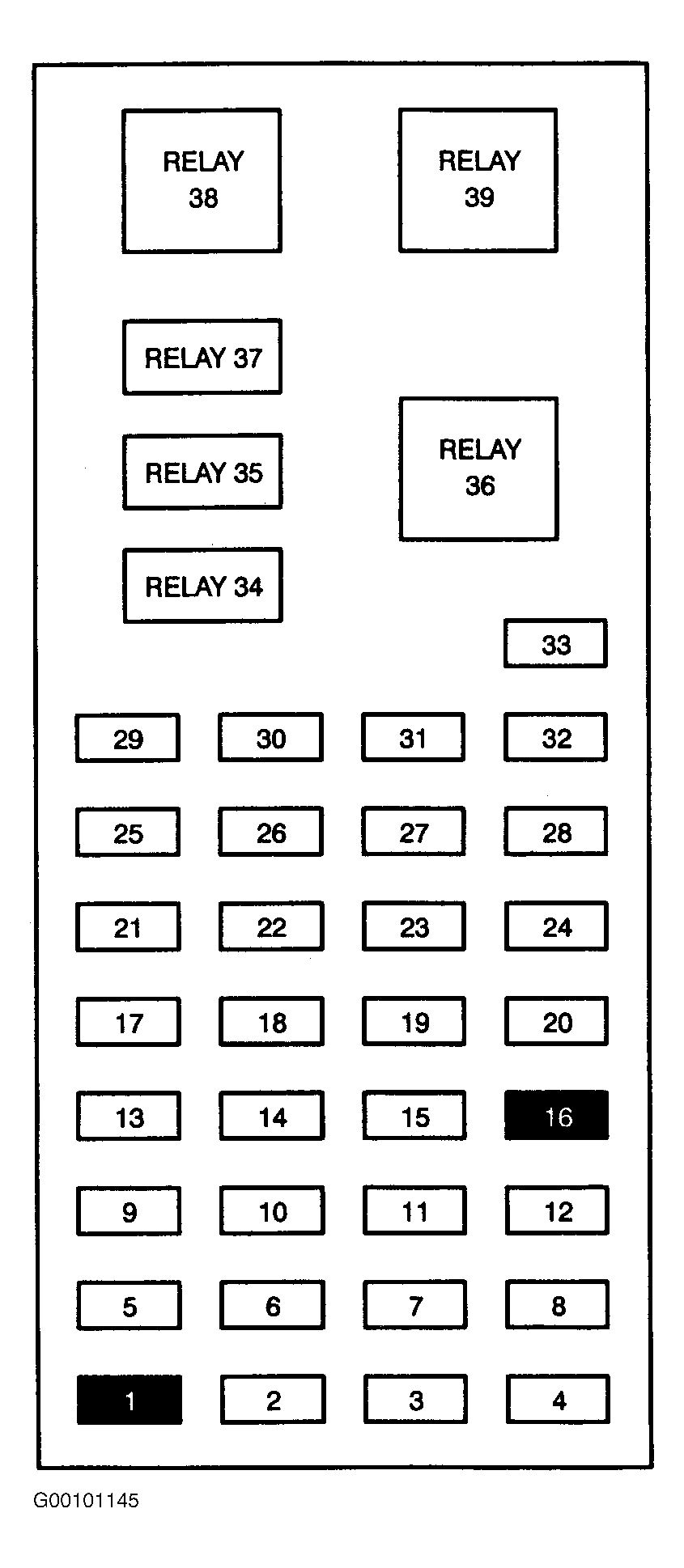

Fig 2: Identifying Fuse Junction Panel Components

Courtesy of FORD MOTOR CO.

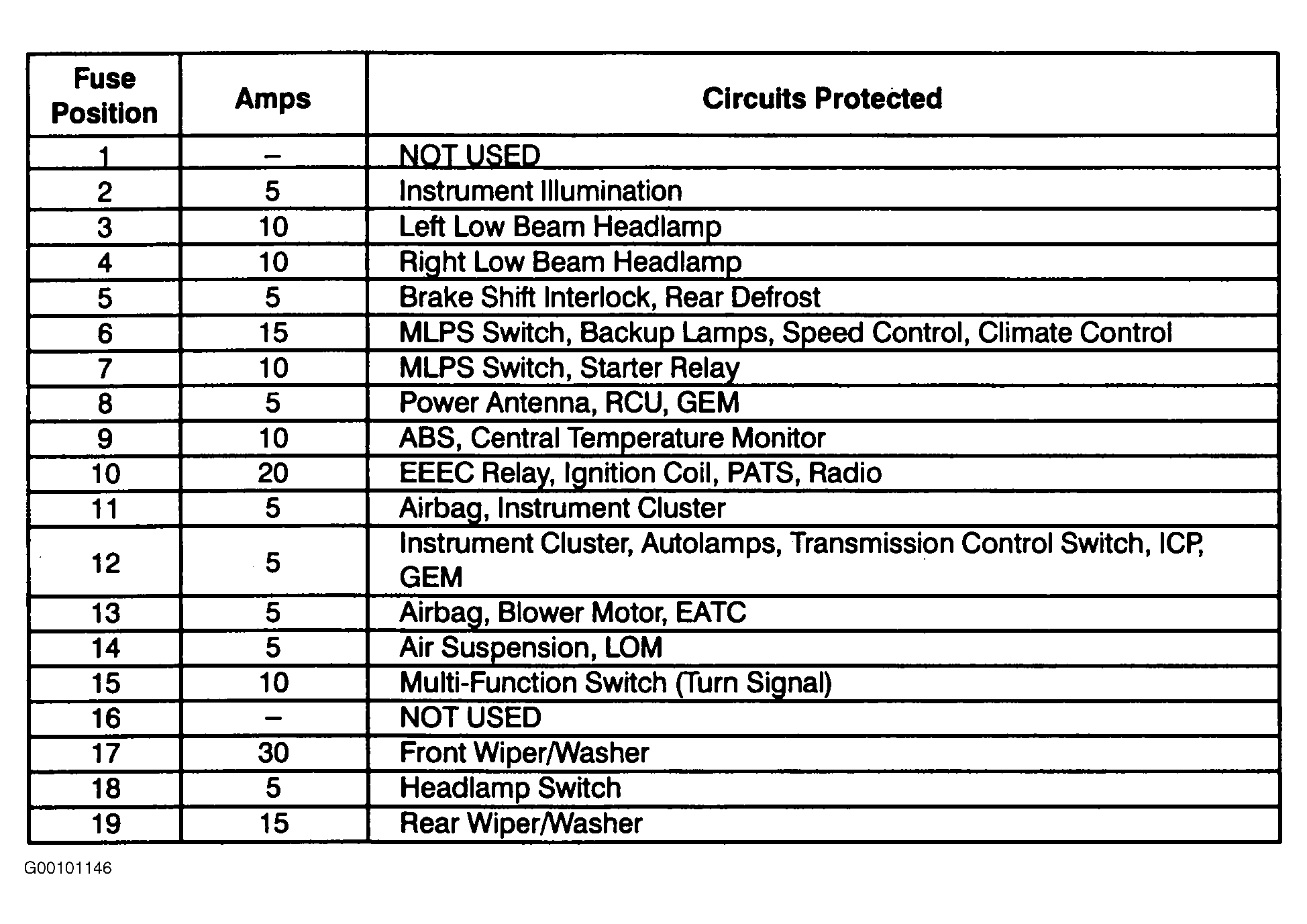

Fig 3: Fuse Junction Panel Legend (1 Of 2)

Courtesy of FORD MOTOR CO.

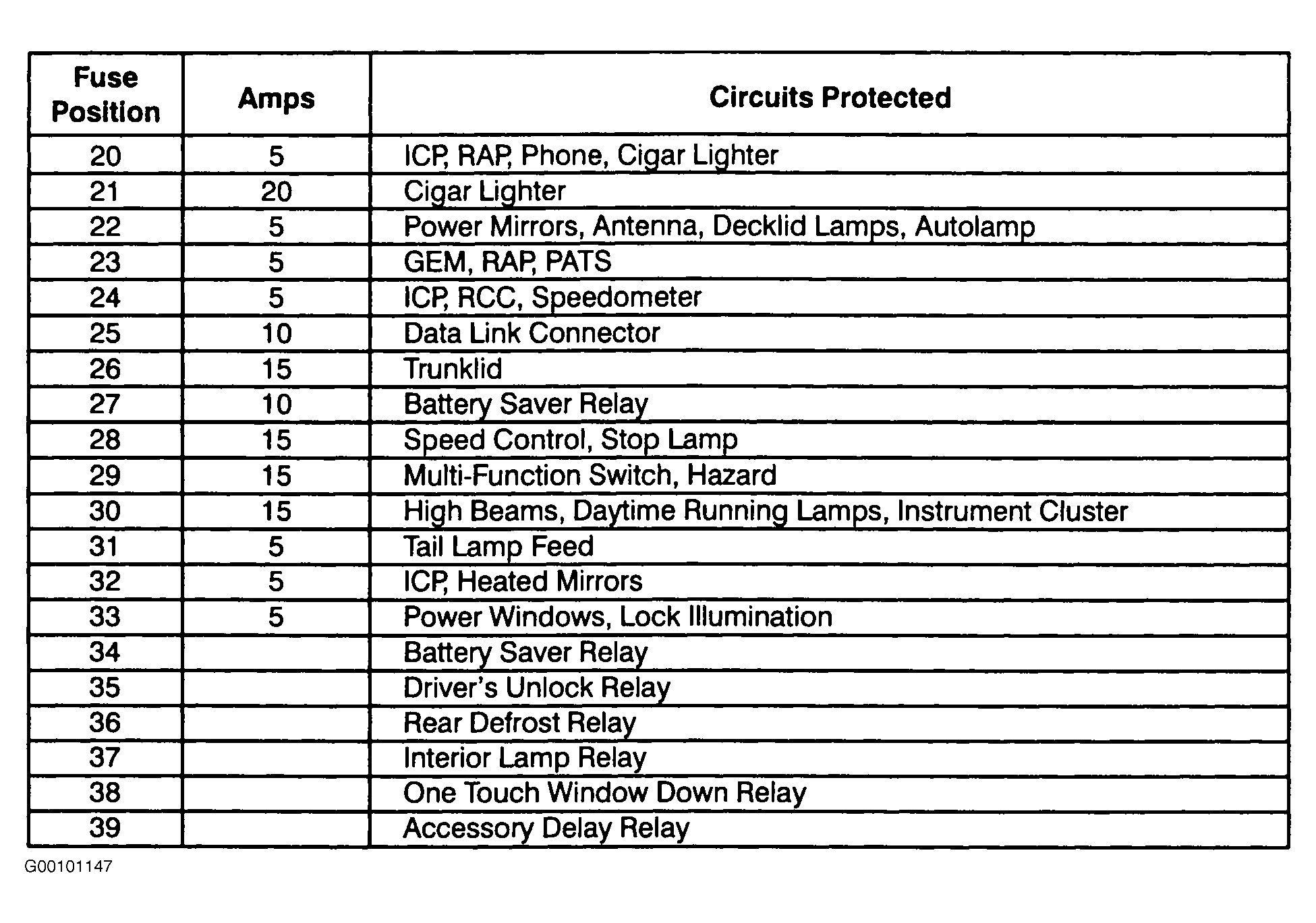

Fig 4: Fuse Junction Panel Legend (2 Of 2)

Courtesy of FORD MOTOR CO.
