Engine Compartment Fuse/Relay Box

NOTE: Engine compartment fuse/relay box is located in front of engine compartment, near battery. See Fig 1.

Fig 1: Locating Engine Compartment Electrical Components

Courtesy of FORD MOTOR CO.

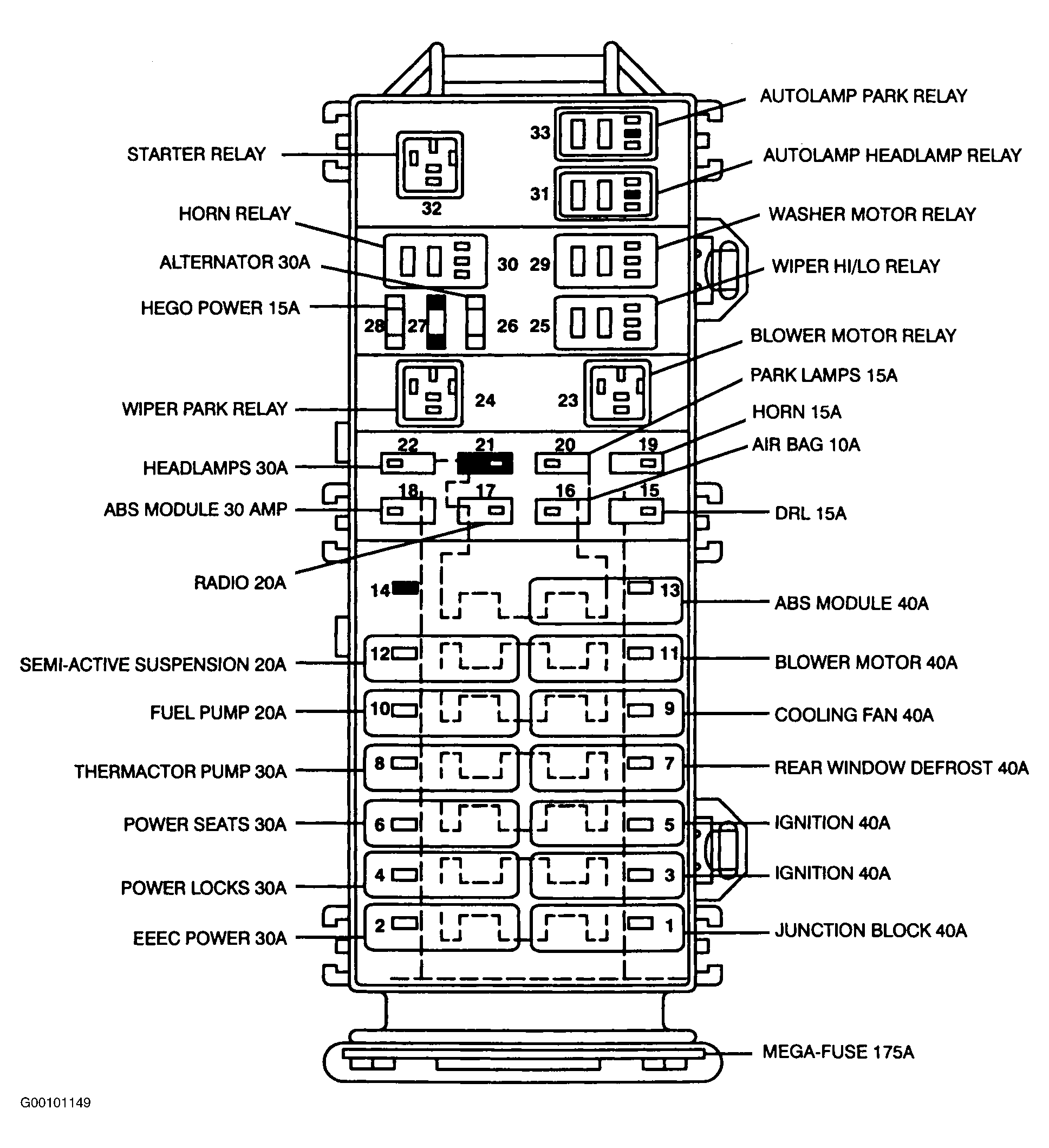

Fig 2: Identifying Engine Compartment Fuse/Relay Box Components

Courtesy of FORD MOTOR CO.

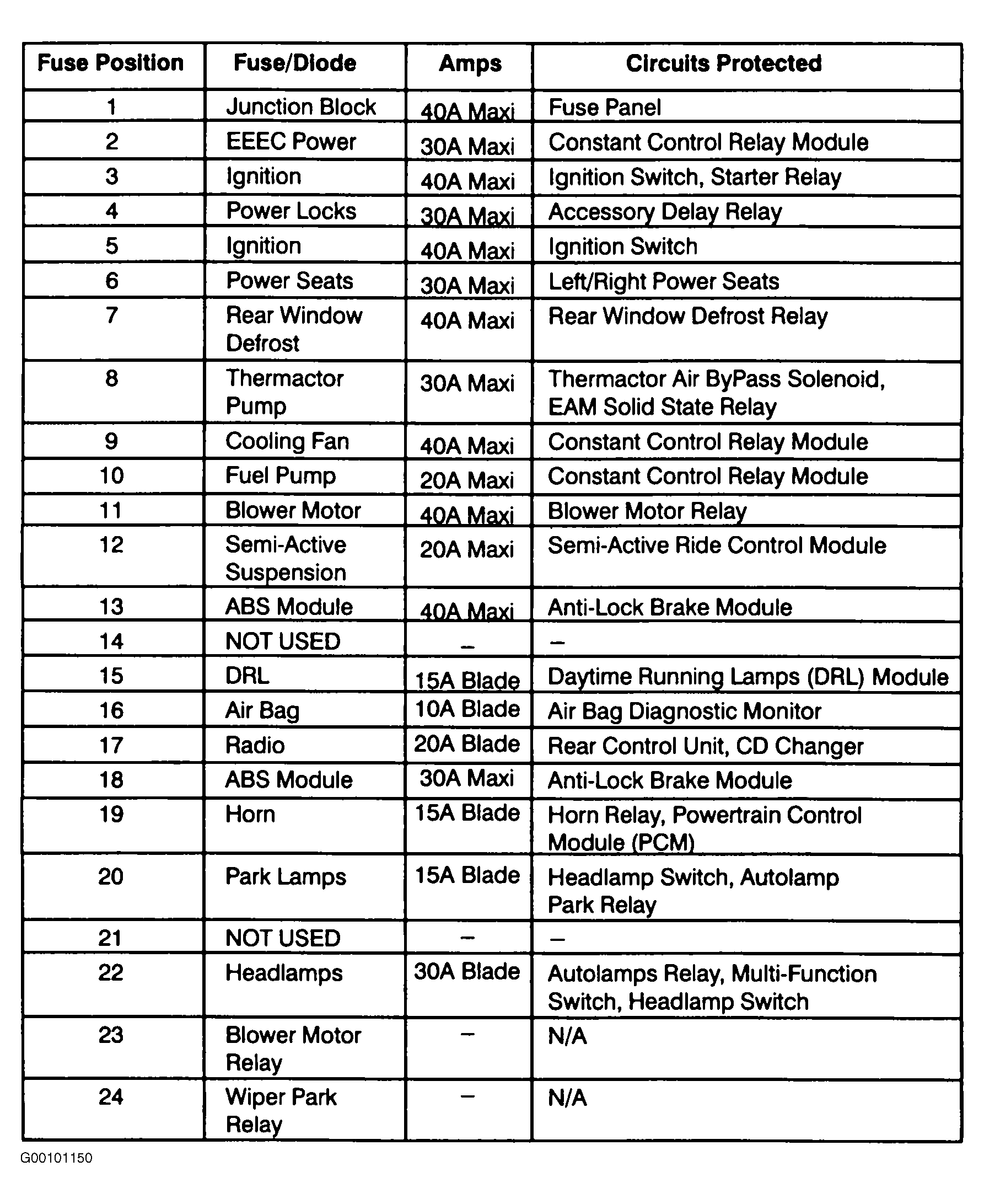

Fig 3: Engine Compartment Fuse/Relay Box Legend (1 Of 2)

Courtesy of FORD MOTOR CO.

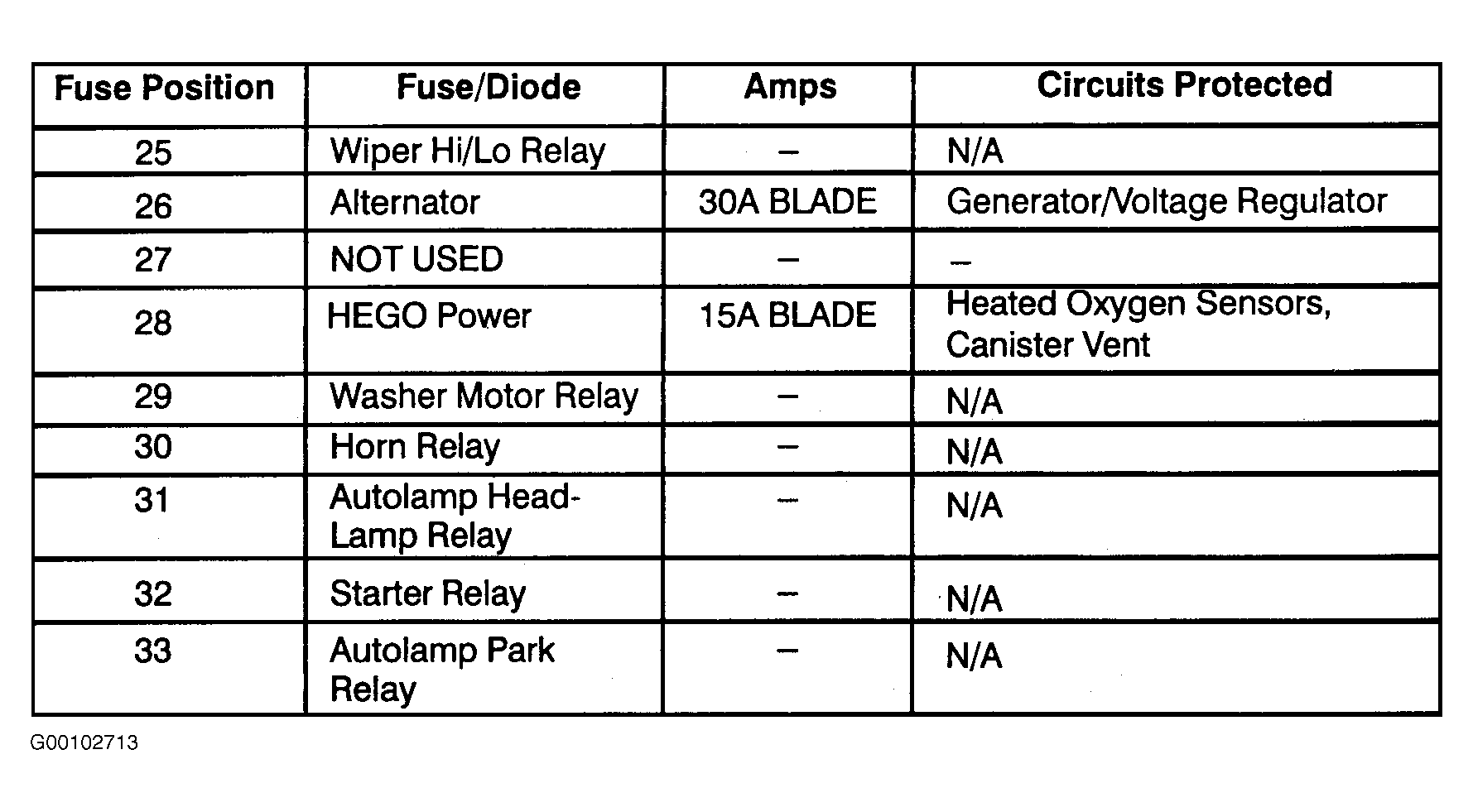

Fig 4: Engine Compartment Fuse/Relay Box Legend (2 Of 2)

Courtesy of FORD MOTOR CO.
