Cellular Phone In-Line Relay

NOTE: Cellular phone in-line relay is located above left rear wheel well in cargo area. See Fig 1 or Fig 2 .

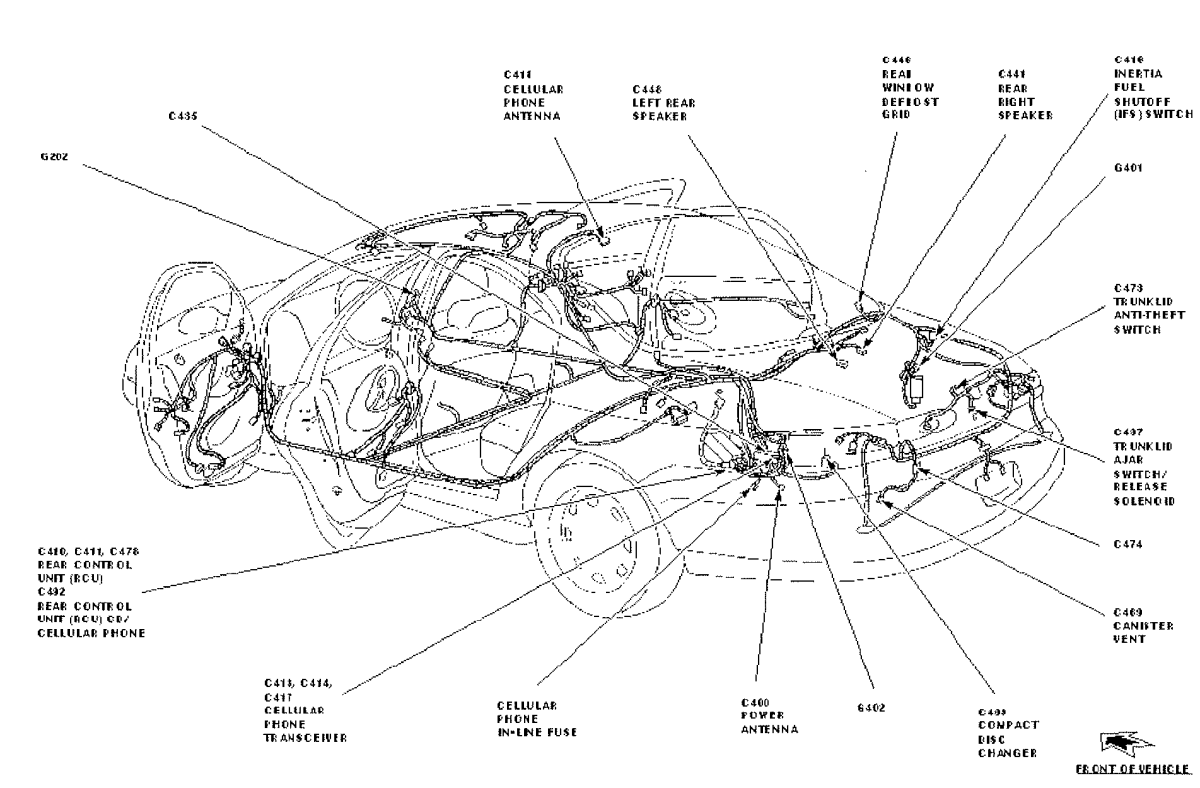

Fig 1: Locating Cellular Phone In-Line Relay (Sedan)

Courtesy of FORD MOTOR CO.

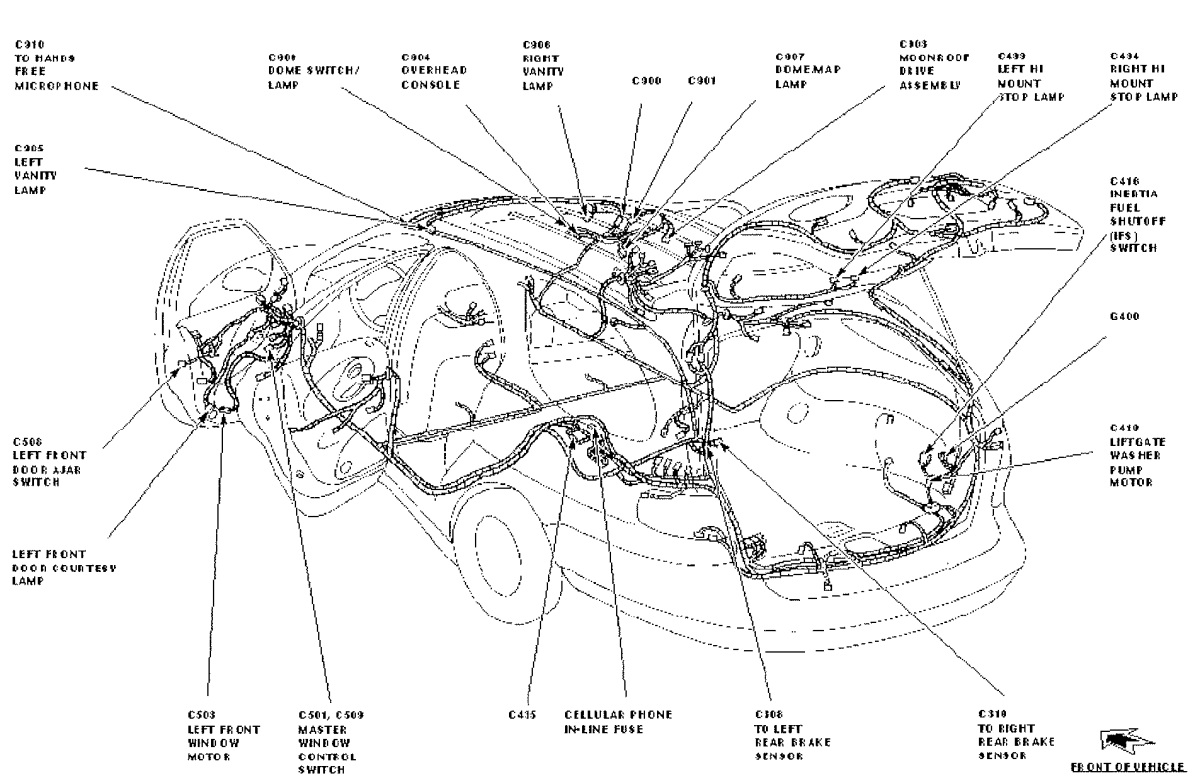

Fig 2: Locating Cellular Phone In-Line Relay (Wagon)

Courtesy of FORD MOTOR CO.
