Engine Performance
>>
Mode 6 - 1997 Ford - Except Diesel
>>
Rear Ho2S Monitor
Rear Ho2S Monitor

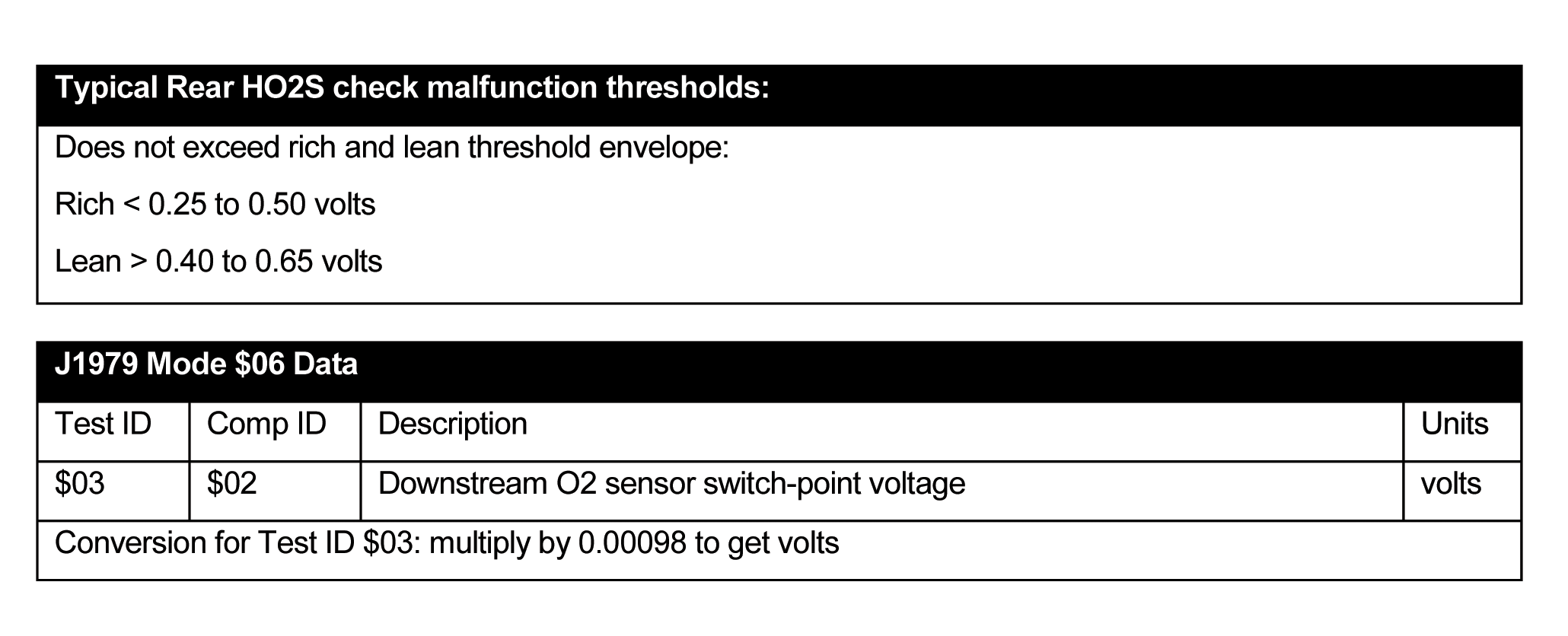

Fig 1: Mode $06 Data For Rear HO2S Monitor
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
