Door Lock Switch

WARNING: This page is about a different car, the 1997 Mercury Sable and 1997 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove door lock switch. See DOOR LOCK SWITCH  under REMOVAL & INSTALLATION. With switch in neutral position, continuity should not exist between terminal No. 4 and terminals No. 3 and 6. See Fig 1 .
  2. Press switch to unlock position. Continuity should exist between switch terminals No. 3 and 4. Press switch to lock position. Continuity should exist between terminals No. 4 and 6. If continuity is not as specified, replace switch.

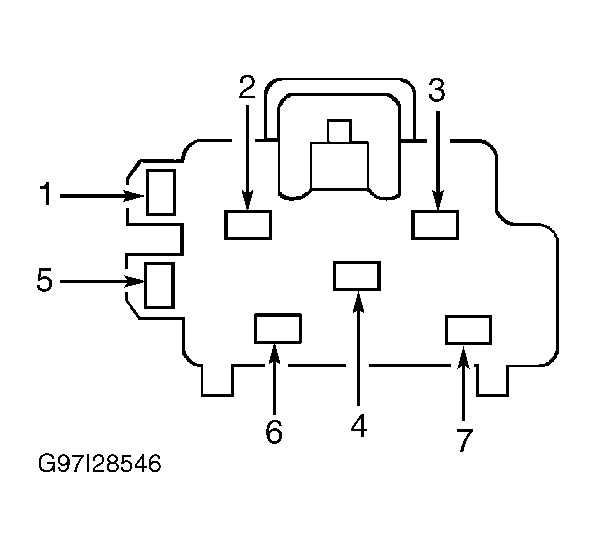

Fig 1: Identifying Door Lock Switch Terminals
G97I28546Courtesy of FORD MOTOR CO.
