Vehicle Calibration

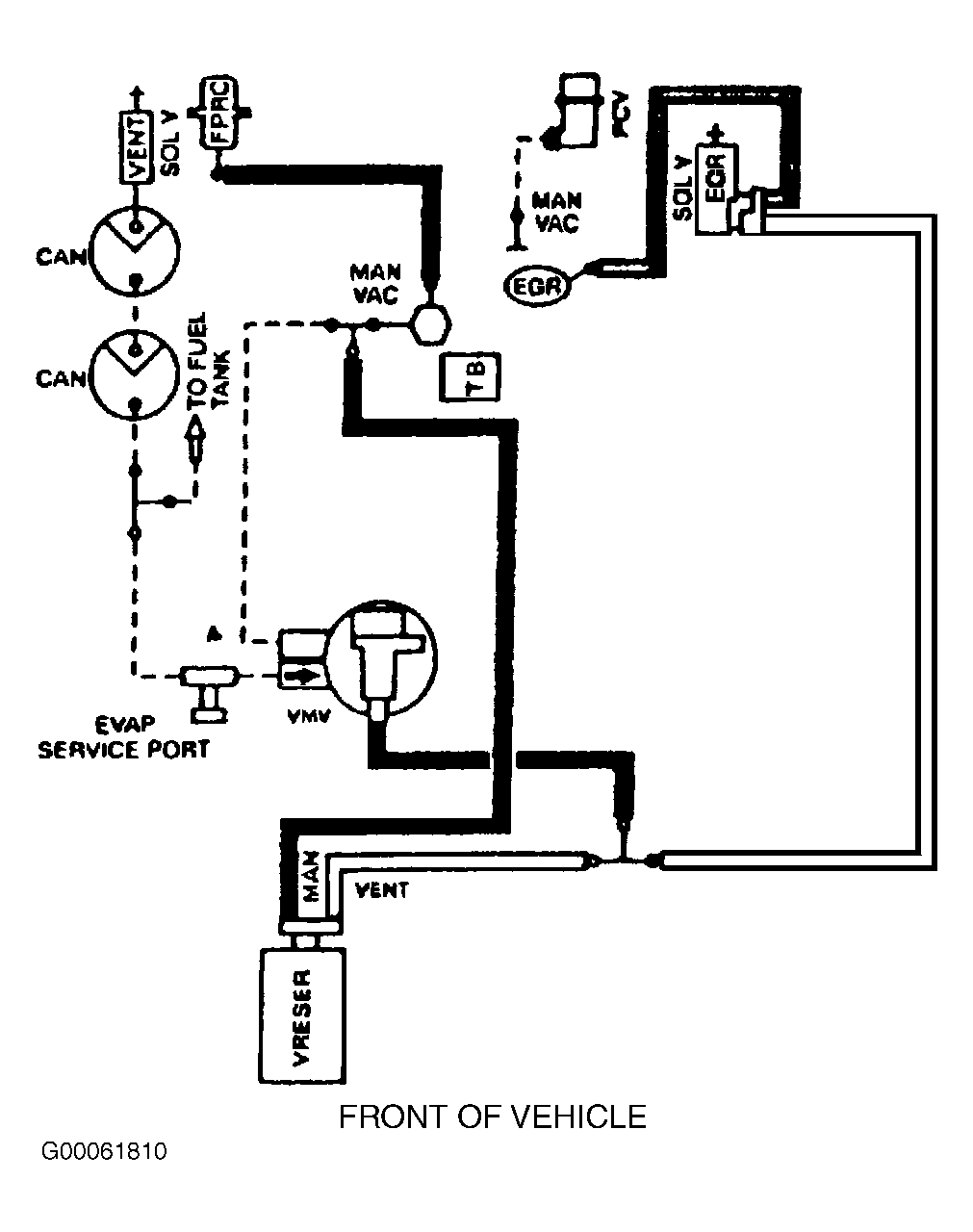

Vacuum diagrams are identified by calibration code. Use the Emission Calibration Label to identify calibration. Calibration label is attached to left door or left door pillar. See Fig 1. Use calibration code to select vacuum diagram.

Application & Calibration Codes					See Fig.
Aerostar
3.0L

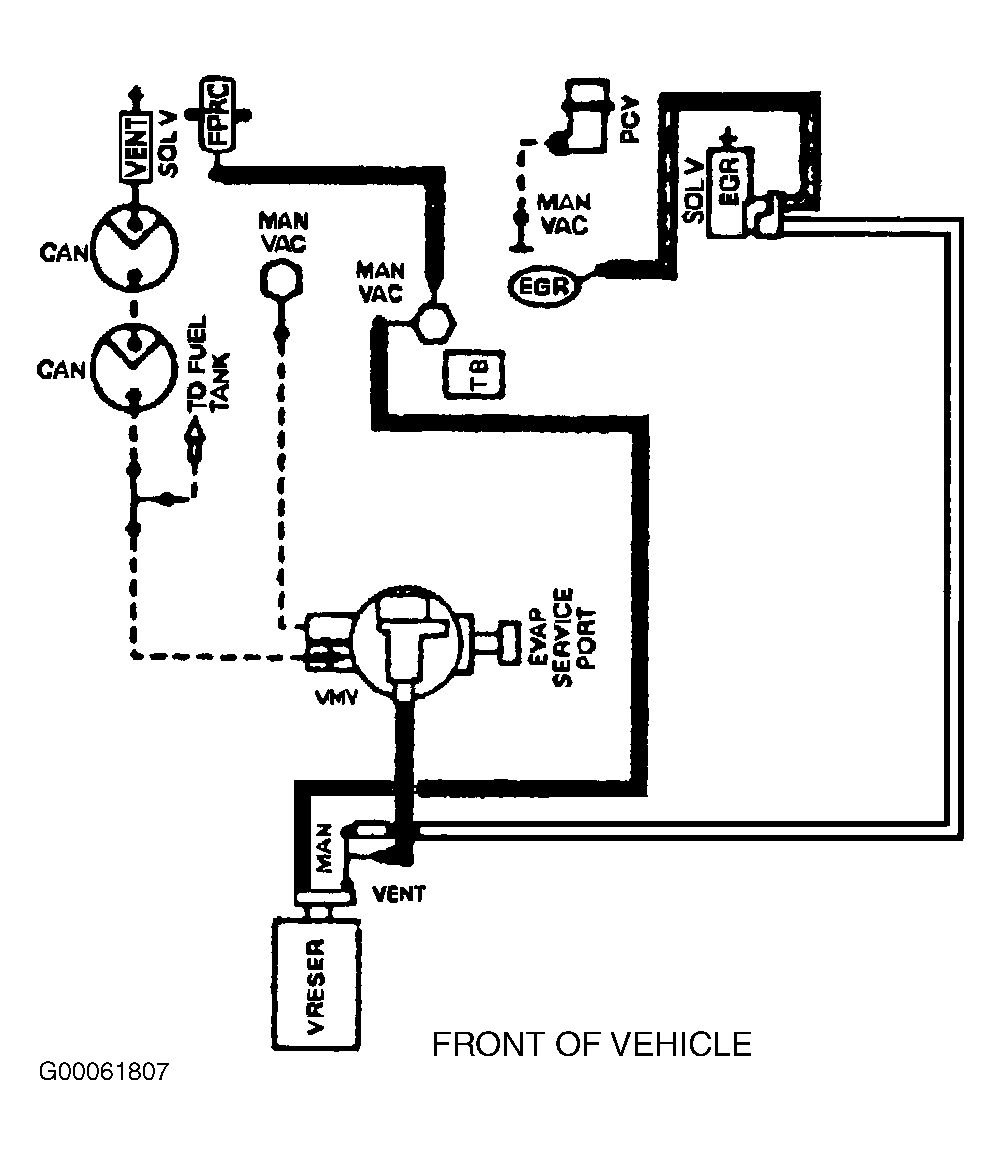

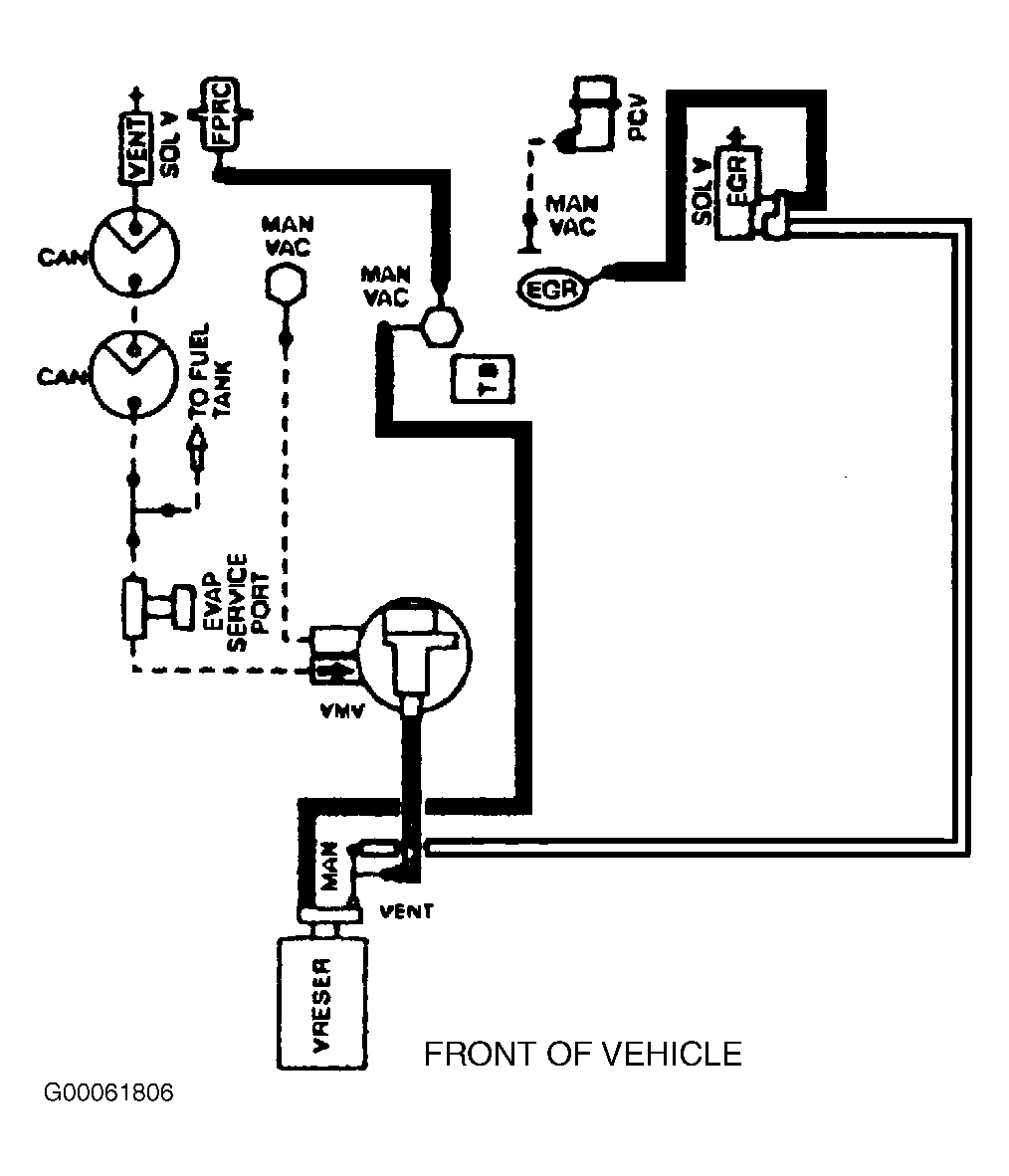

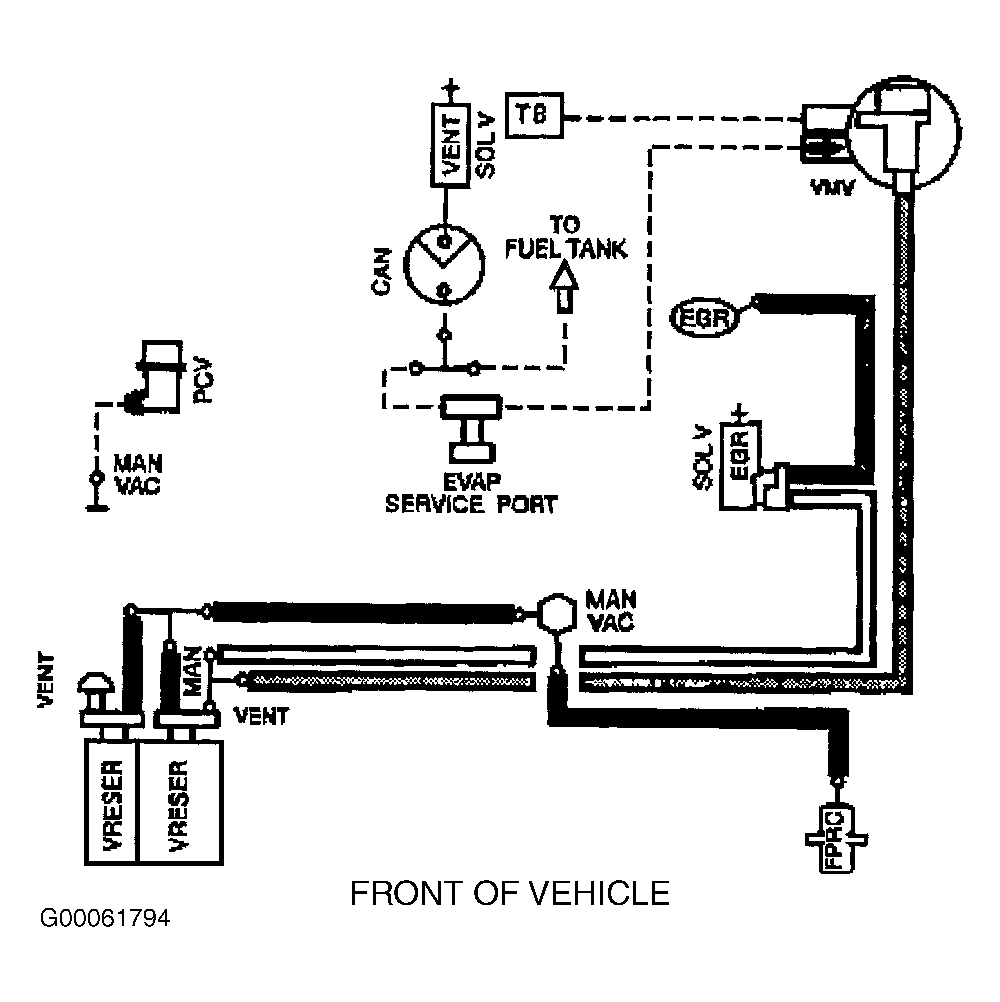

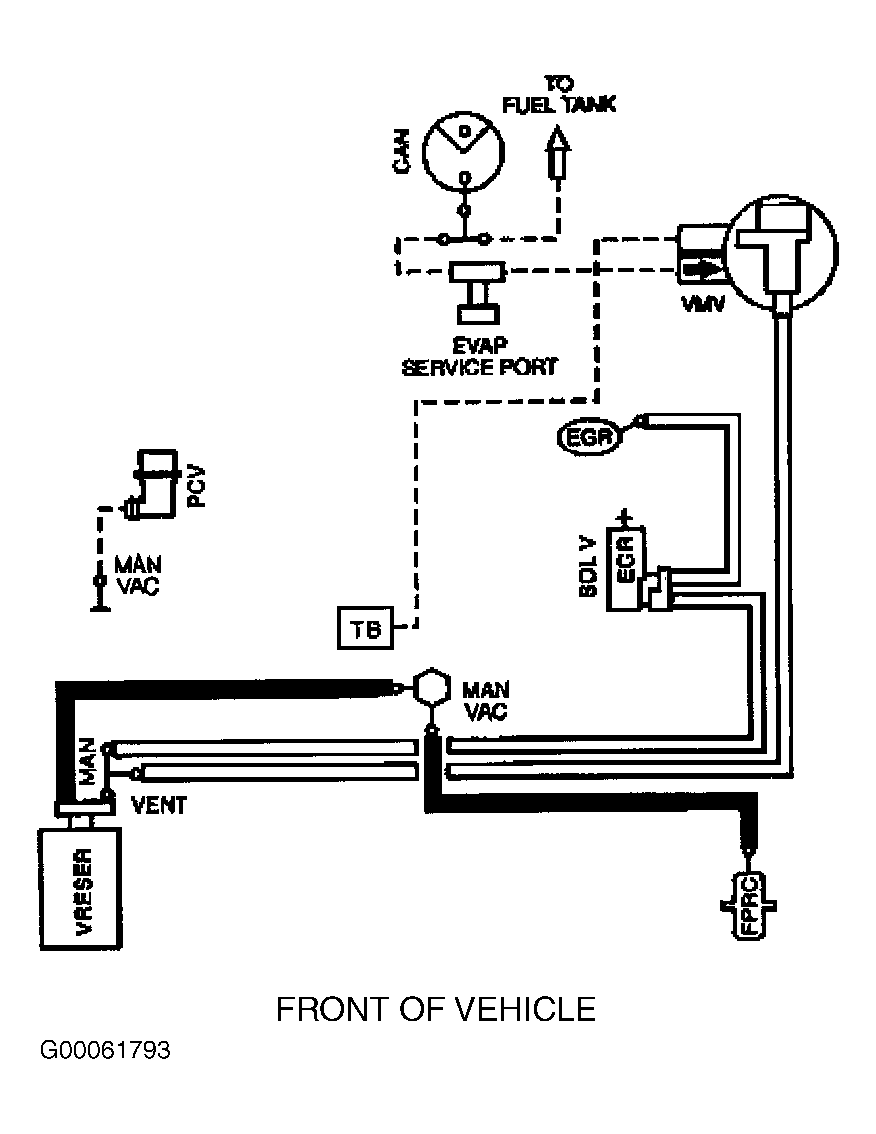

7-56J-R05, 7-56J-R10, 7-56T-R05, 7-56T-R10					Fig 2
4.0L

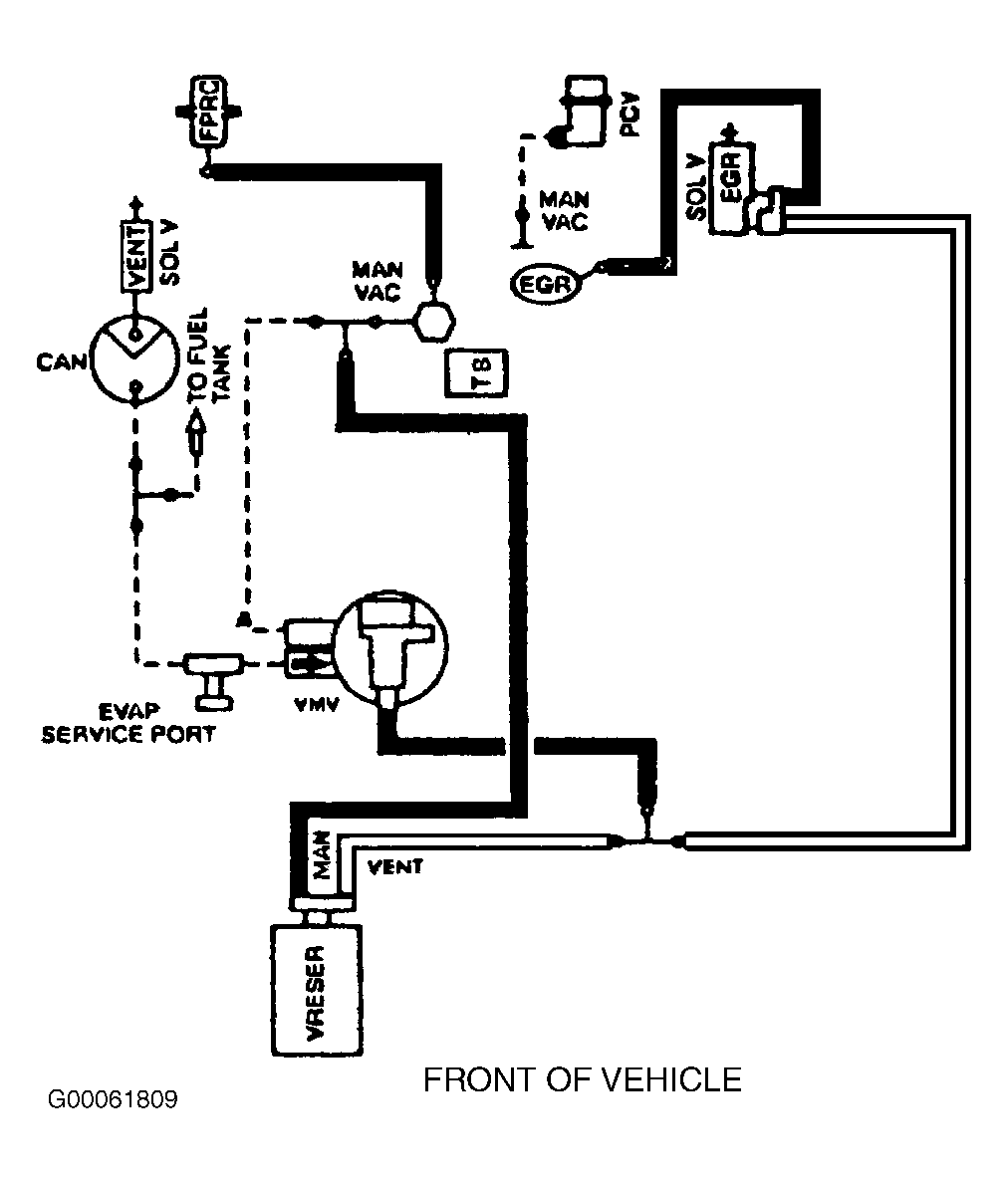

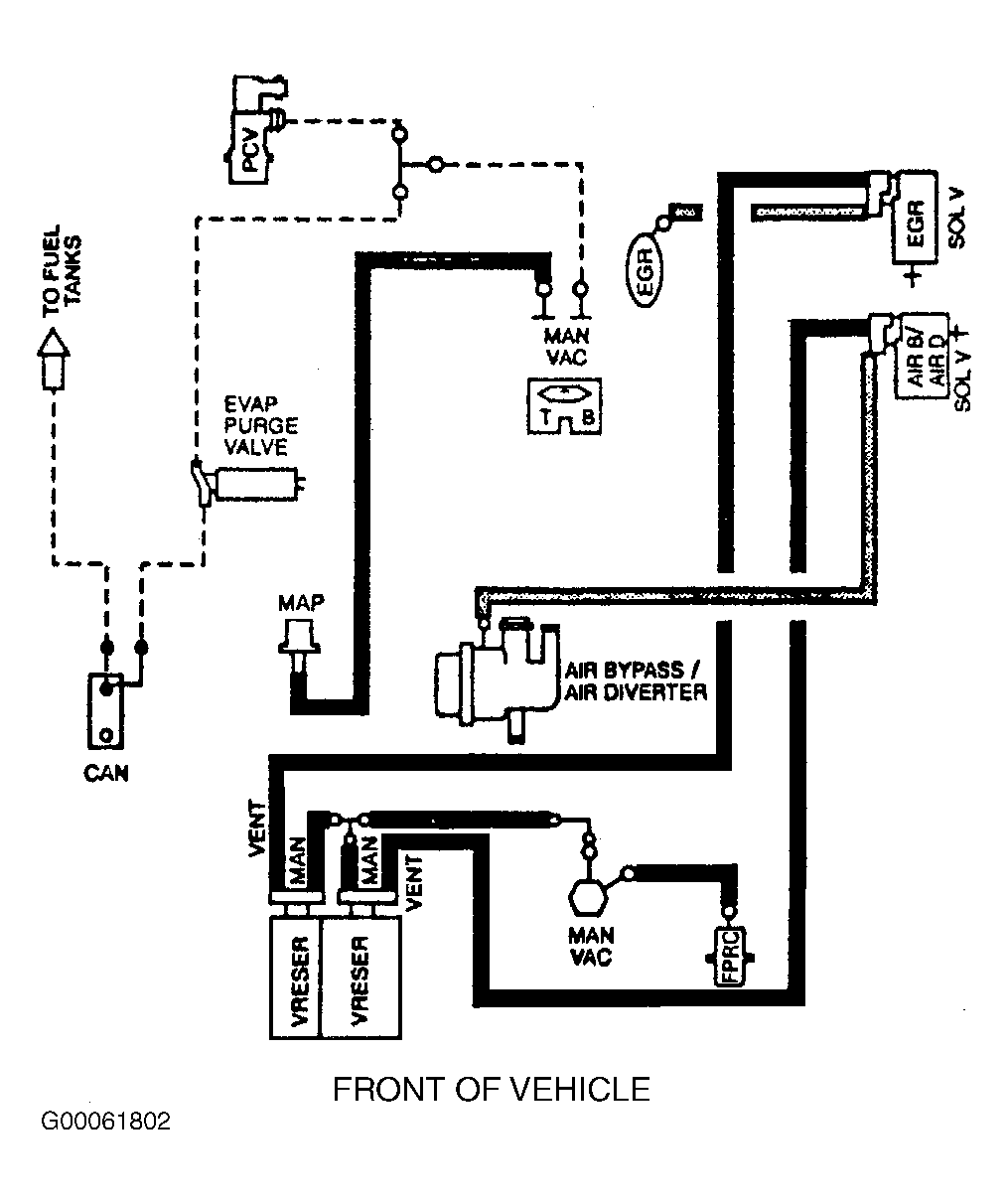

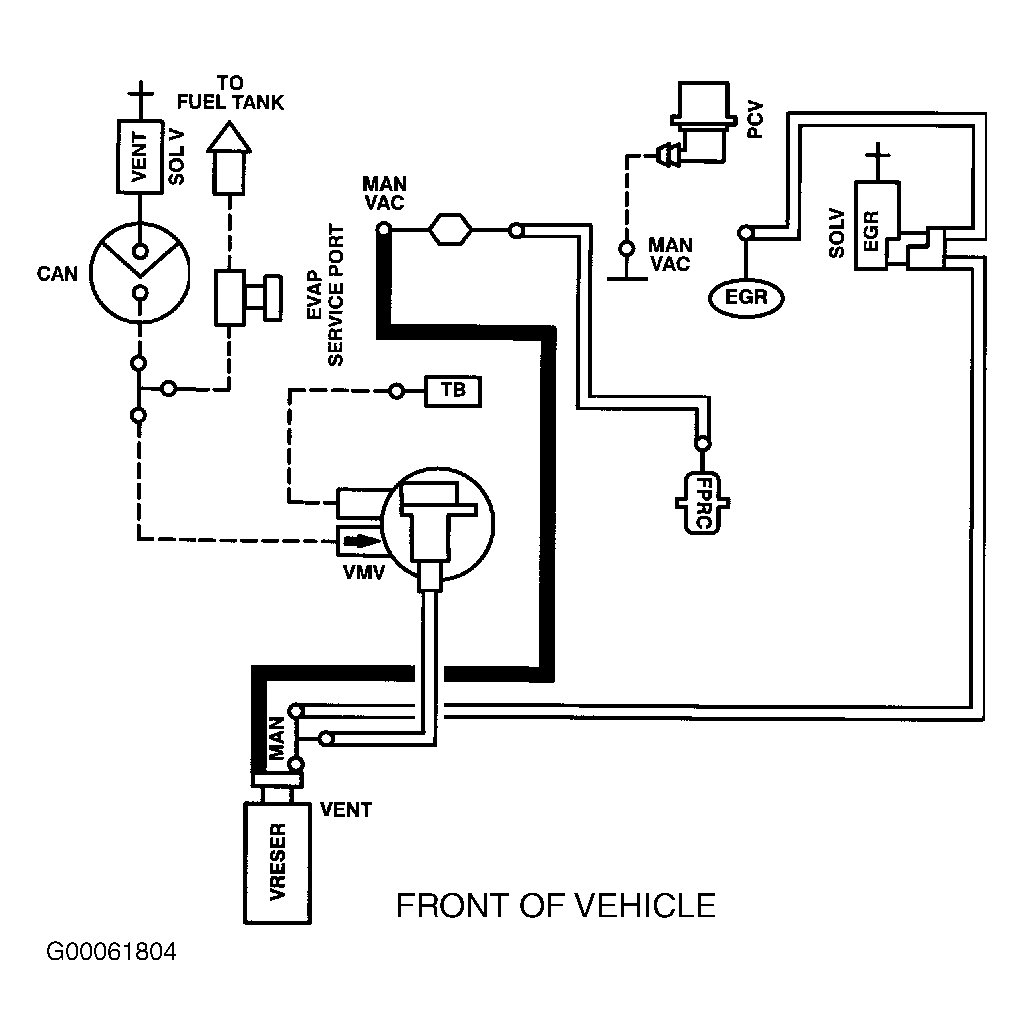

7-58J-R05, 7-58J-R10, 7-58K-R05, 7-58K-R10, 7-58N-R05, 7-58N-R10, 7-58Q-R05, 7-58Q-R10					Fig 3
Expedition
4.6L

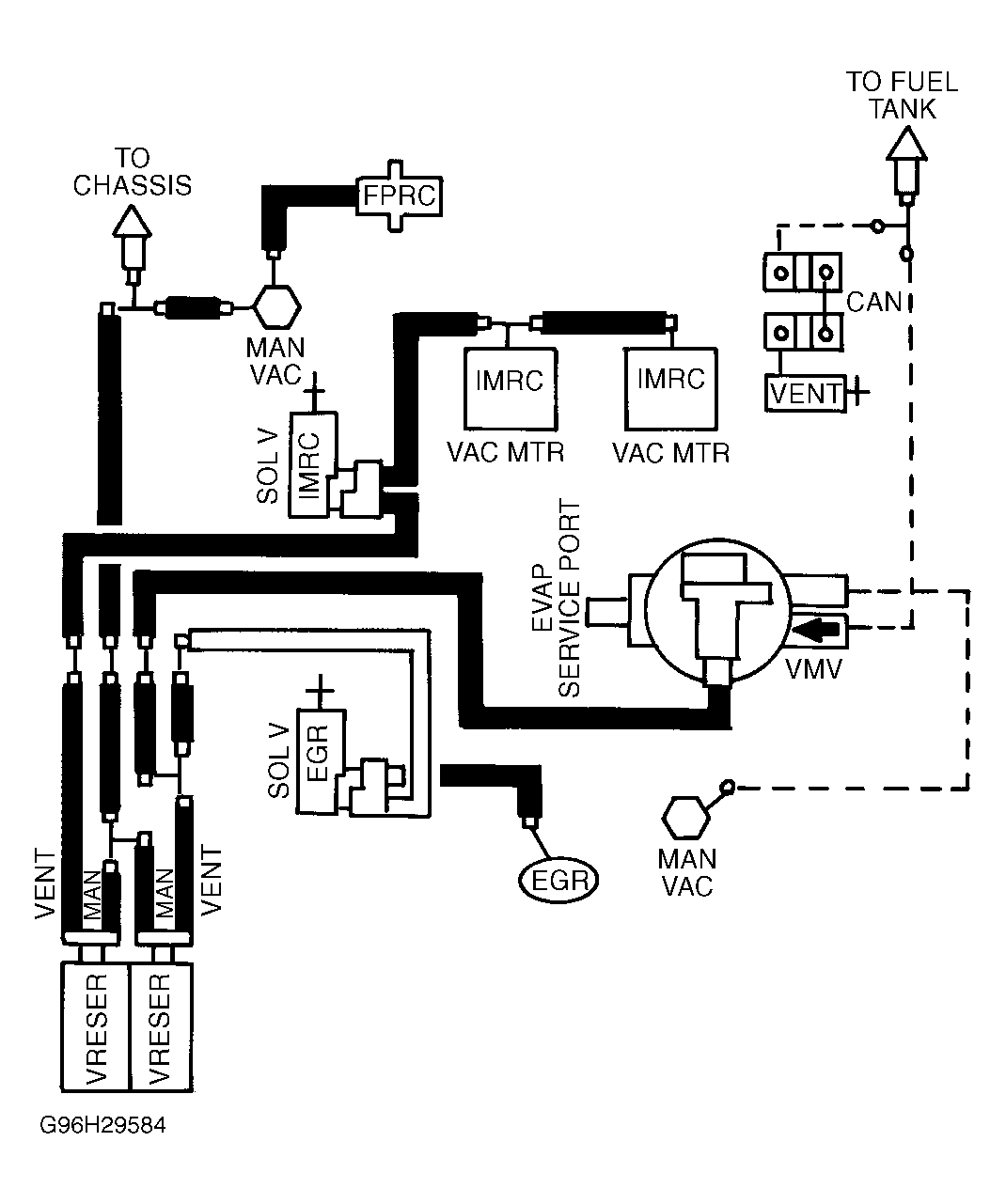

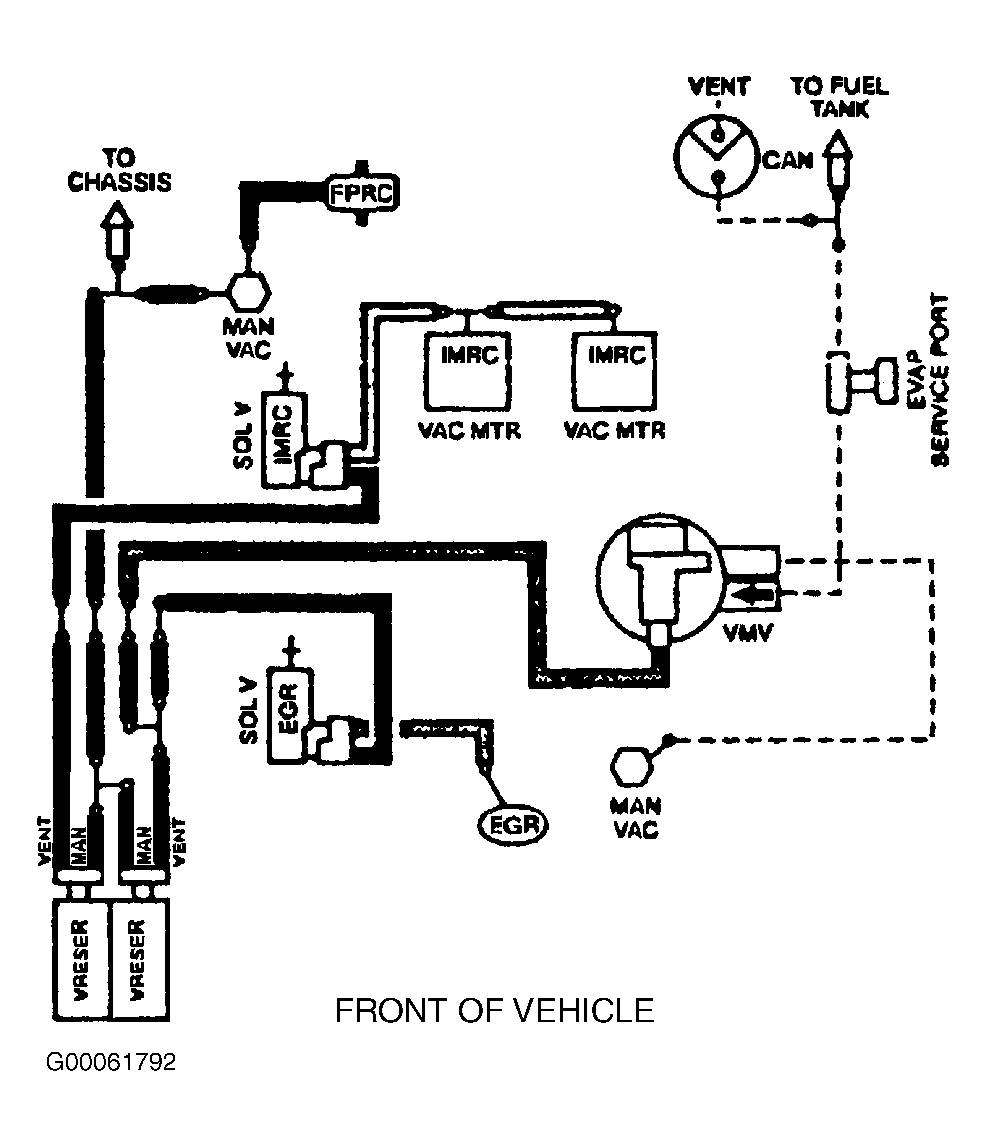

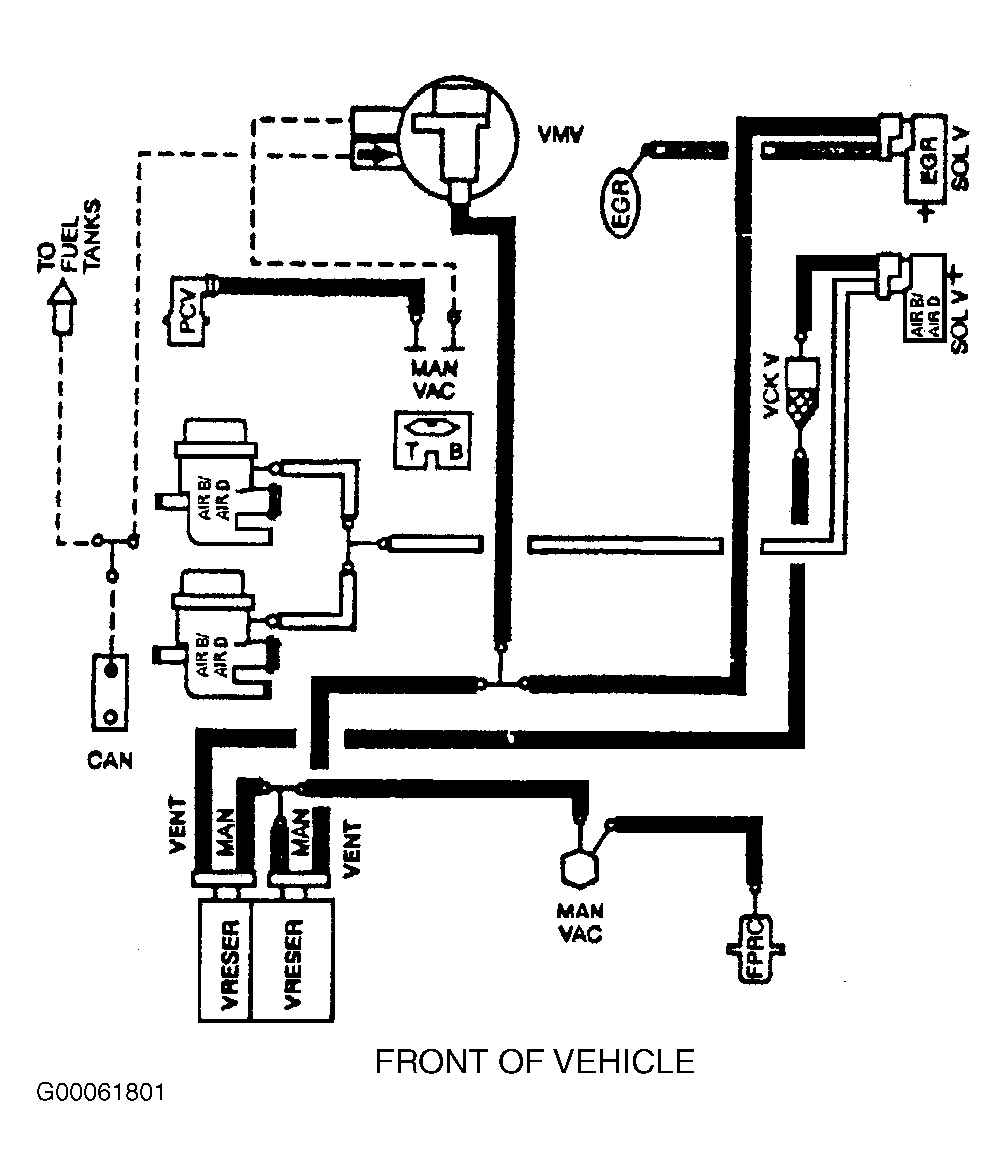

7-48J-R05, 7-48J-R10, 7-48U-R05, 7-48U-R10					Fig 4
5.4L

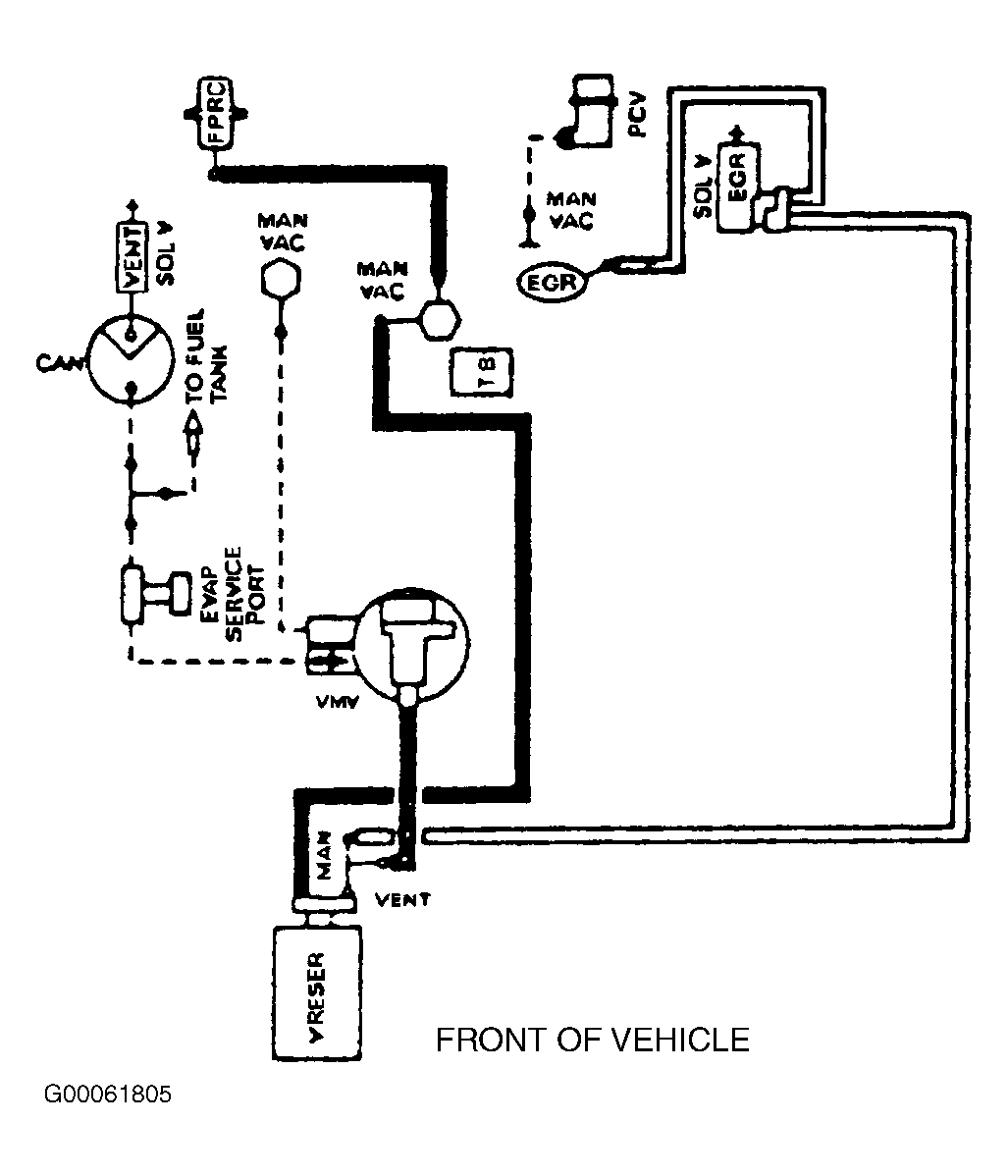

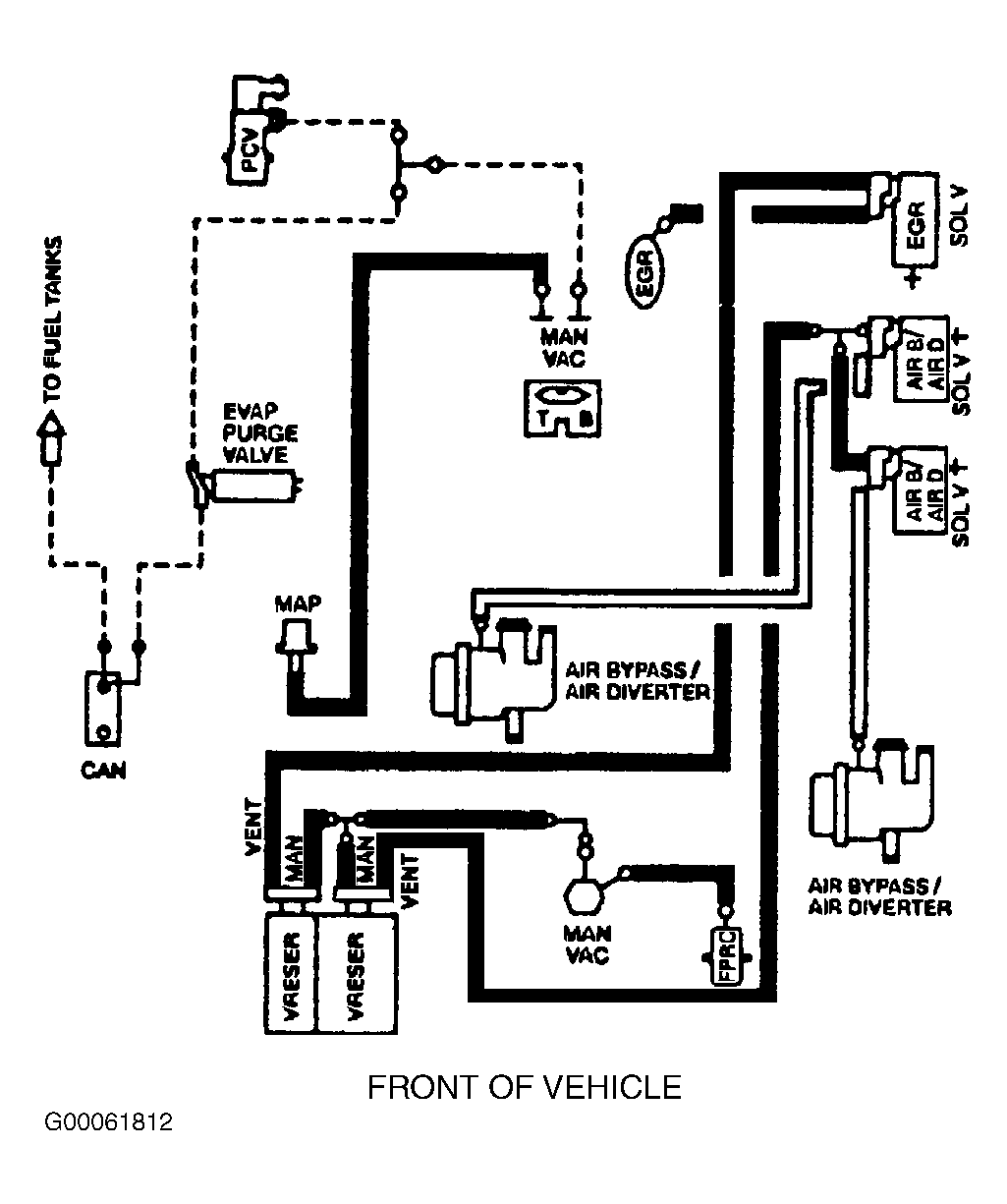

7-46F-R07, 7-46F-R10, 7-46U-R07, 7-46U-R10					Fig 5
Explorer
4.0L - Except SOHC

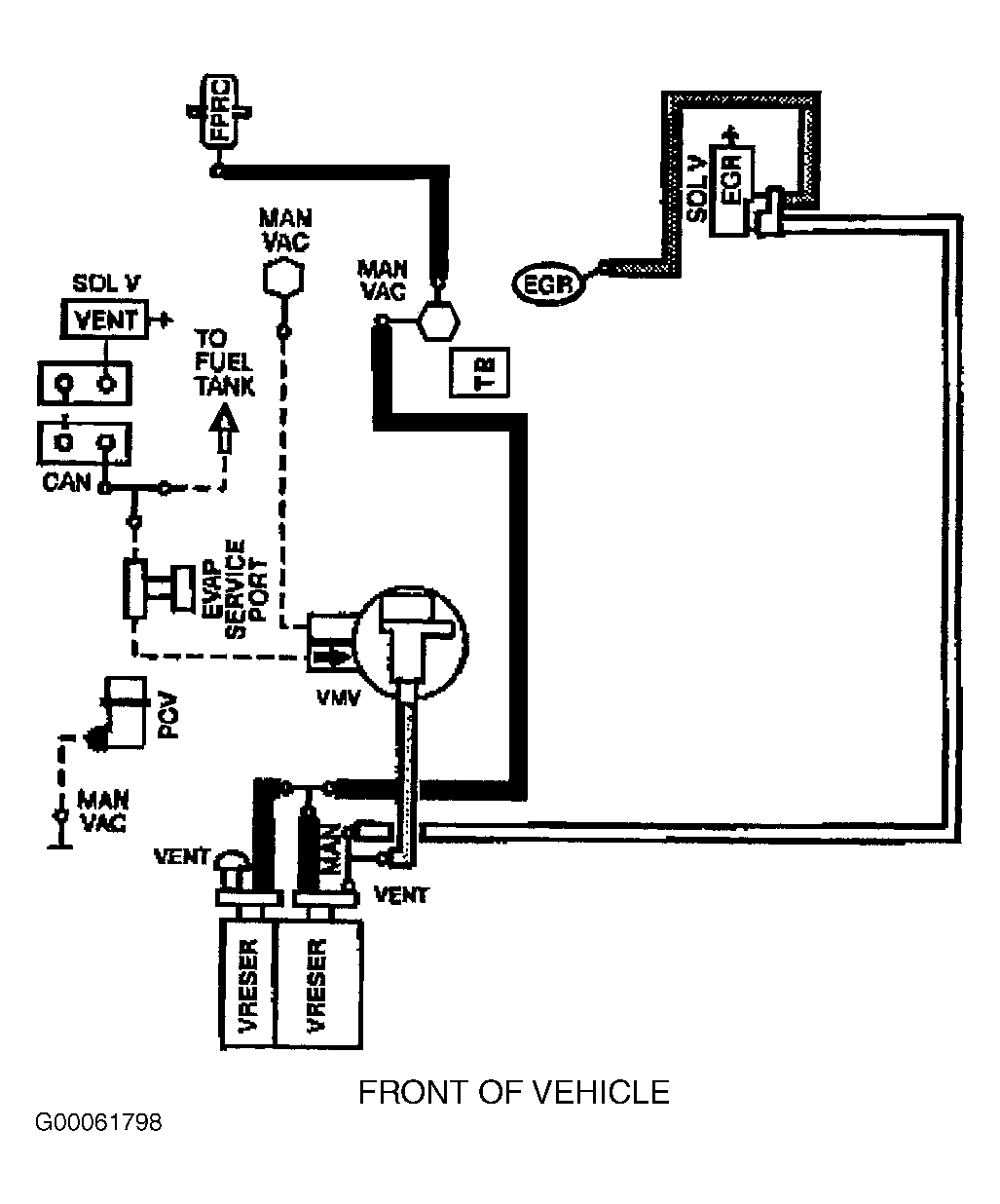

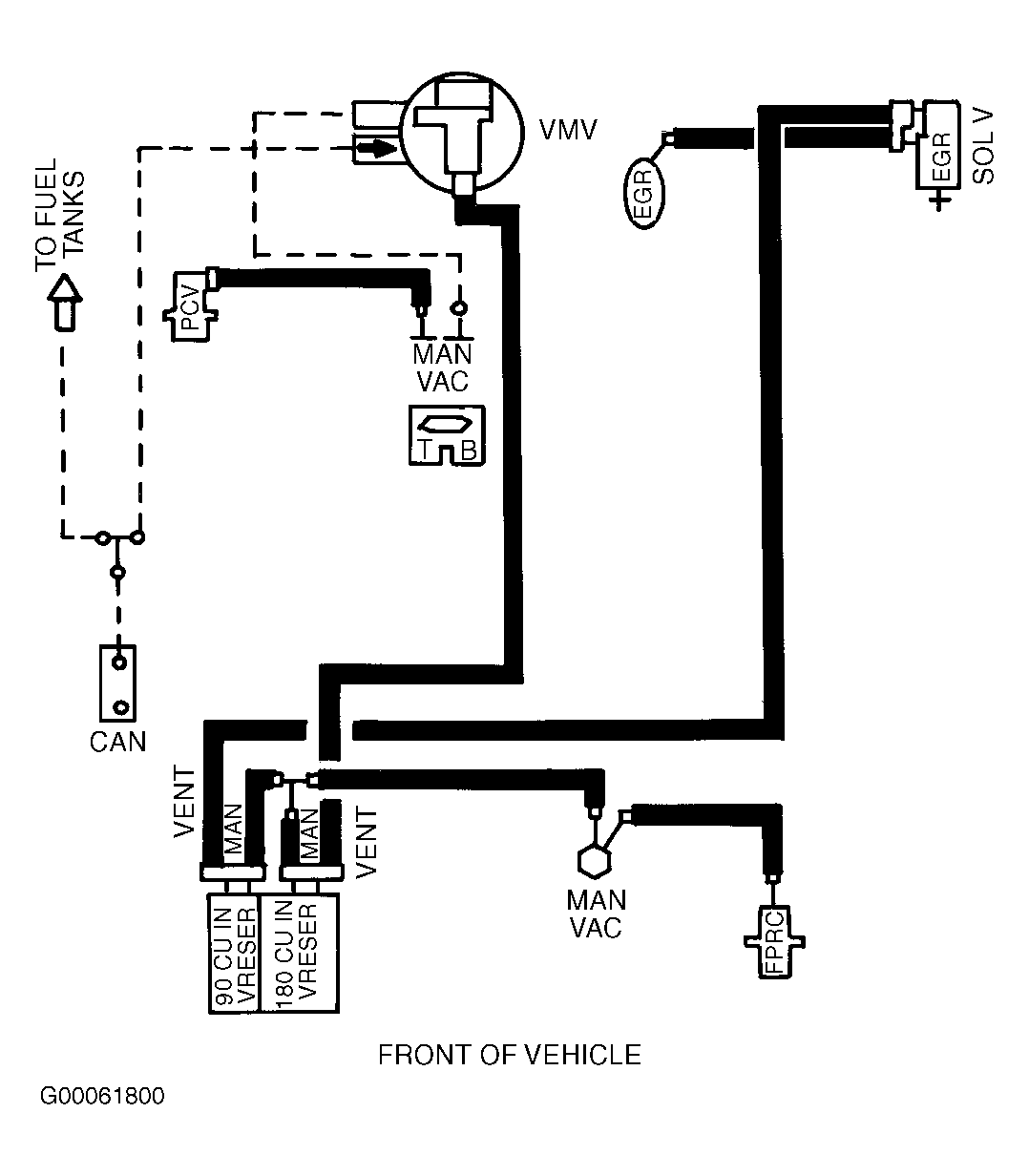

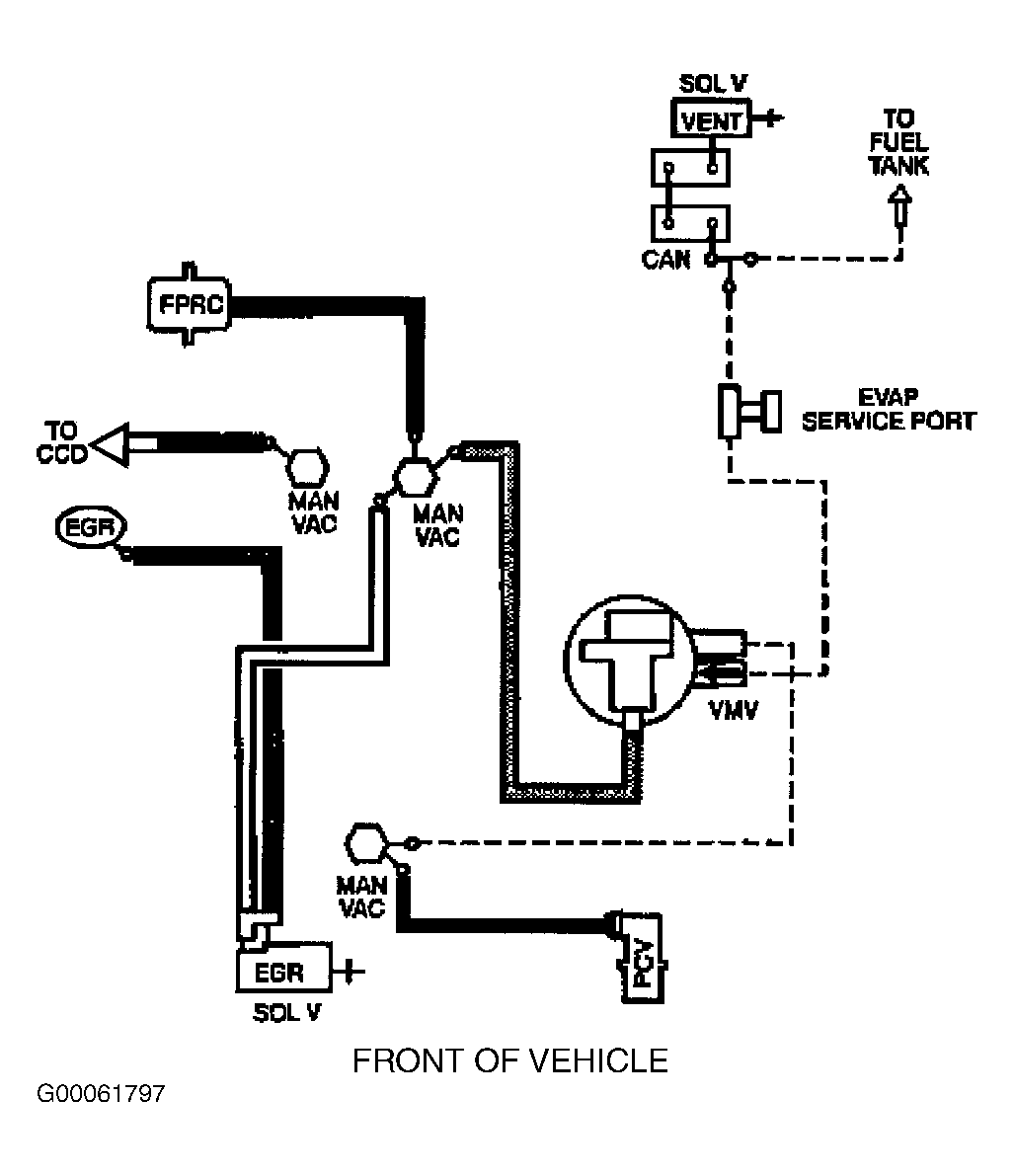

7-57B-R05, 7-57B-R10, 7-57R-R05, 7-57R-R10, 7-58B-R05, 7-58B-R10, 7-58R-R05					Fig 6
4.0L SOHC

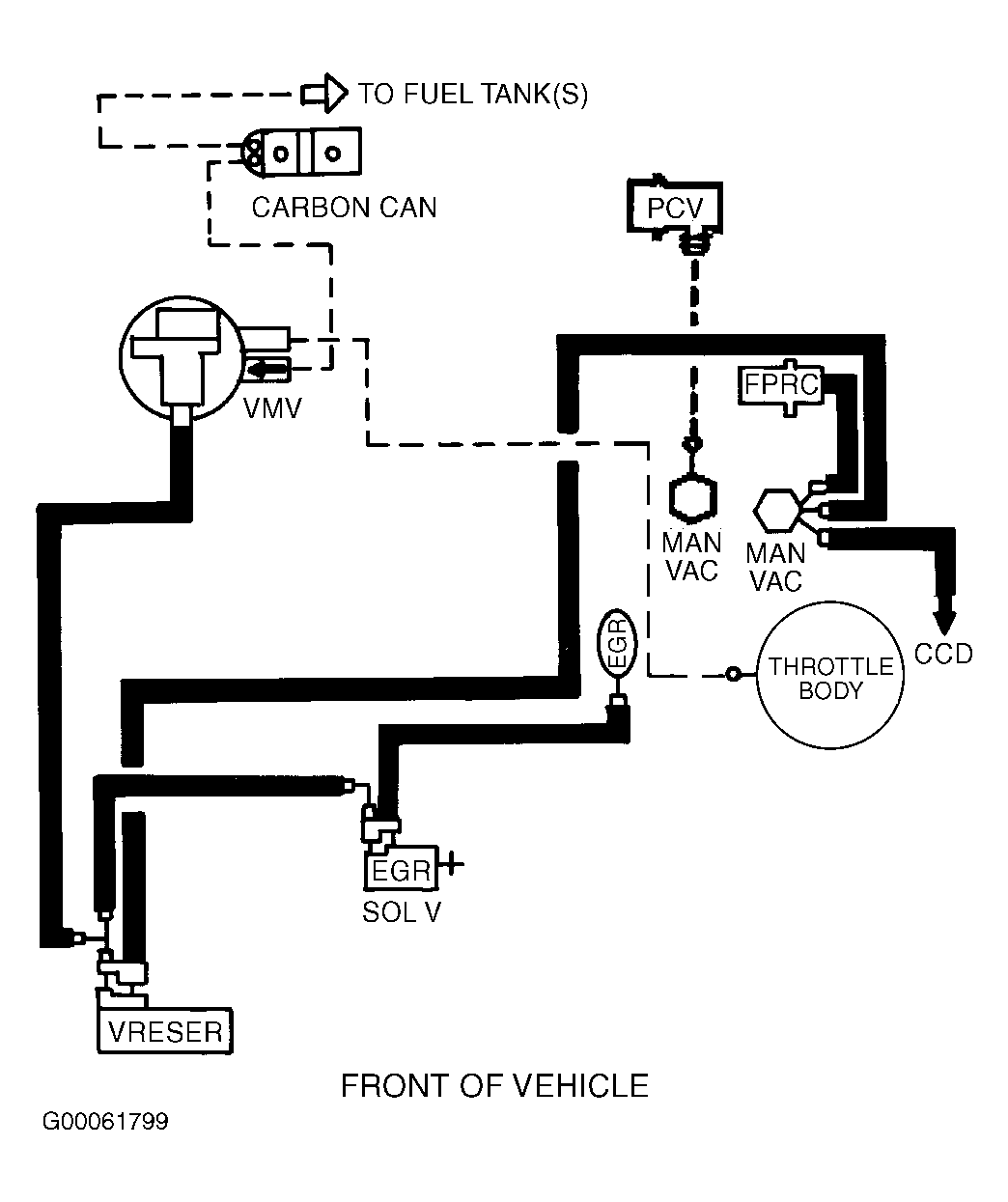

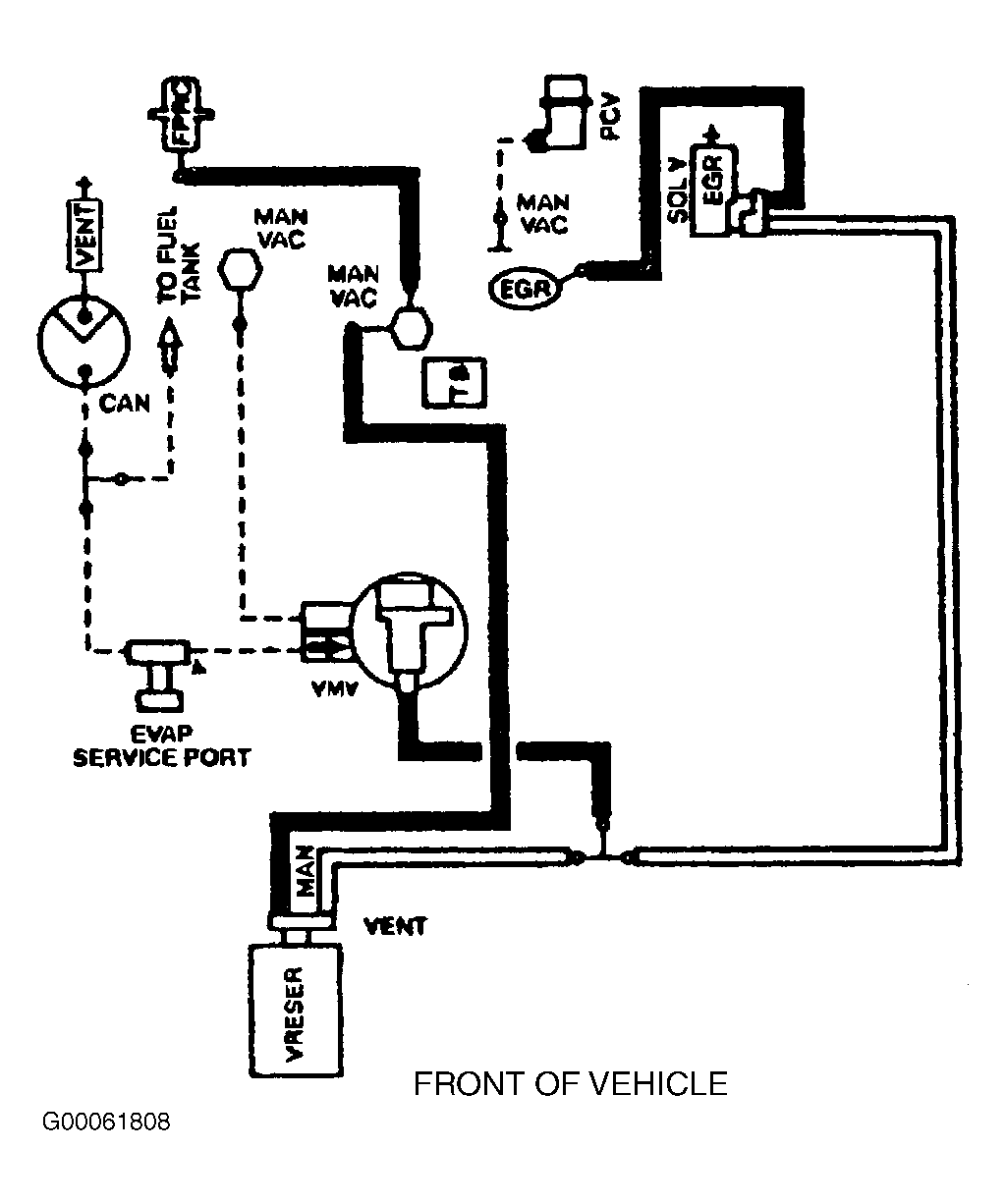

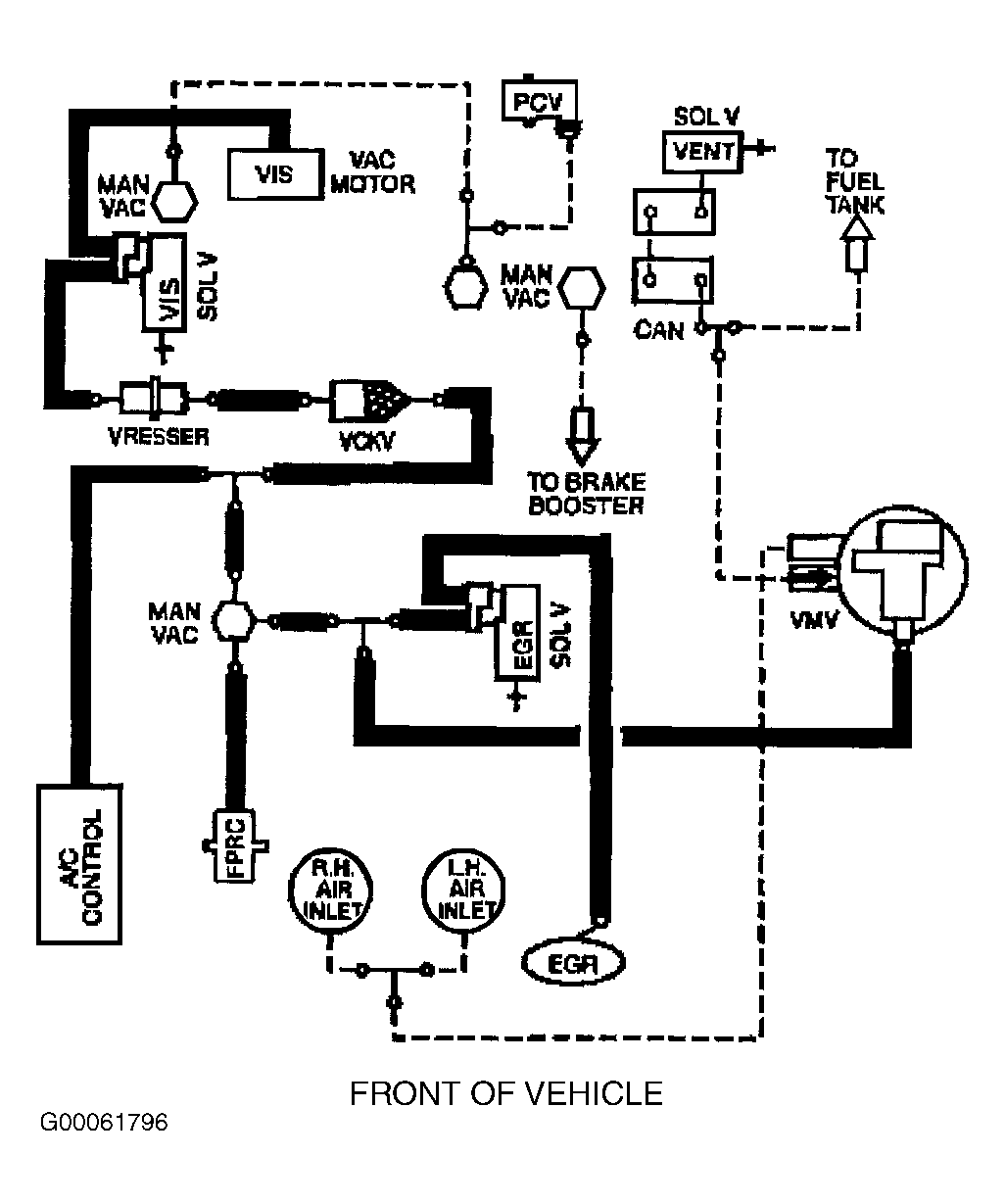

7-58C-R06, 7-58C-R10, 7-58C-R11, 7-58V-R06, 7-58V-R10, 7-58V-R11					Fig 7
5.0L

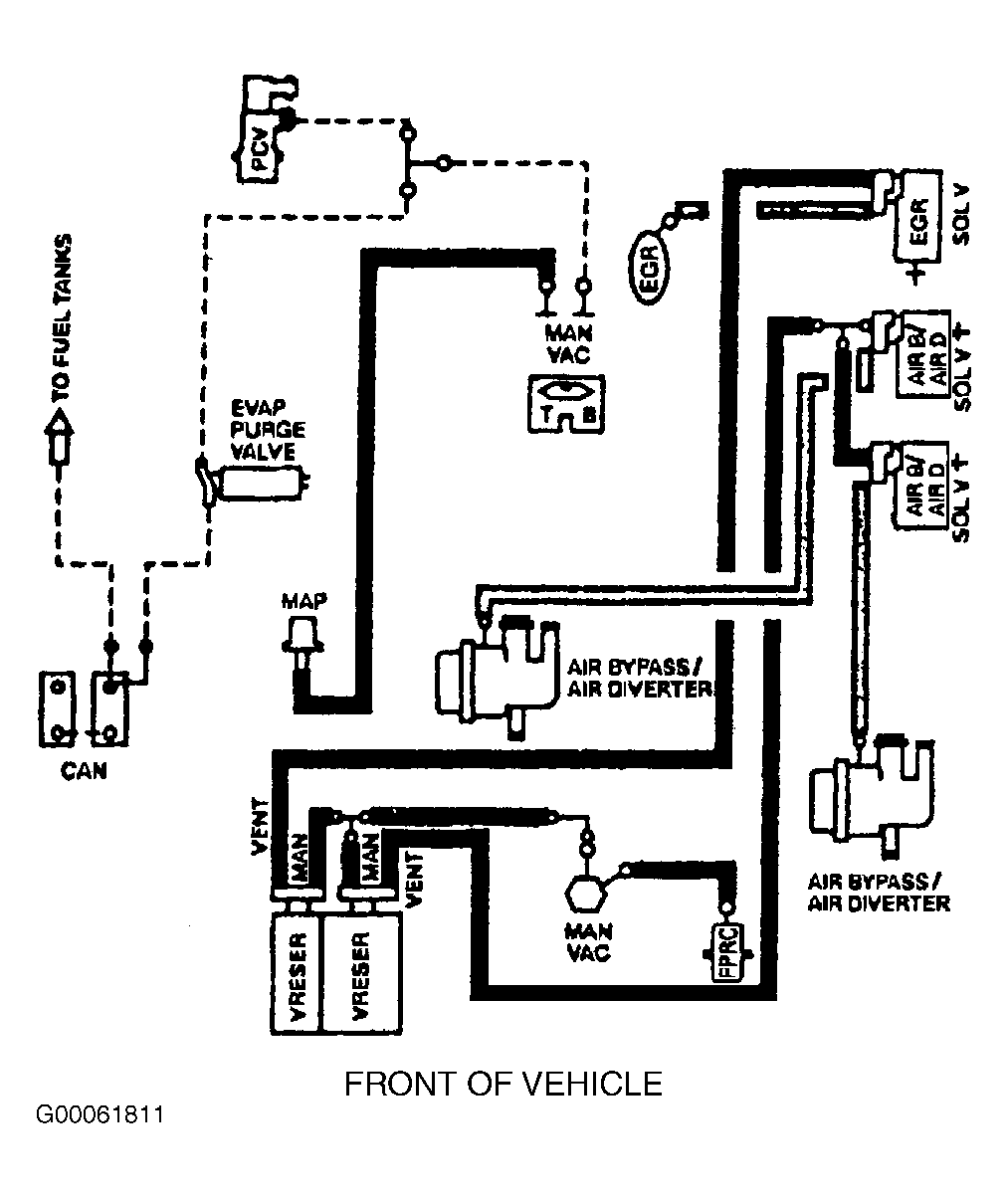

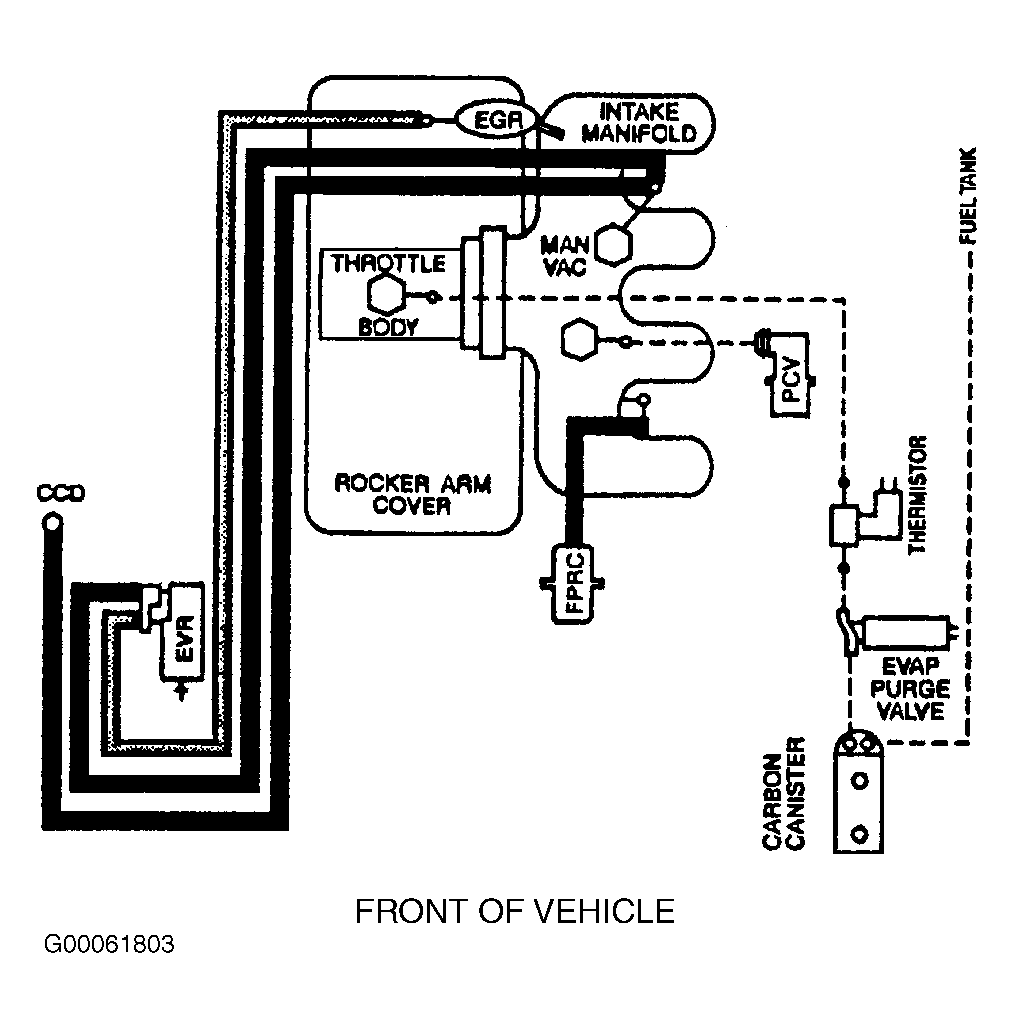

6-54G-R12, 7-54G-R10, 7-54G-R11, 7-54G-R12					Fig 8
F-150
4.2L

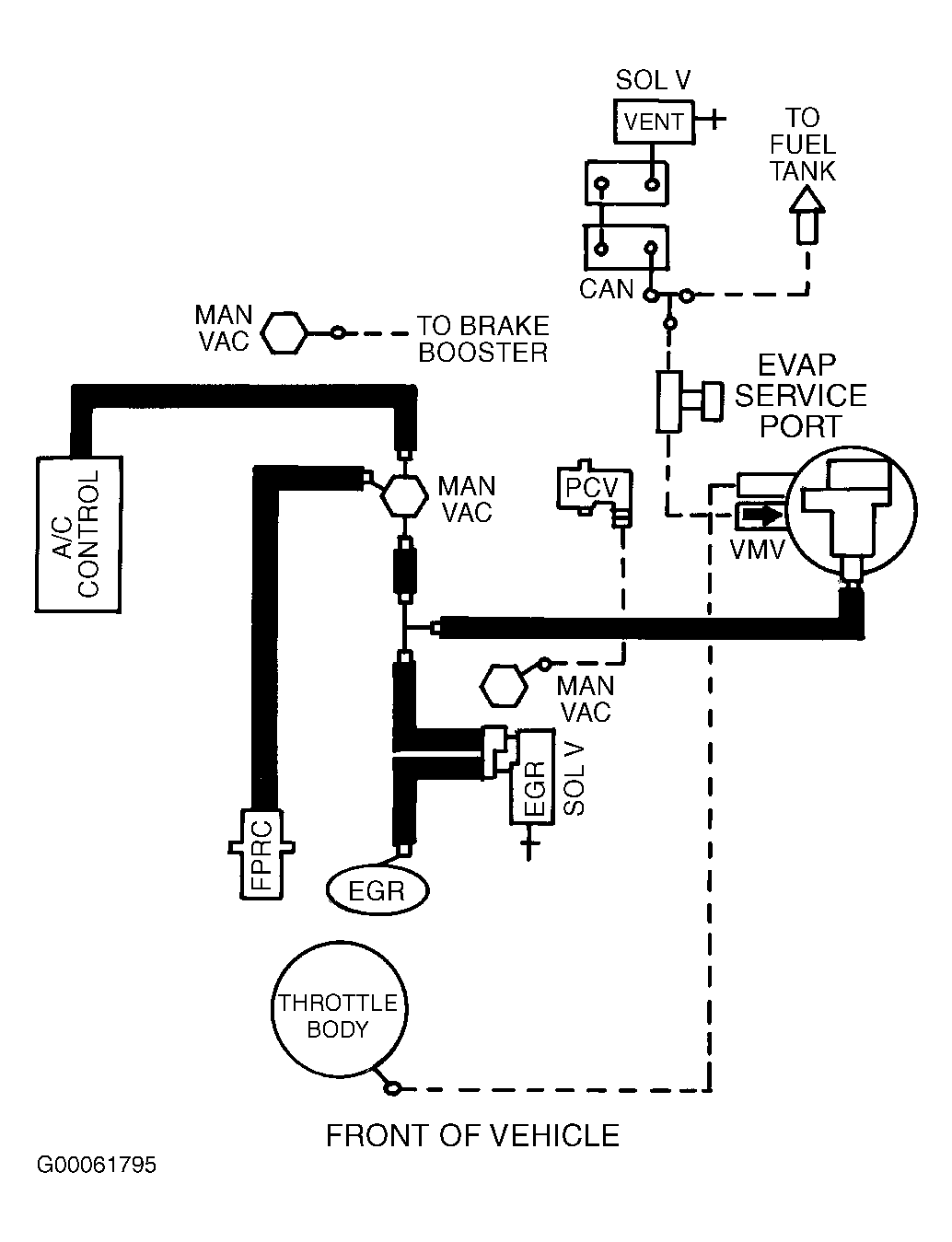

6-43E-R07, 6-43E-R10, 6-43F-R07, 6-43F-R10, 6-43R-R07, 6-43R-R10, 6-43S-R07, 6-43S-R10, 6-44E-R07, 6-44E-R10, 6-44F-R07, 6-44F-R10, 6-44R-R07, 6-44R-R10, 6-44S-R07, 6-44S-R10, 7-43E-R10, 7-43E-R11, 7-43F-R10, 7-43F-R11, 7-43R-10, 7-43R-R11, 7-43S-R10, 7-43S-R11, 7-44E-R10, 7-44E-R11, 7-44F-R10, 7-44F-R11, 7-44R-R10, 7-44R-R11, 7-44S-R10, 7-44S-R11					Fig 9
4.6L
6-48E-R08, 6-48S-R08, 7-47Q-R11, 7-47R-R11, 7-48C-R11, 7-48D-R11, 7-48E-R11, 7-48Q-R11, 7-48R-R11, 7-48S-R11					Fig 10
5.4L
7-46D-R07, 7-46R-R07					Fig 11
F-250
4.6L
7-47F-R05, 7-47G-R05, 7-47S-R05, 7-47T-R05, 7-48G-R05, 7-48P-R05, 7-48T-R05					Fig 10
5.4L
7-46E-R07, 7-46T-R07					Fig 11
5.8L
Over 8500 GVWR
California
6-76T-R11					Fig 12
Canada & 49-States
6-75A-R05, 7-76A-R00					Fig 13
7.3L Turbo Diesel
Information Not Available					Fig 14
7.5L
Medium-Duty
California
6-97Q-R06, 6-98Q-R10					Fig 15
Heavy-Duty
		California
7-97P-R00, 7-98P-R00					Fig 16
Canada & 49-States
6-97A-R00, 6-98A-R00					Fig 17
F-350
5.8L
California
6-76S-R11, 6-76T-R11					Fig 12
Canada & 49-States
6-75A-R05, 7-76A-R00					Fig 13
7.3L Turbo Diesel
Information Not Available					Fig 14
7.5L
Medium-Duty
California
6-97Q-R06, 6-98Q-R10					Fig 15
Heavy-Duty
California
7-97P-R00, 7-98P-R00					Fig 16
Canada & 49-States
6-97A-R00, 6-98A-R00					Fig 17
Mountaineer
5.0L
6-54G-R11, 6-54G-R12, 7-54G-R10, 7-54G-R11, 7-54G-R12					Fig 8
Ranger
2.3L
7-49A-R06, 7-49T-R06, 7-50A-R06, 7-50T-R06					Fig 18
3.0L
7-55F-R05, 7-55F-R10, 7-55H-R05, 7-55H-R10, 7-55R-R05, 7-55R-R10, 7-55S-R05, 7-55S-R10, 7-56F-R05, 7-56F-R10					Fig 2
4.0L

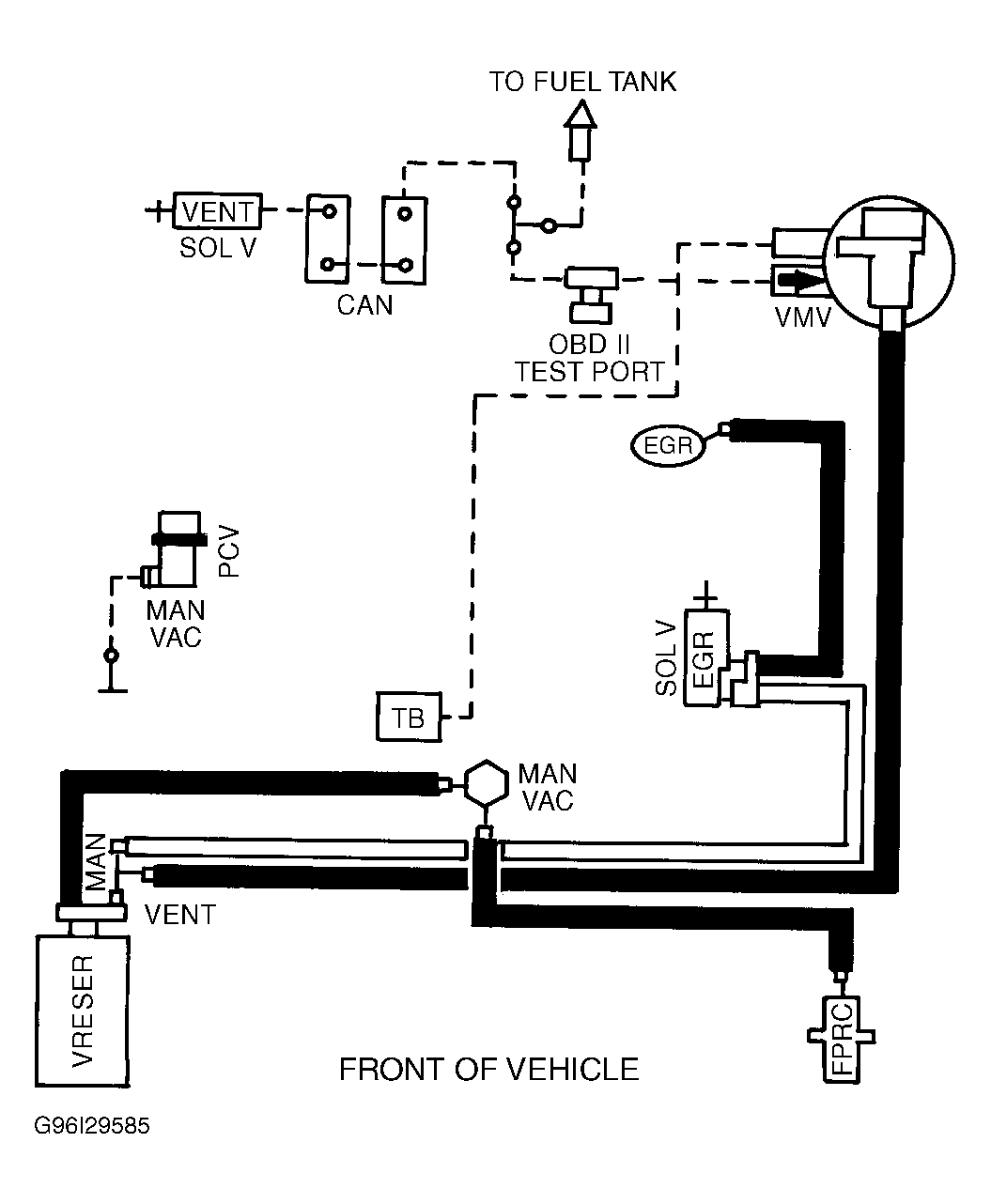

7-57F-R05, 7-57F-R10, 7-57H-R05, 7-57H-R10, 7-57S-R05, 7-57S-R10, 7-57T-R05, 7-57T-R10, 7-58F-R05, 7-58F-R10, 7-58H-R05, 7-58H-R10, 7-58S-R05, 7-58S-R10, 7-58T-R05, 7-58T-R10					Fig 19
Super Duty
Pickup
7.5L
6-97B-R00 - Codes SGJ, SKL, STT & SZB					Fig 20
6-97B-R00 - Codes SPD, SPS, SUA & SYC & 6-98B-R00					Fig 21
Van
	6.8L
7-96J-R06					Fig 22
Van
4.2L
7-44J-R06, 7-44J-R10, 7-44K-R06, 7-44K-R10, 7-44L-R06, 7-44L-R10, 7-44M-R06, 7-44M-R10, 7-44T-R06, 7-44T-R10, 7-44U-R06, 7-44U-R10					Fig 23
4.6L
7-48M-R05, 7-48M-R10, 7-48W-R05, 7-48W-R10, 7-48W-R11					Fig 24
5.4L
7-46K-R06, 7-46K-R10, 7-46Q-R06, 7-46Q-R10, 7-74C-R07, 7-74S-R07, 7-74U-R06, 7-74U-R10, 7-74V-R06, 7-74V-R10					Fig 25
7-74T-R07 - Code SFS					Fig 26
7-74T-R07 - Code SJF					Fig 27
6.8L
7-96E-R06, 7-96W-R06					Fig 28
7-96T-R06, 7-96T-R10					Fig 29
7-96X-R06					Fig 22
Windstar
3.8L
6-62J-R11, 6-62S-R11					Fig 30
