Firing Order & Timing Marks

Fig 1: Identifying Firing Order & Timing Marks (4.0L - VIN "E")
G00217837

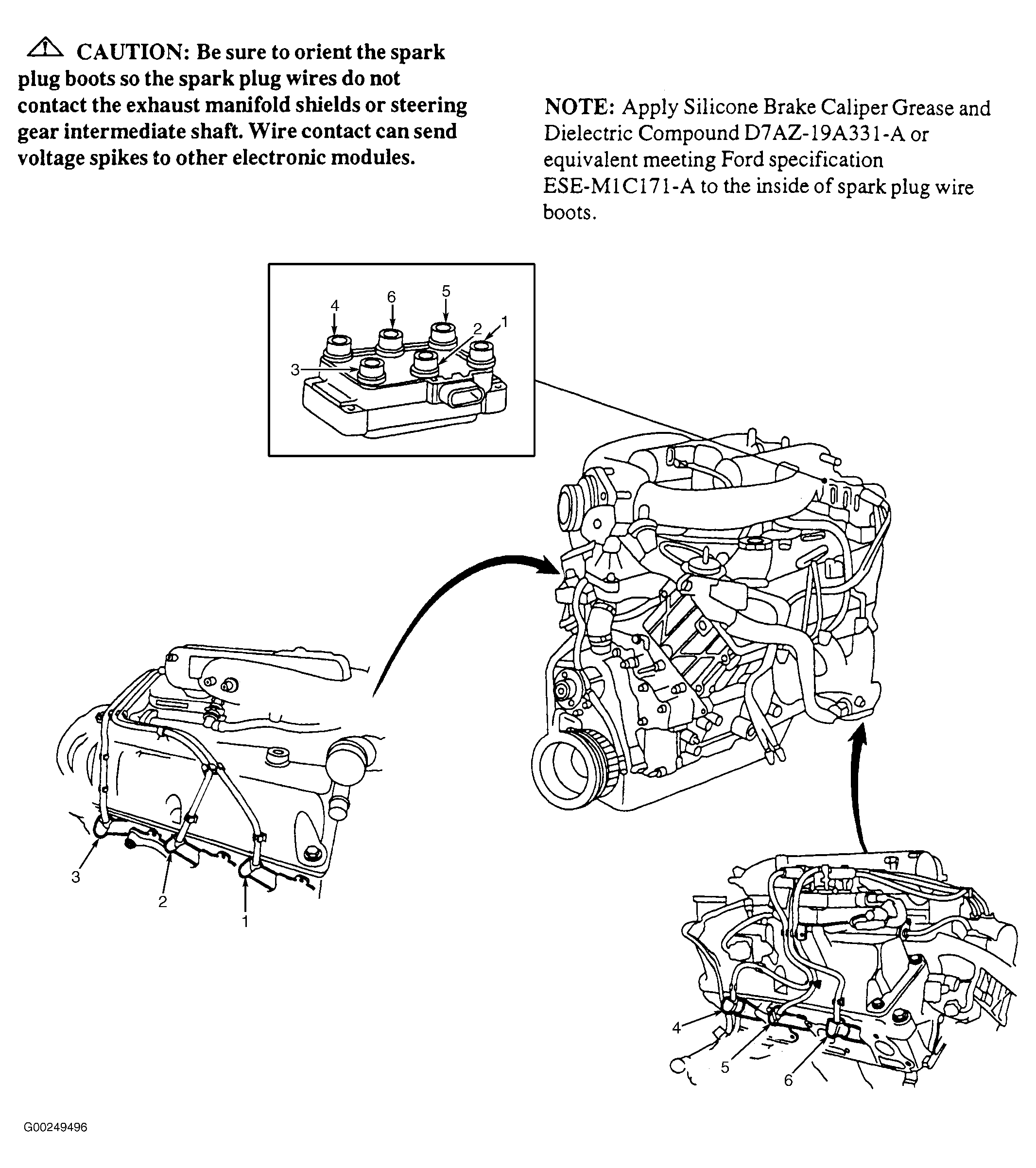

Fig 2: Identifying Spark Plug Wire Routing (4.0L - VIN "E")
G00249496Courtesy of FORD MOTOR CO.
Fig 3: Identifying Firing Order & Timing Marks (4.0L - VIN "X")
G91F13438
Fig 4: Identifying Spark Plug Wire Routing (4.0L - VIN "X")
G00249497Courtesy of FORD MOTOR CO.
