Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|

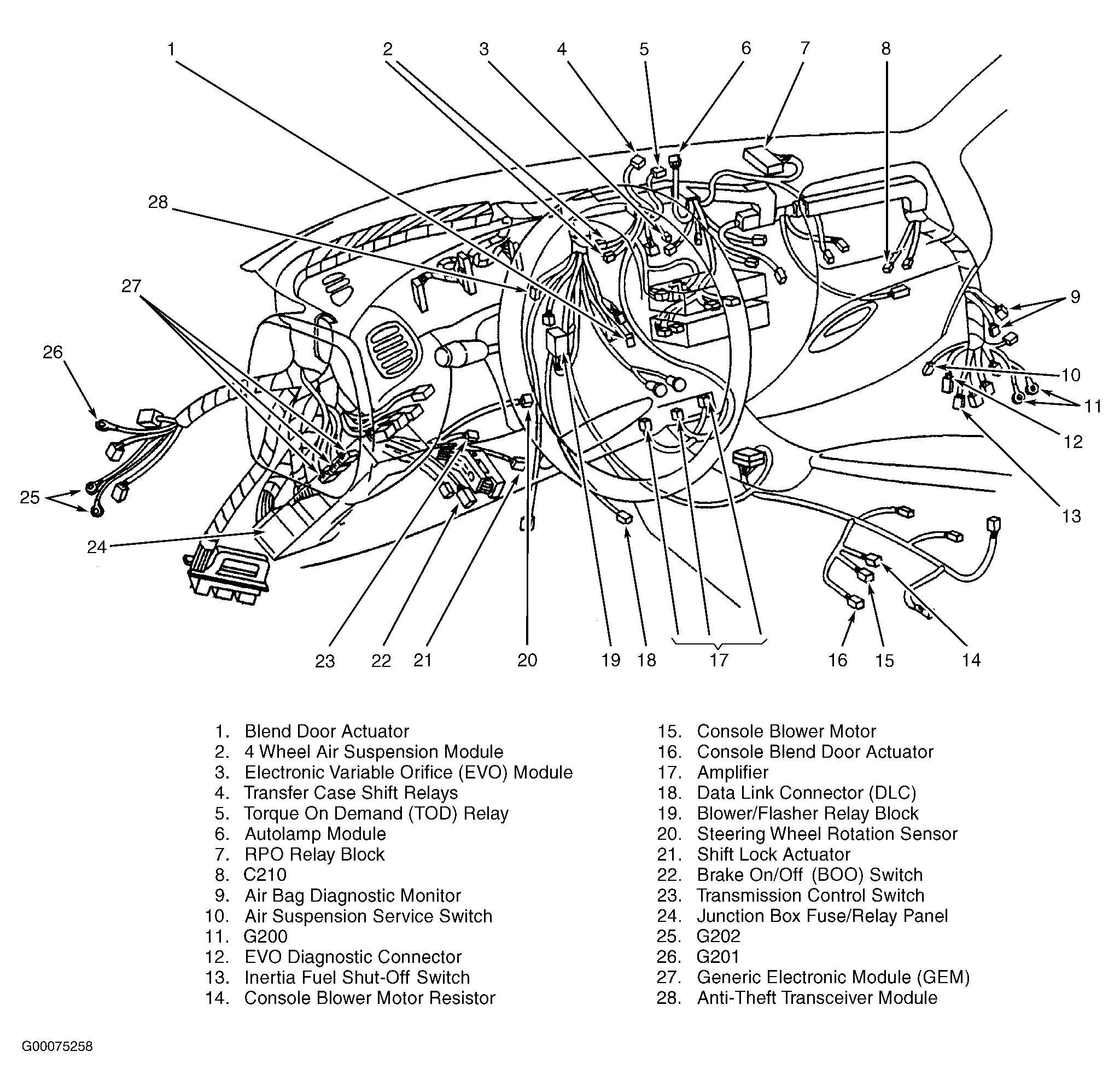

| Air Bag Diagnostic Monitor | Behind right side of dash. See Figure . |
| Anti-Theft Transceiver Module | Behind center of dash. See Figure . |
| Autolamp Module | Behind center of dash. See Figure . |

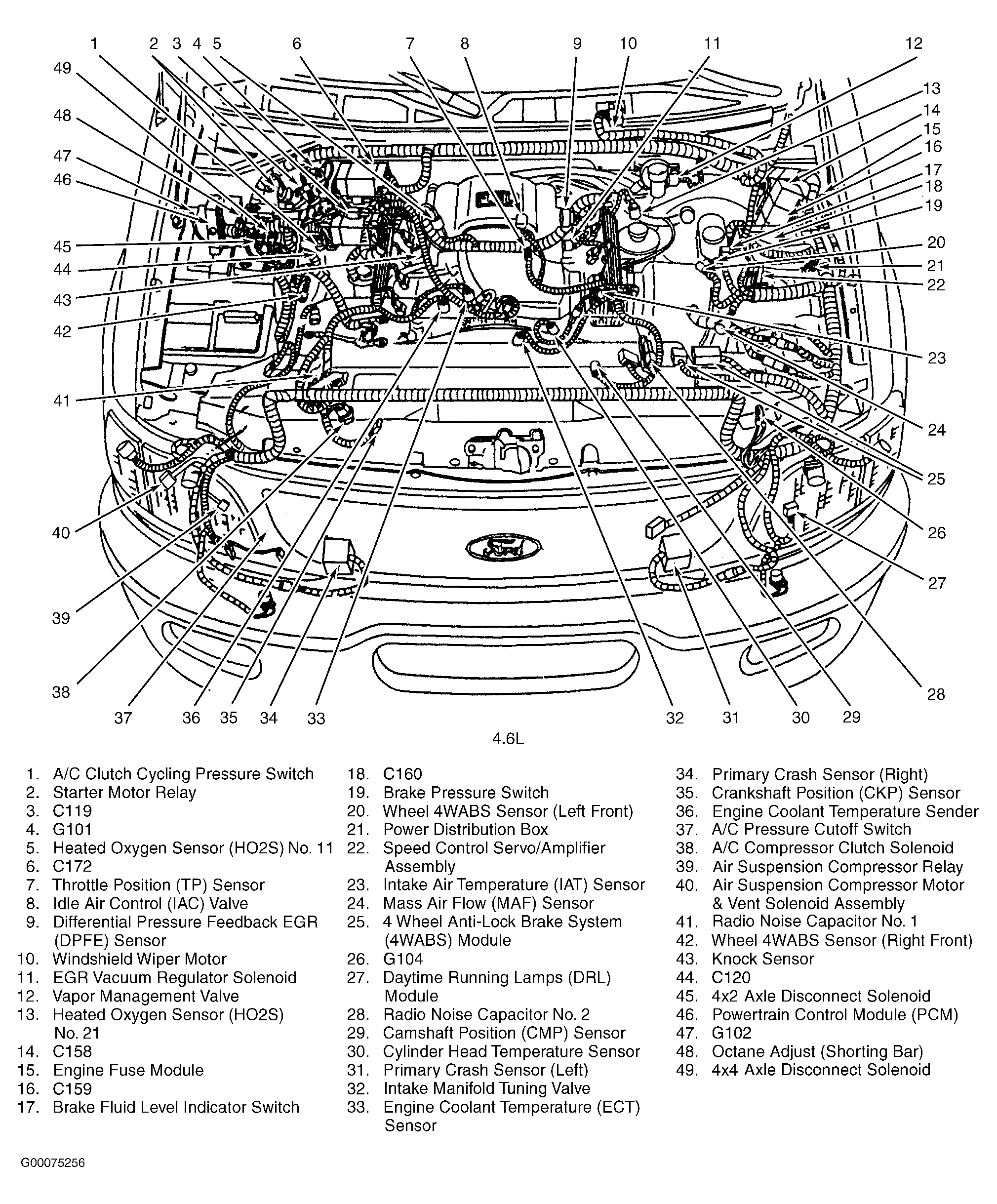

| Daytime Running Lamps (DRL) Module (4.6L) | On left front of engine compartment. See Figure . |

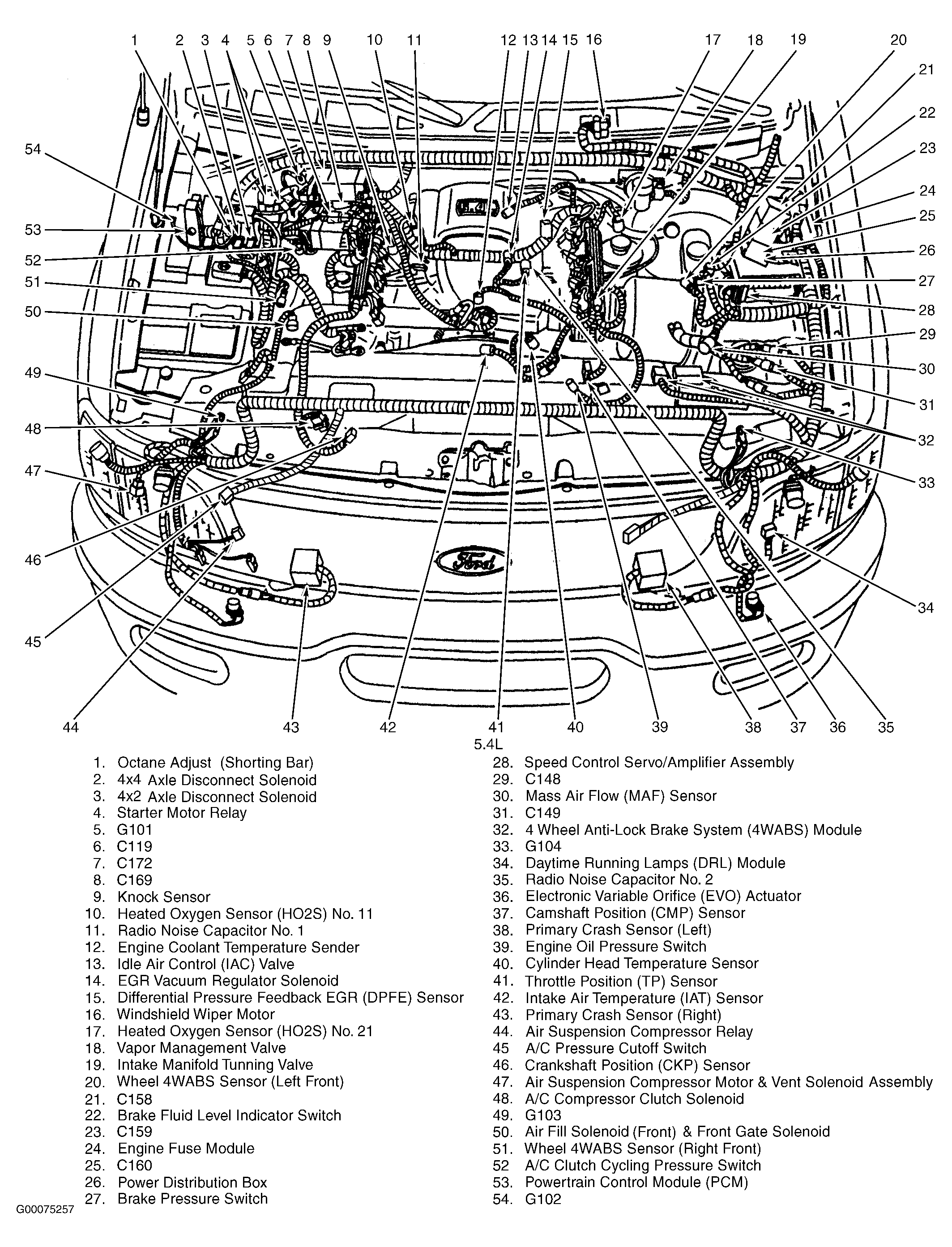

| Daytime Running Lamps (DRL) Module (5.4L) | On left front of engine compartment. See Figure . |
| Electronic Variable Orifice (EVO) Module | Behind center of dash. See Figure . |
| Generic Electronic Module (GEM) | Under left side of dash. See Figure . |
| Overhead Trip Computer Module | In front of overhead console. |
| Passive Anti-Theft System (PATS) Module | Behind center of dash. See Figure . |
| Powertrain Control Module (PCM) (4.6) | On right side of engine compartment. See Figure . |
| Powertrain Control Module (PCM) (5.4L) | On right side of engine compartment. See Figure . |

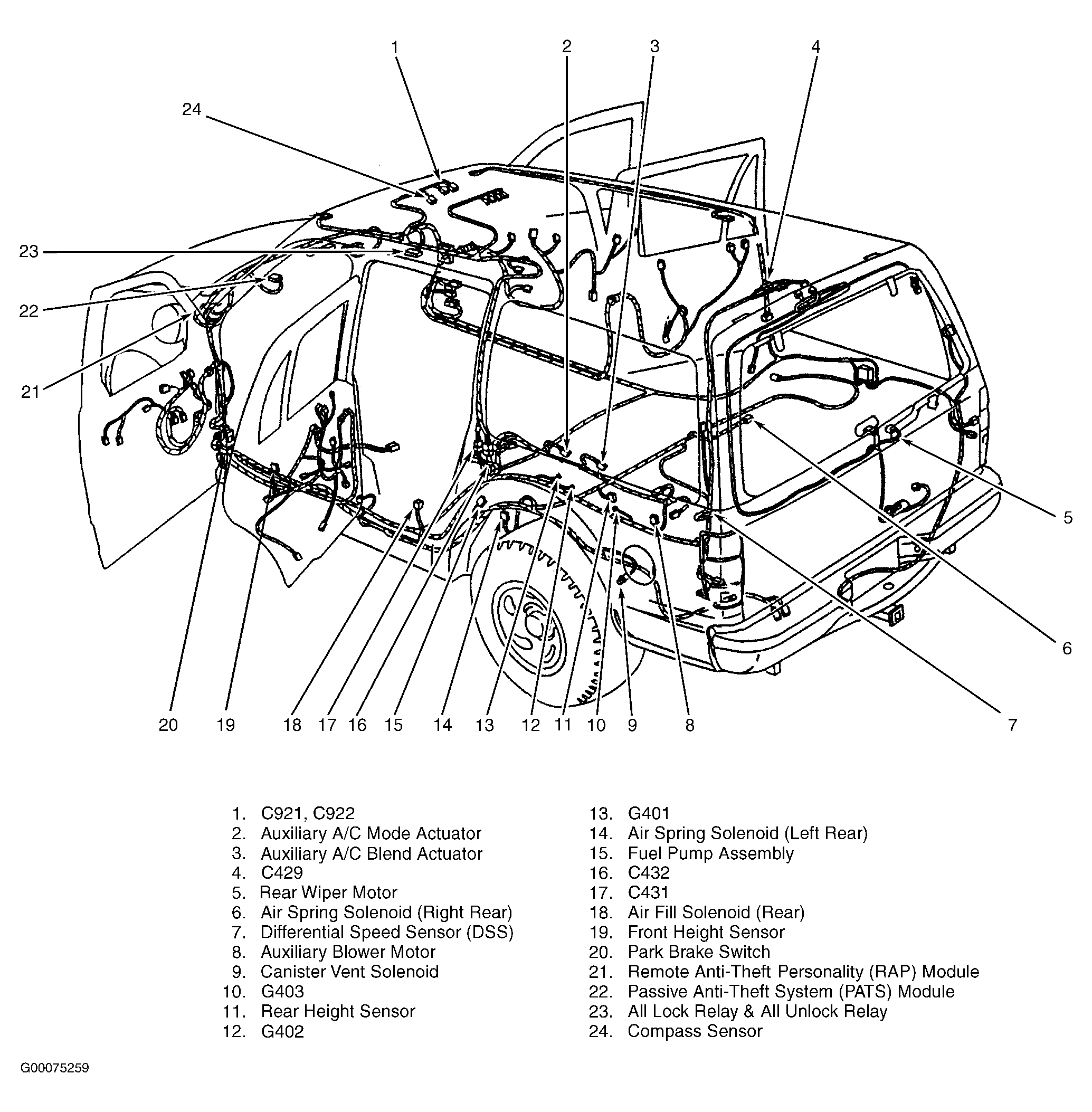

| Remote Anti-Theft Personality (RAP) Module | Behind left side of dash. See Figure . |
| Trailer Electronic Brake Control | Behind left side of dash. |
| 4-Wheel Air Suspension Module | Behind center of dash. See Figure . |
| 4-Wheel Anti-Lock Brake System (4WABS) Module (4.6L) | On left side of engine compartment. See Figure . |
| 4-Wheel Anti-Lock Brake System (4WABS) Module (5.4L) | On left side of engine compartment. See Figure . |
