Identification
>>
Relay Box
Relay Box
NOTE:
Relay box is located under driver's side of instrument panel. See
Figure
.

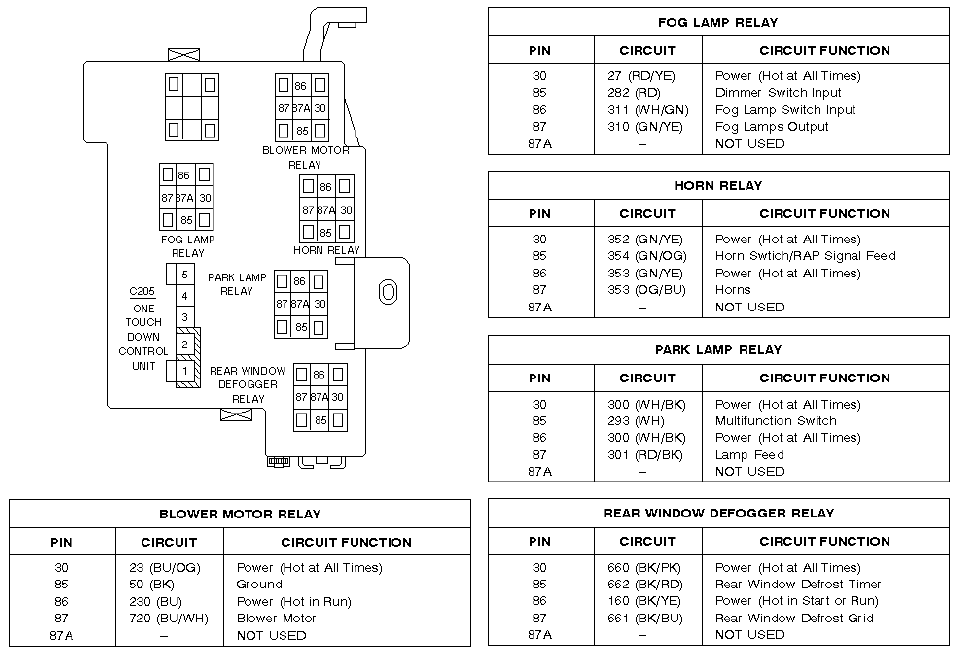

Fig 1: Identifying Relay Box Components
Courtesy of FORD MOTOR CO.
