Instrument Panel Fuse Panel

NOTE: Instrument panel fuse panel is located under driver's side of instrument panel. See Fig 1.
Fig 1: Locating Instrument Panel Electrical Components
G00101062Courtesy of FORD MOTOR CO.

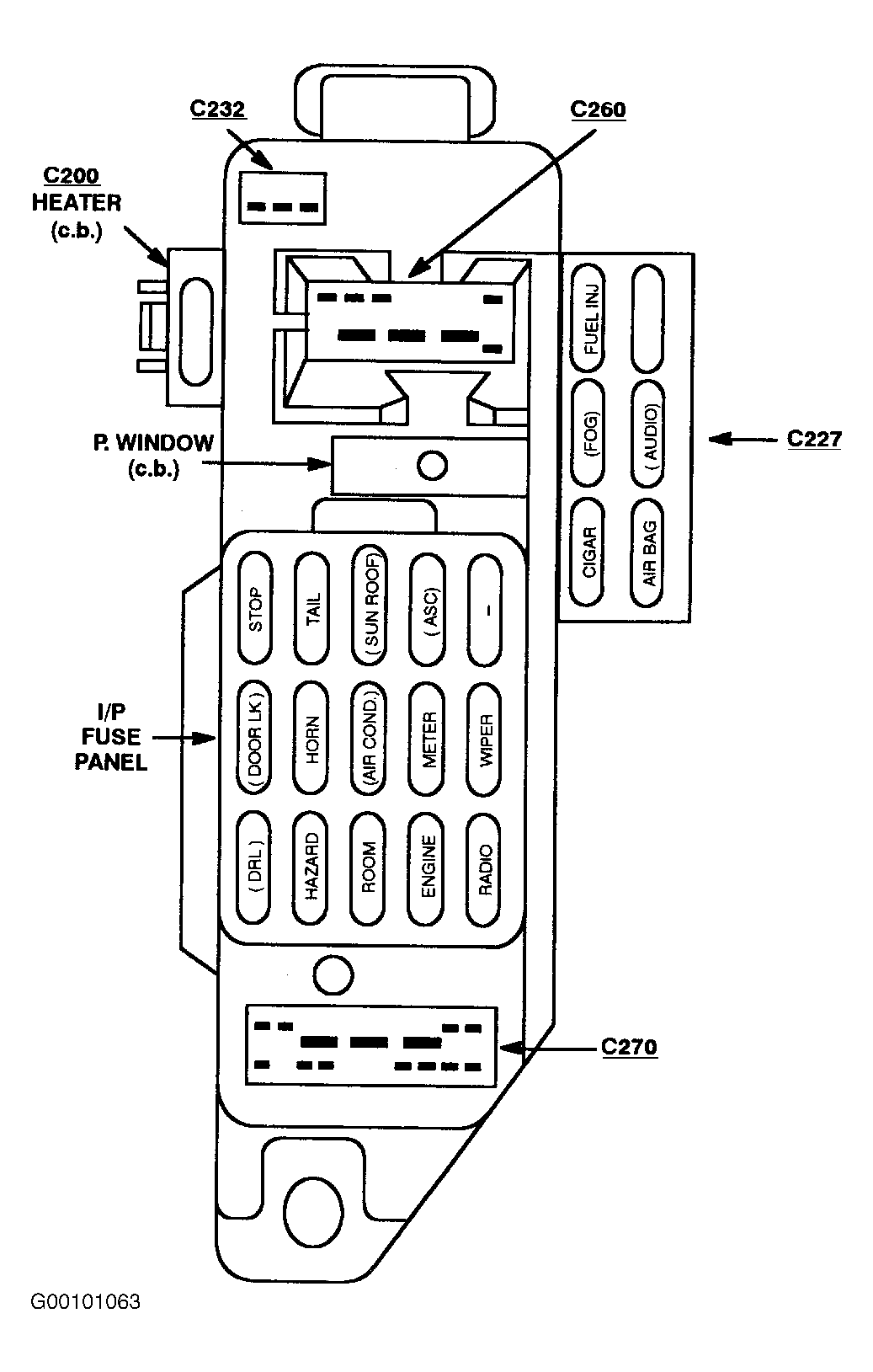

Fig 2: Identifying Instrument Panel Fuse Panel Components
G00101063Courtesy of FORD MOTOR CO.

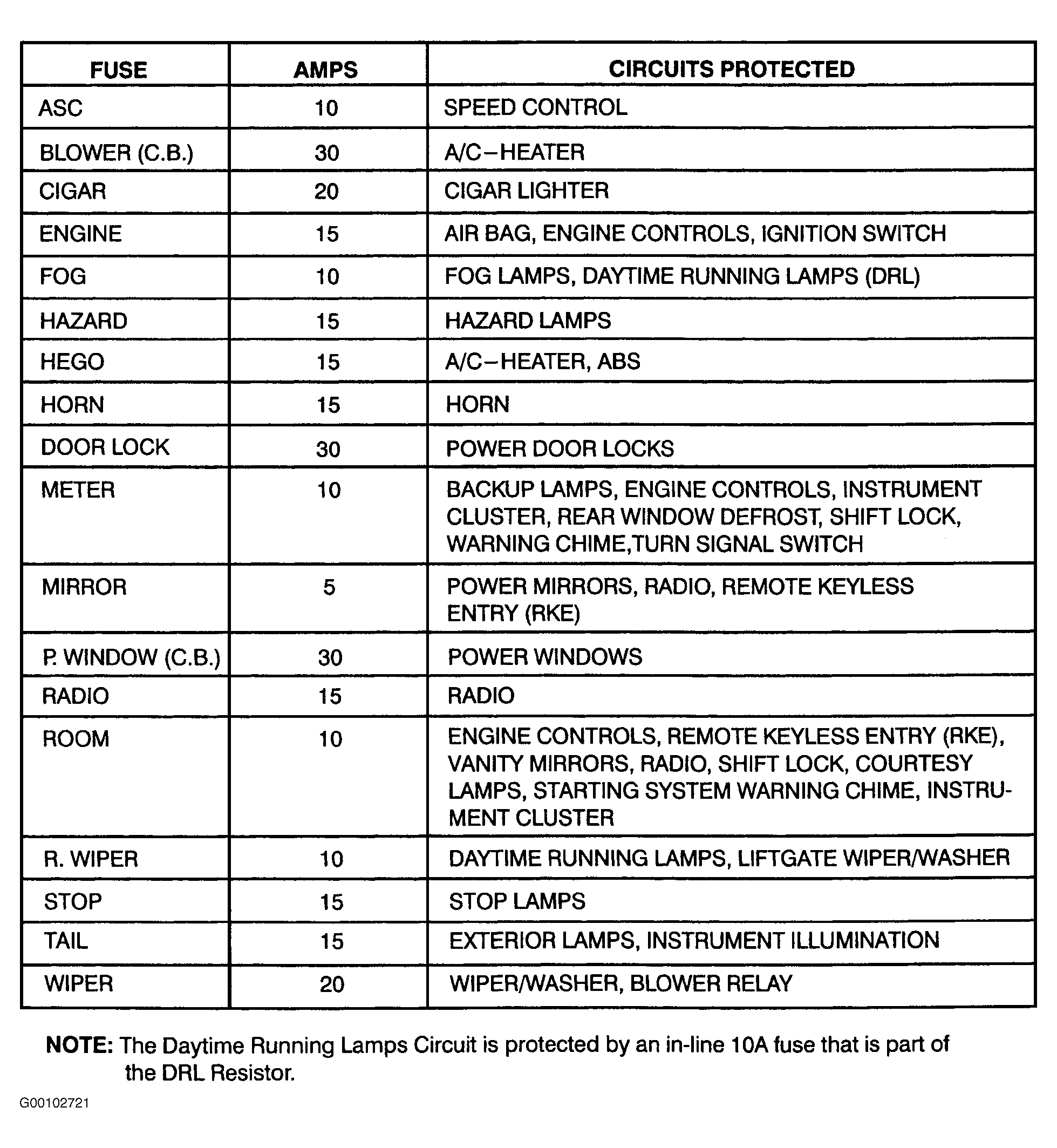

Fig 3: Instrument Panel Fuse Panel Legend
G00102721Courtesy of FORD MOTOR CO.
