Engine Compartment Fuse Box

NOTE: Engine compartment fuse box is located on the driver's side of engine compartment, near battery. See Fig 1.

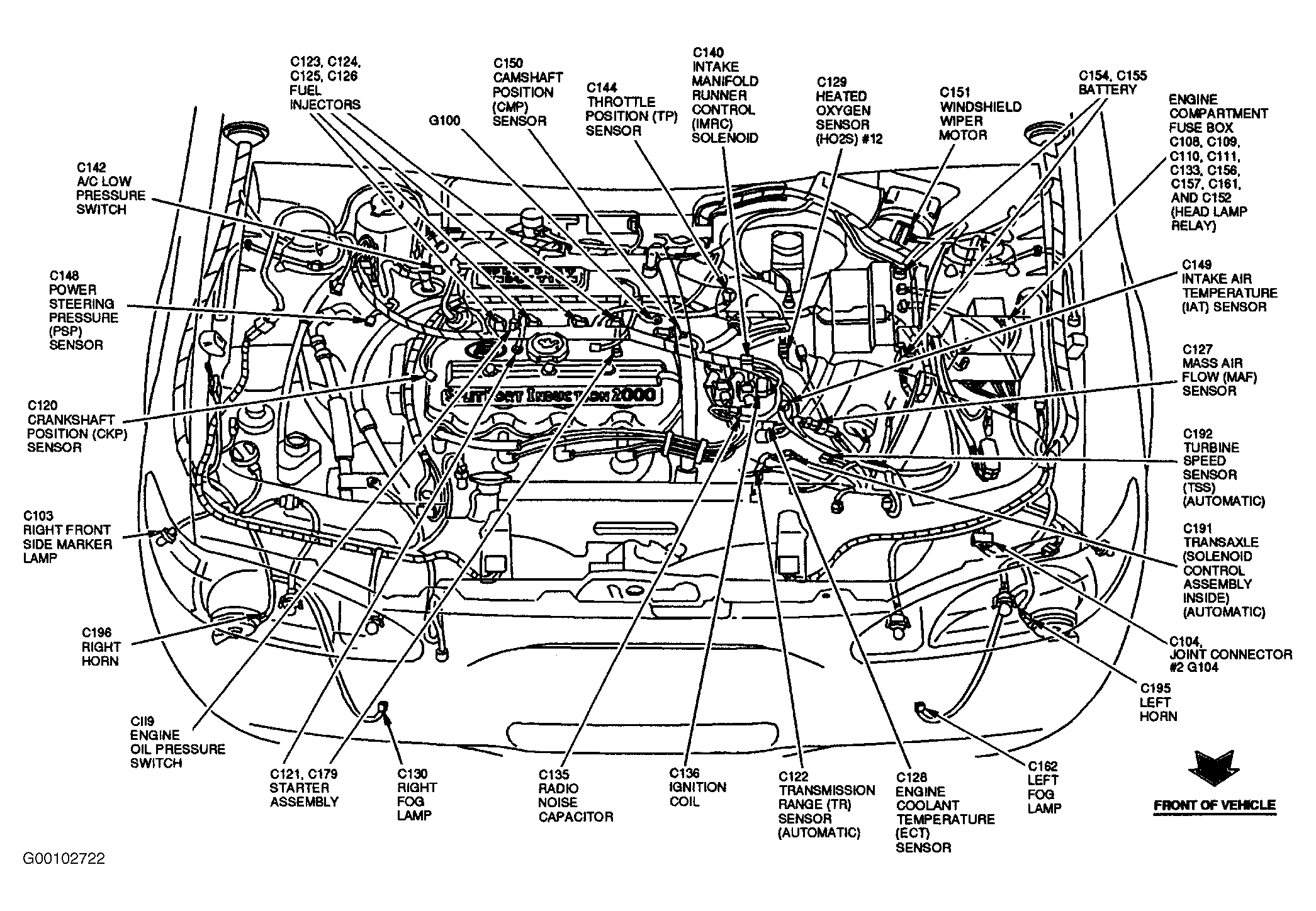

Fig 1: Locating Engine Compartment Electrical Components

Courtesy of FORD MOTOR CO.

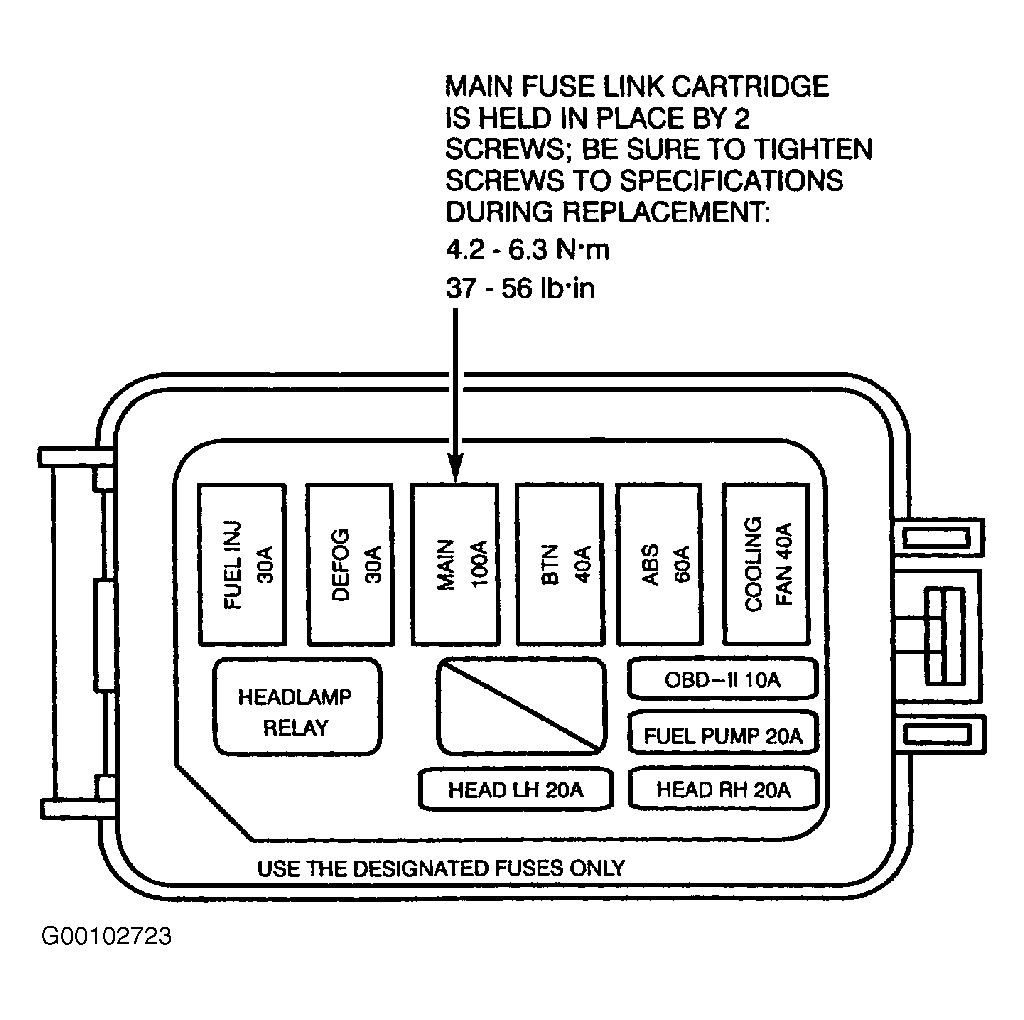

Fig 2: Identifying Engine Compartment Fuse Box Components

Courtesy of FORD MOTOR CO.

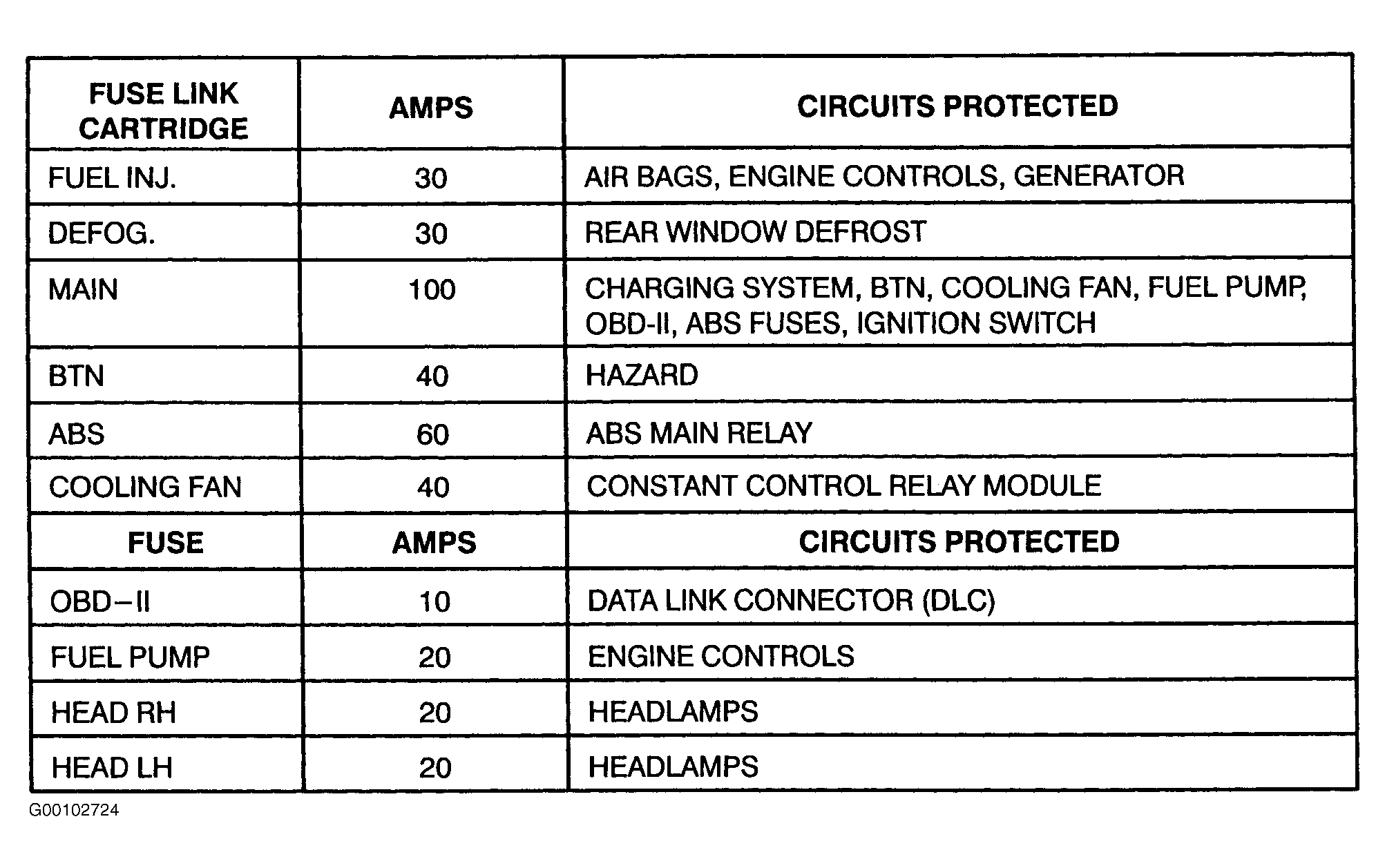

Fig 3: Engine Compartment Fuse Box Legend

Courtesy of FORD MOTOR CO.
