Removal & Installation

Disconnect negative battery cable. Locate interior fuse panel. Pull timer module straight away from fuse panel. See Fig 1. To install, reverse removal procedure.

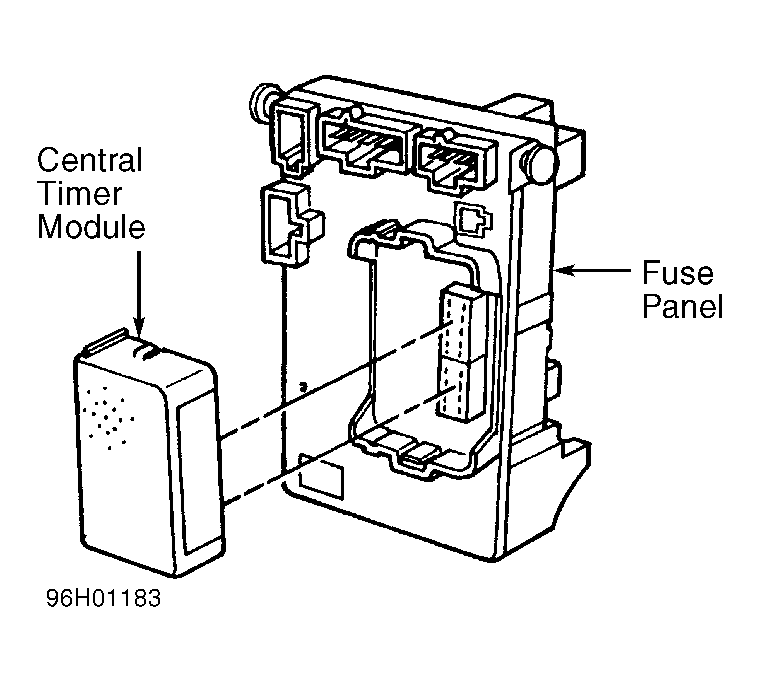

Fig 1: Locating Central Timer Module

Courtesy of FORD MOTOR CO.
