Input Shaft: Reassembly

  1. Using appropriate driver, press tapered roller rear bearing onto 1st gear end of shaft. Install 3rd gear, needle bearing and synchronizer blocker ring onto shaft. Install 3rd-4th gear synchronizer assembly with short collar facing out. Install NEW synchronizer snap ring. See Fig 1.
  2. Install 4th gear, needle bearing and synchronizer blocker ring onto shaft. Using appropriate driver, press 5th gear onto shaft. Install NEW 5th gear snap ring. Using appropriate driver, press tapered roller bearing onto 5th gear end of shaft.

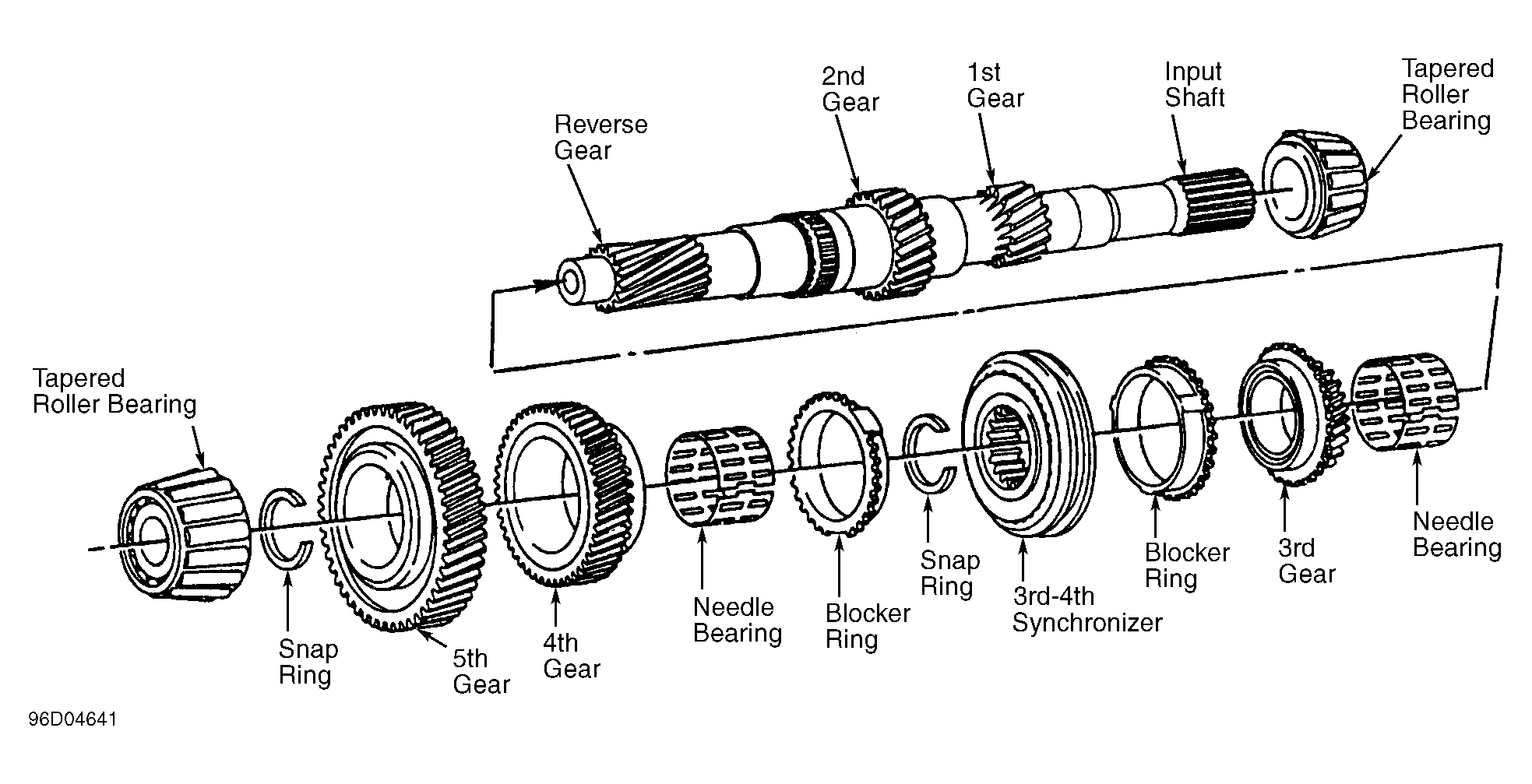

Fig 1: Exploded View Of Input Shaft Assembly
G96D04641Courtesy of FORD MOTOR CO.
