Wiper/Washer Switch
WARNING: This page is about a different car, the 1997 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

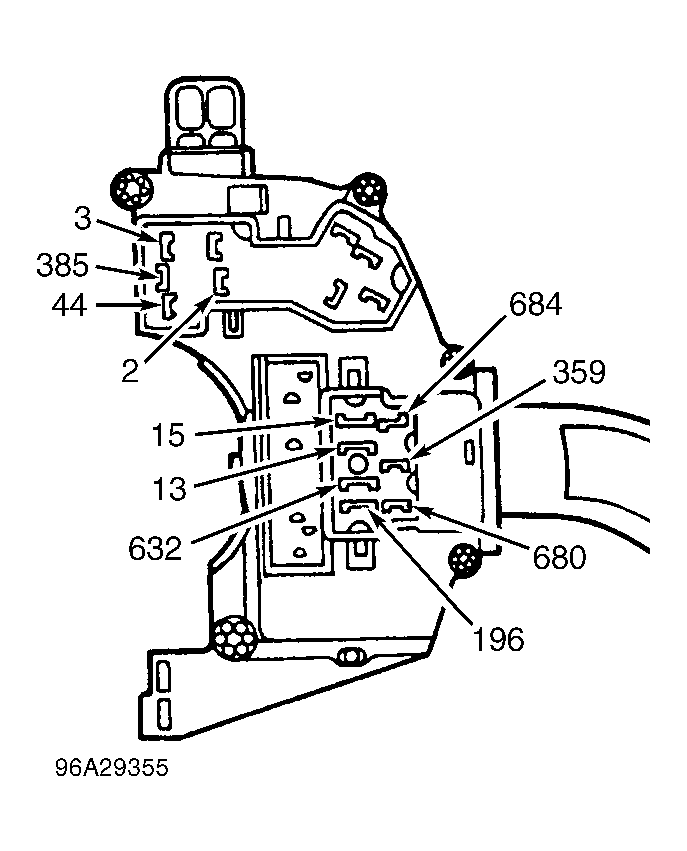

Remove and disconnect multifunction switch. See MULTIFUNCTION SWITCH under REMOVAL & INSTALLATION . Measure resistance between specified terminals while operating multifunction switch lever to positions as specified. See Figure. See WIPER/WASHER SWITCH TESTING TABLE. If continuity is not as specified, replace multifunction switch.
WIPER/WASHER SWITCH TESTING
| Switch Position | Circuit No. | (1) Ohms | |||||
|---|---|---|---|---|---|---|---|
| Wiper Switch | |||||||
| Off | 359 & 684 | 47,600 | |||||
| Int | 359 & 684 | 11,330 | |||||
| Lo | 359 & 684 | 4080 | |||||
| Hi | 359 & 684 | 0-4 | |||||
| Washer Switch On | 359 & 680 | 0-4 | |||||
| Wiper Intermittent | 359 & 680 | (2) | |||||
|
|||||||
