Wiper/Washer Switch
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 1997 Mercury Mountaineer, 1997 Ford Pickup, 1997 Ford F-Super Duty, 1997 Ford Explorer, and 1997 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

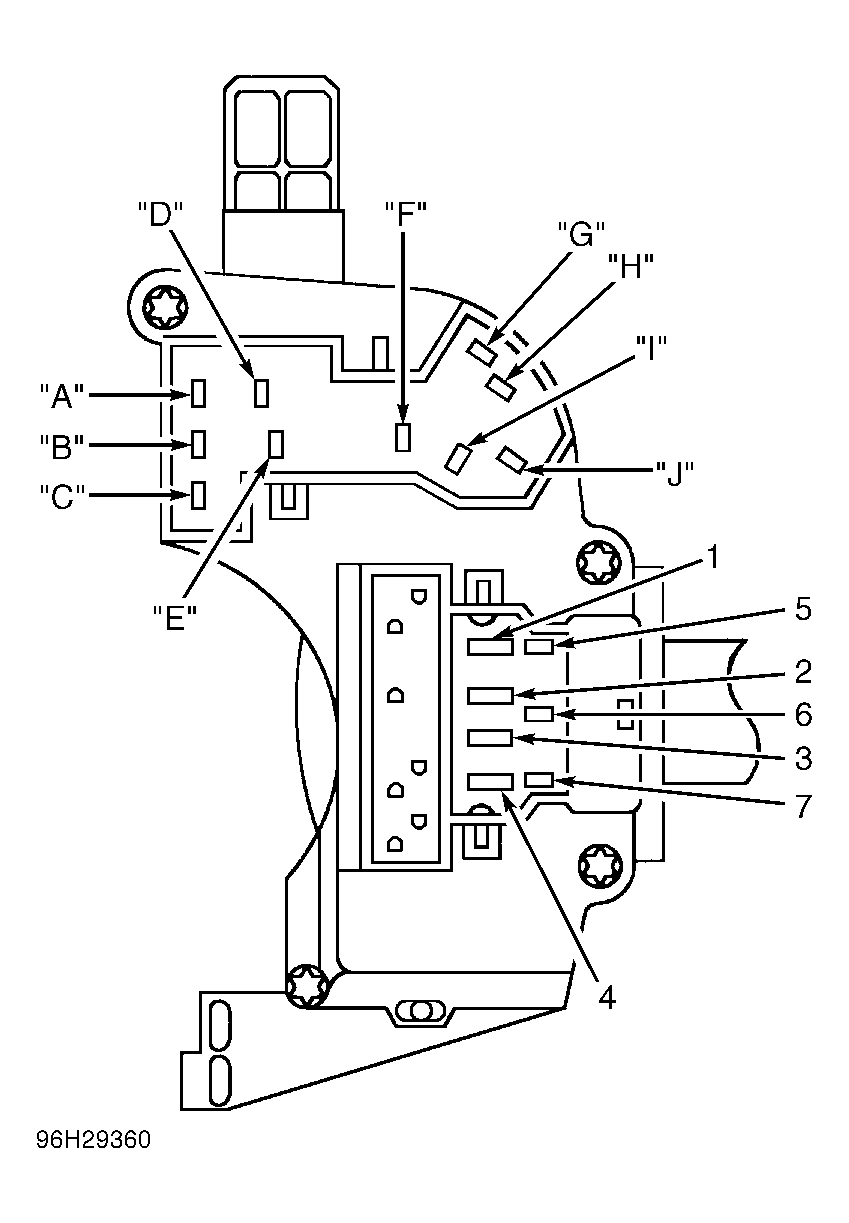

Remove and disconnect multifunction switch. See MULTIFUNCTION SWITCH under REMOVAL & INSTALLATION . Measure resistance between specified terminals while operating multifunction switch lever to positions as specified. See Figure. See WIPER/WASHER SWITCH TESTING TABLE. If continuity is not as specified, replace multifunction switch.
WIPER/WASHER SWITCH TESTING
| Switch Position |
Between Terminals |
Ohms |
| Wiper Switch |
| Off |
No. 5 & No. 6 |
47,600 |
| Int |
No. 5 & No. 6 |
11,330 |
| Lo |
No. 5 & No. 6 |
4080 |
| Hi |
No. 5 & No. 6 |
0-4 |
| Intermittent Wipers |
No. 6 & No. 7 |
|
| Washer Switch |
| Off |
No. 6 & No. 7 |
103,300 |
| On |
No. 6 & No. 7 |
0-4 |
| Rear Wiper Switch |
| Off |
H & No. 6 |
2,900 |
| Int 1 |
H & No. 6 |
11,000 |
| Int 2 |
H & No. 6 |
330 |
| Rear Washer Switch |
H & No. 6 |
0-4 |
