Ignition Switch
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 1997 Mercury Mountaineer, 1997 Ford Pickup, 1997 Ford F-Super Duty, 1997 Ford Explorer, and 1997 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
- To inspect ignition switch for mechanical operation, rotate lock cylinder through all switch positions. Lock cylinder should not bind, and should return from START to RUN position without assistance.
- If binding or incorrect modes occur, ignition switch should be adjusted. After adjustment, if binding or incorrect modes still exist, lock cylinder should either be disassembled and inspected for damage, or ignition switch should be replaced.

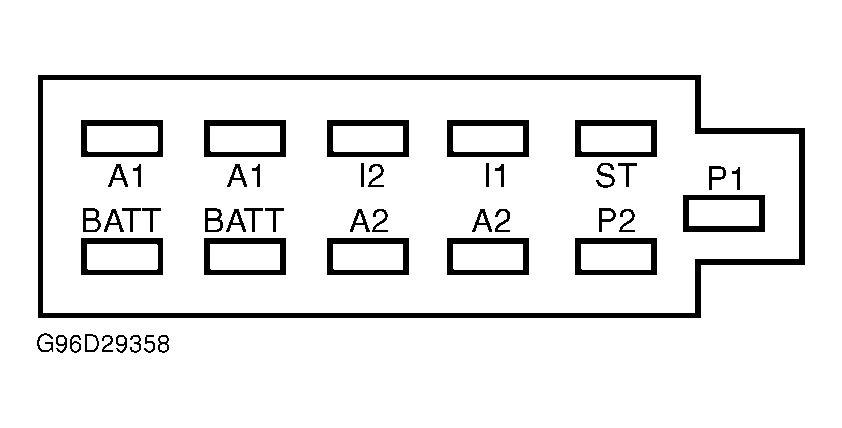

- To test electrical function of ignition switch, disconnect ignition switch connector. Check continuity between specified switch terminals using a self-powered test light or ohmmeter. See Fig 1 or Fig 2. See IGNITION SWITCH CONTINUITY TABLE. If continuity is not as specified, replace ignition switch.
IGNITION SWITCH CONTINUITY
| Continuity Between Terminals | Switch Position |
|---|---|
| STA & B4 | Start |
| GND & P1 | Start |
| B5 & I1 | Run |
| B1 & A1 | Run |
| B5 & A1 | ACC |
| B3 & A3 | Run |
| B2 & A2 | Run |
| B4 & A4 | Run |
IGNITION SWITCH CONTINUITY TEST
| Continuity Between Terminals | Switch Position | ||
|---|---|---|---|
| BATT & BATT | All | ||
| A2 & A2 | All | ||
| BATT & ST | Start | ||
| BATT & A2 (1) | Run | ||
| BATT & I1 | Run | ||
| BATT & I2 | Start | ||
| BATT & A1 | Accessory | ||
| P1, P2 & Switch Case | Start | ||
|
|||
