Electrical Component Locator: Miscellaneous

MISCELLANEOUS

Component Component Location
Blower Motor Resistors Behind right side of dash.

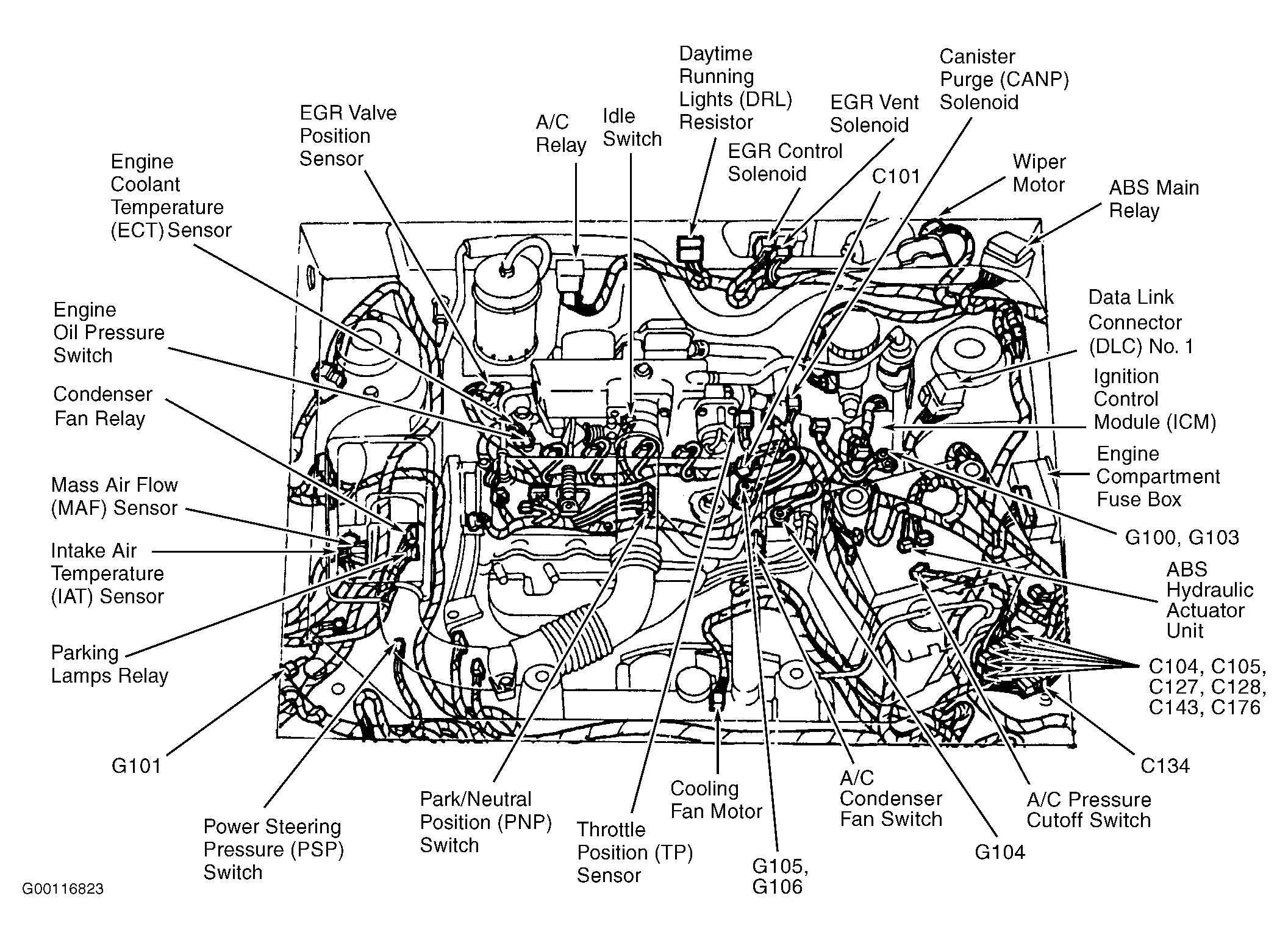

Data Link Connector (DLC) No. 1 Left side of engine compartment. See Figure .
Data Link Connector (DLC) No. 2 Lower center of dash.
Daytime Running Lamps (DRL) Resistor Rear center of engine compartment. See Figure .
Shorting Connector Left front of engine compartment.
Shorting Connector Behind right side of dash.
