Low-Intermediate Servo: Disassembly

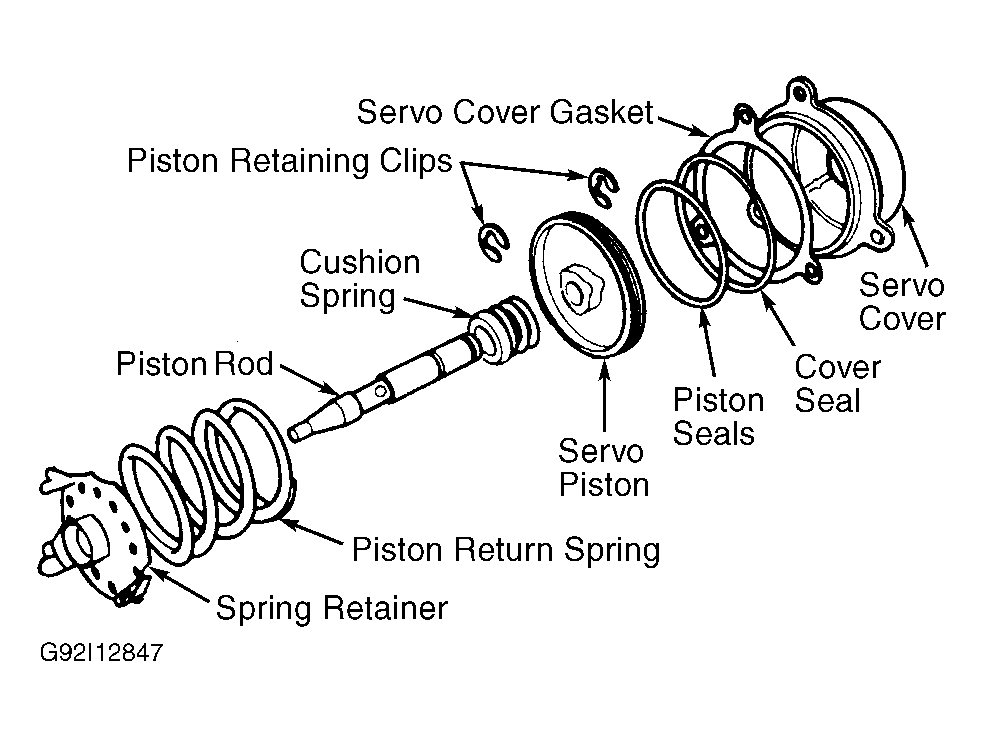

Remove servo cover and piston return spring. Remove servo piston and rod from cover. Remove retaining clips, rod and cushion spring. See Figure . Remove seals and gasket.
