Direct Clutch Assembly: Notes

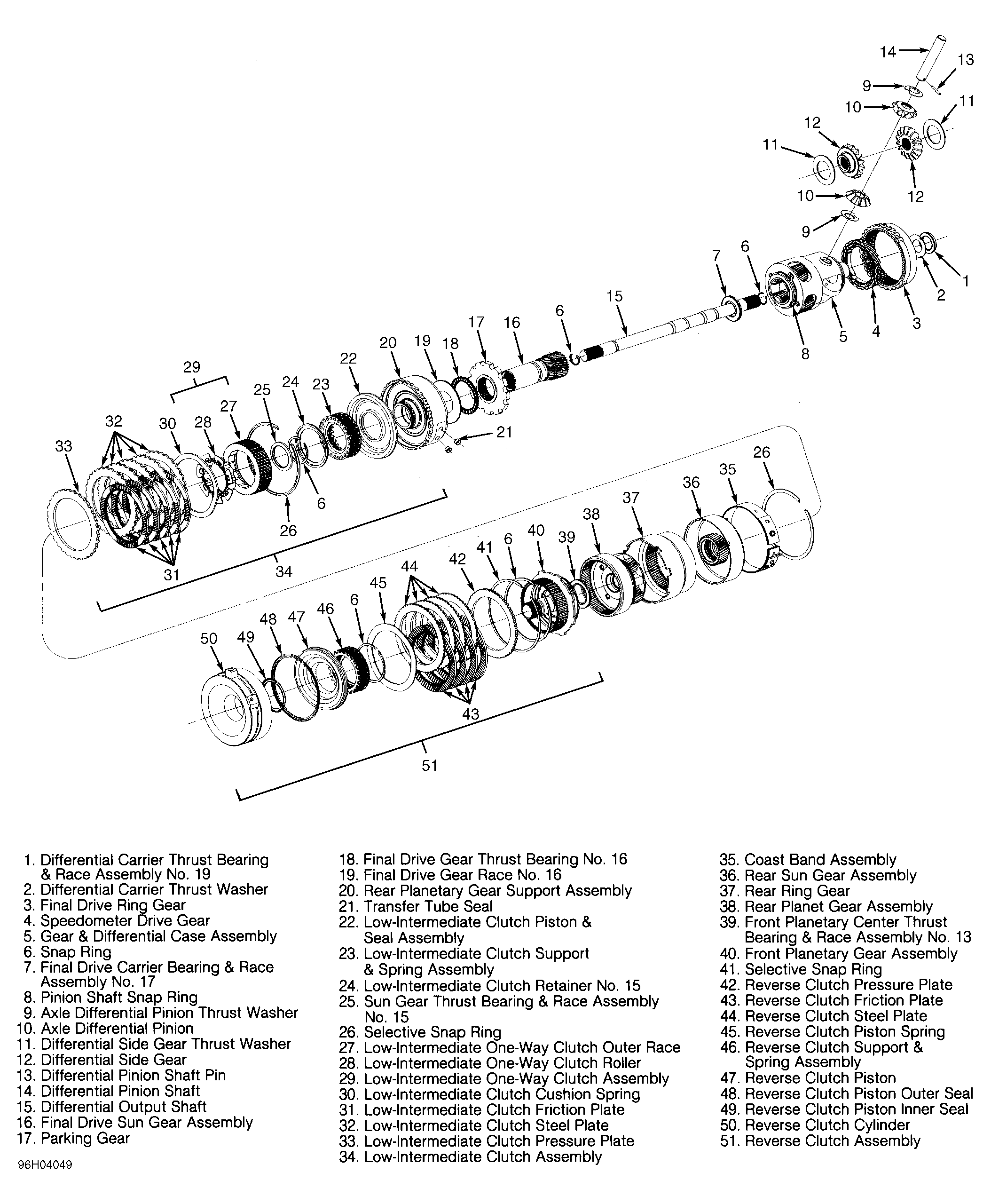

NOTE: For exploded view of direct clutch assembly components, see Figure components No. 15-28. Direct clutches and steels are manufactured with a dark coating. This color does not designate clutch failure.
