Intermediate Clutch: Notes

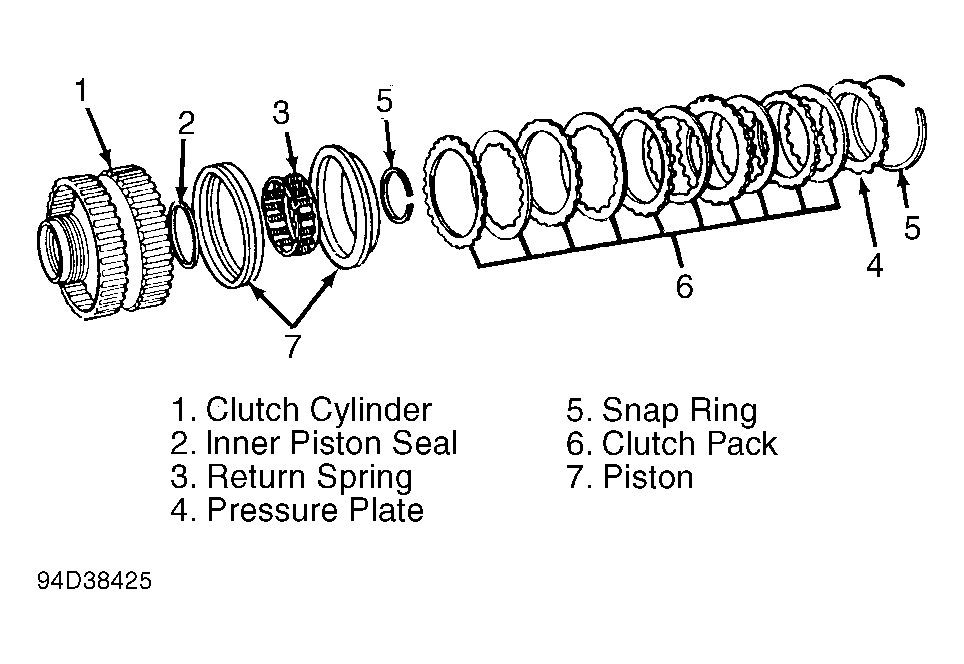

NOTE: For exploded view of Taurus SHO intermediate clutch components, see Figure . For all other models, see Figure components No. 2-15.
