Headlamp Adjustment Information

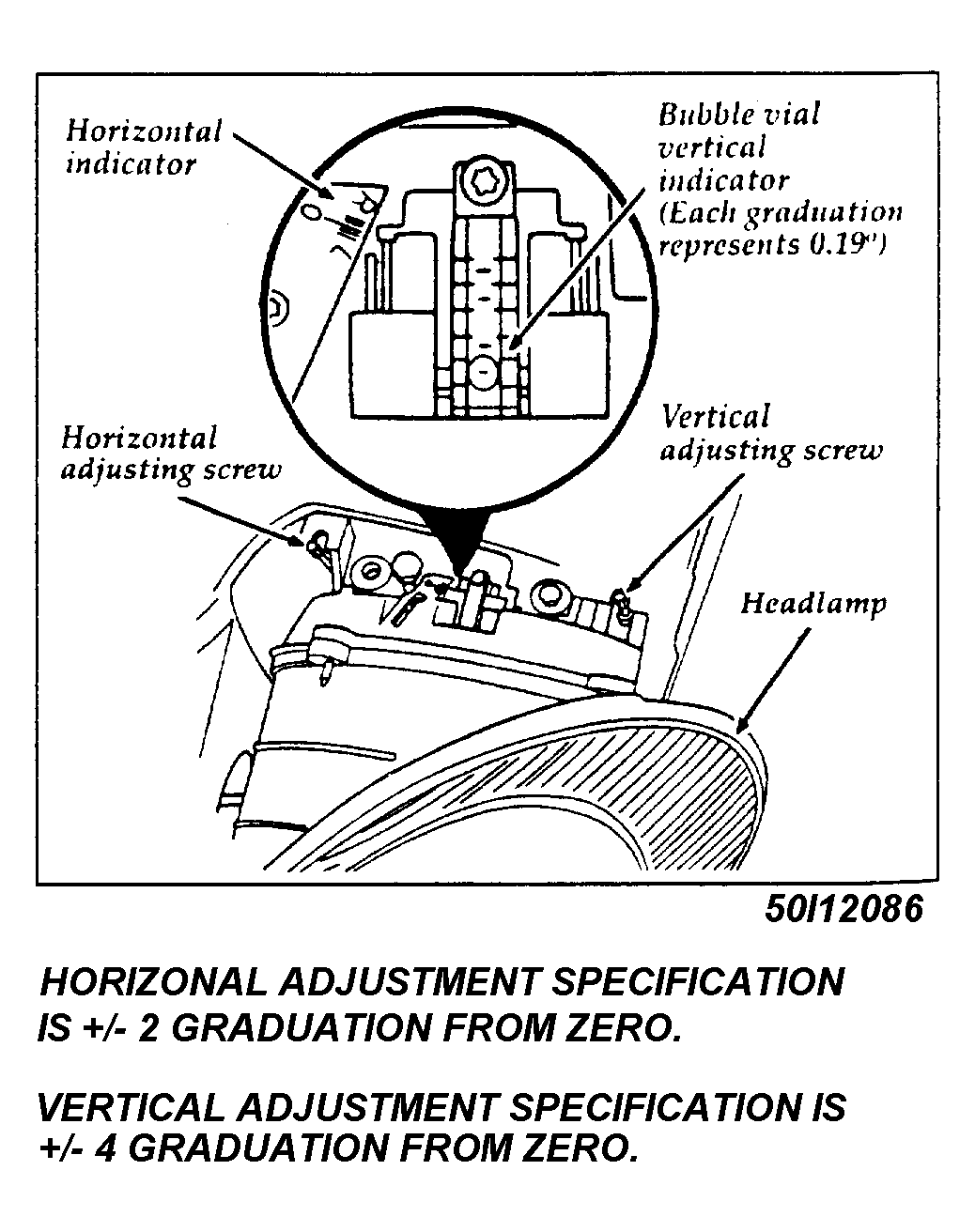

Fig 1: Headlamp Adjustment Screw Locations
G50I12086Courtesy of FORD MOTOR CO.
NOTE: Normal adjustment specifications are:
