Home
>>
Ford
>>
1996
>>
Taurus G, AX4S
>>
Repair and Diagnosis
>>
Electrical
>>
Fuses & Circuit Breakers
>>
Identification
>>
Mega Fuse
Mega Fuse
NOTE:
MEGA fuse is located on right side of engine compartment fuse/relay box. See
Fig 1
.

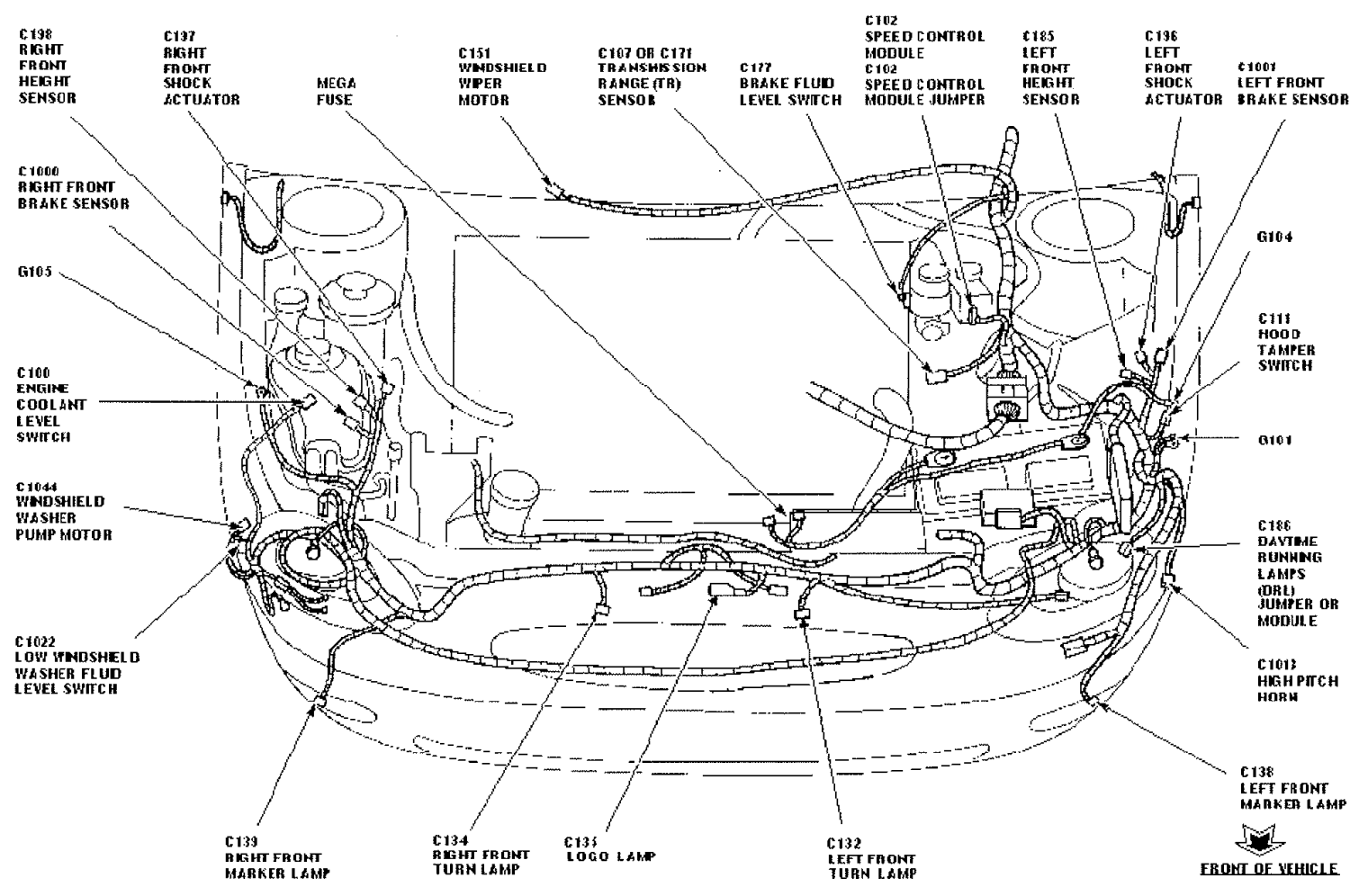

Fig 1: Engine Compartment
