Cell Phone In-Line Fuse

NOTE: Cell phone in-line fuse is located above left rear wheelwell, in cargo area. See Fig 1 or Fig 2

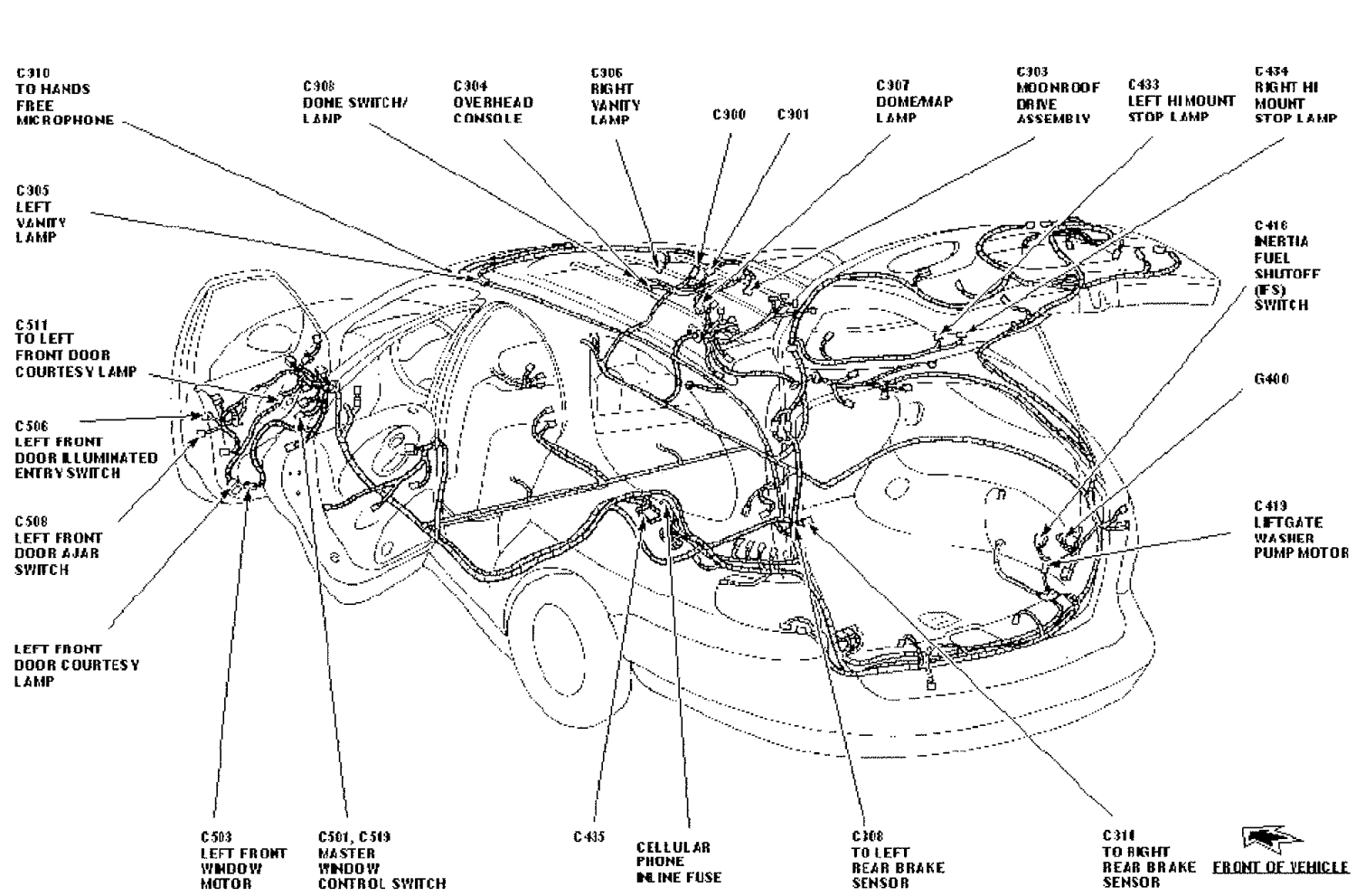

Fig 1: Full Body View (Wagon - 2 Of 2)

G00530482

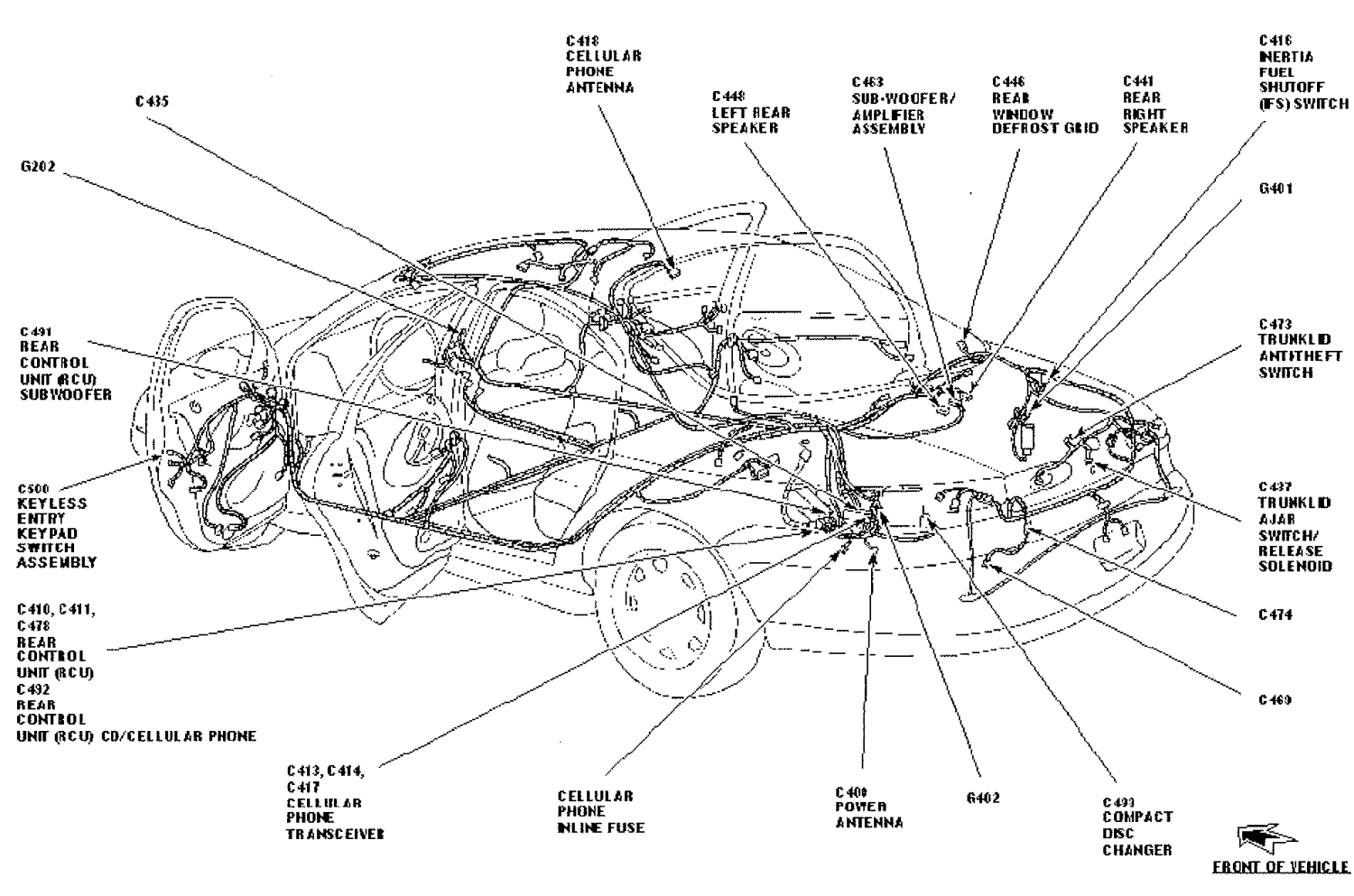

Fig 2: Full Body View (Sedan)

G00530483
