Electrical Component Locator: Connectors
CONNECTORS
| Component | Component Location |
|---|---|
| C114 (16 Pin) | At left rear of engine compartment. |
| C115 (4 Pin) | At left rear of engine. |

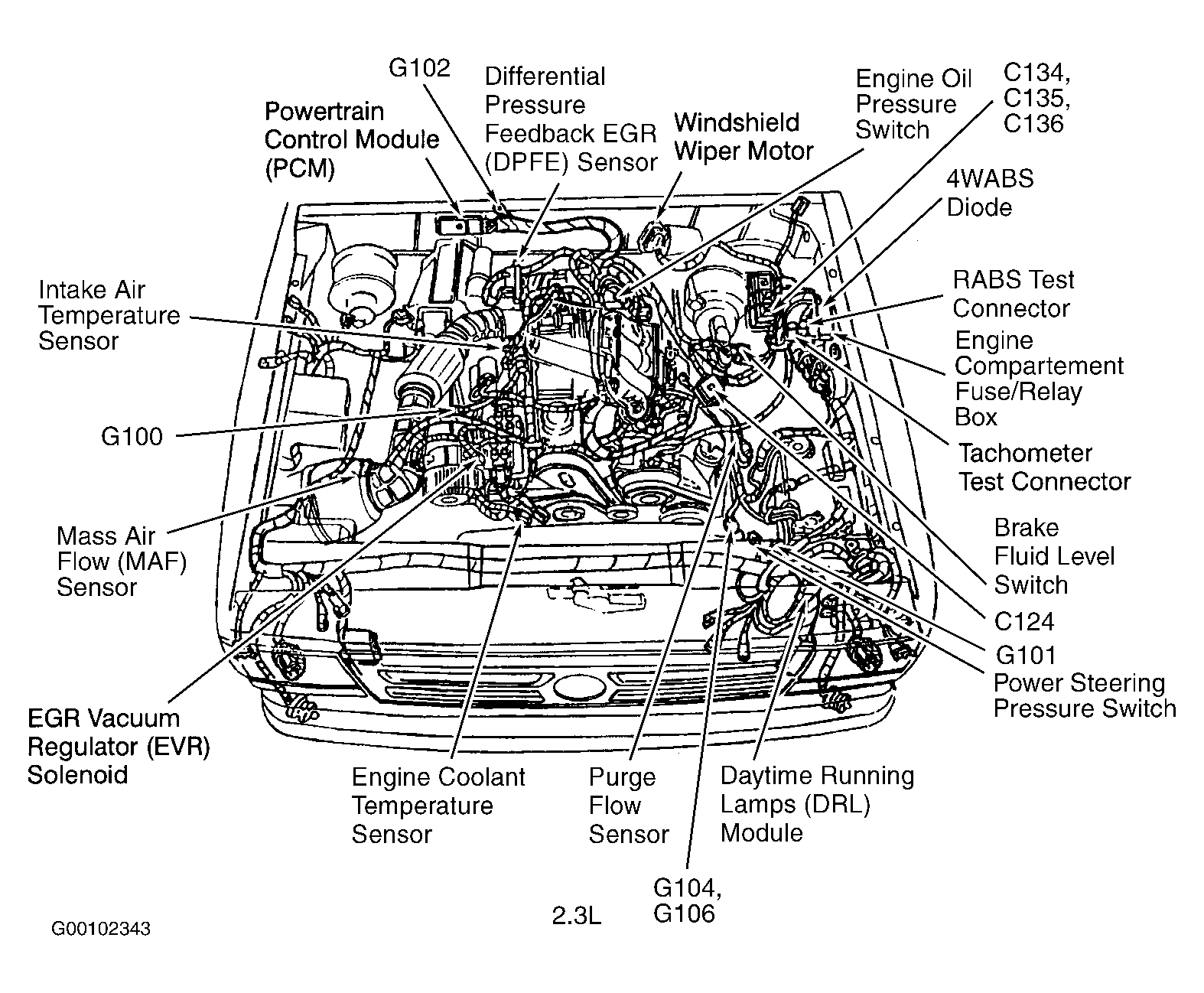

| C124 (2.3L) (42 Pin) | At left side of engine compartment. See Figure . |

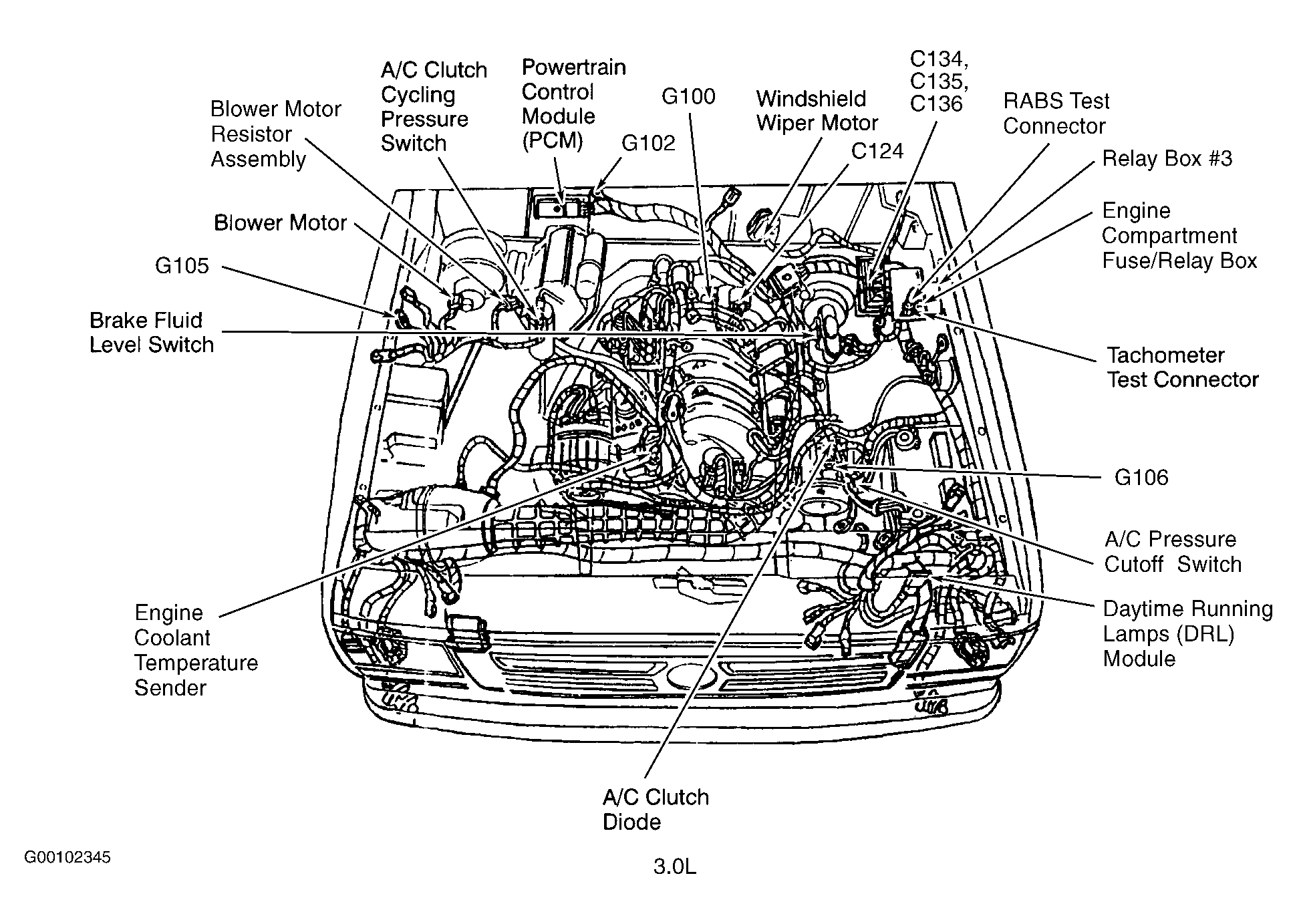

| C124 (3.0L) (42 Pin) | At left rear of engine compartment. See Figure . |
| C124 (4.0L) (42 Pin) | At left rear of engine compartment. |
| C128 (3.0L) (16 Pin) | At rear of engine, on top of bellhousing. |
| C128 (4.0L) (16 Pin) | At rear of engine, on top of bellhousing. |
| C129 (3.0L) (16 Pin) | At left rear of engine. |
| C129 (4.0L) (16 Pin) | At left rear of engine. |
| C130 (2.3L) (8 Pin) | At left rear of engine. |

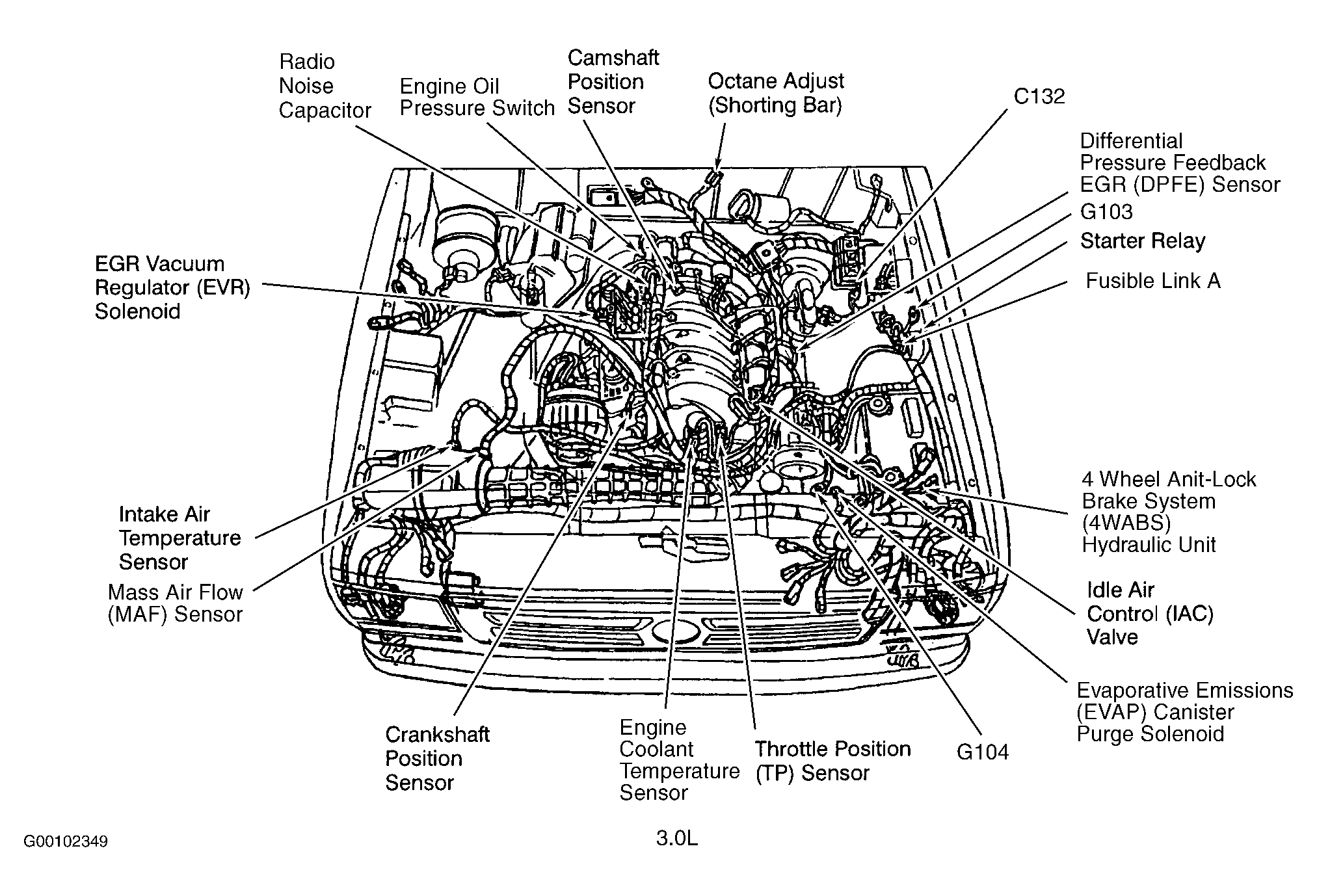

| C132 (3.0L) (2 Pin) | At left rear of engine compartment. See Figure . |
| C132 (4.0L) (2 Pin) | At left rear of engine compartment. See Figure . |
| C134 (2.3L) (40 Pin) | At left side of firewall. See Figure . |
| C134 (3.0L) (40 Pin) | At left side of firewall. See Figure . |

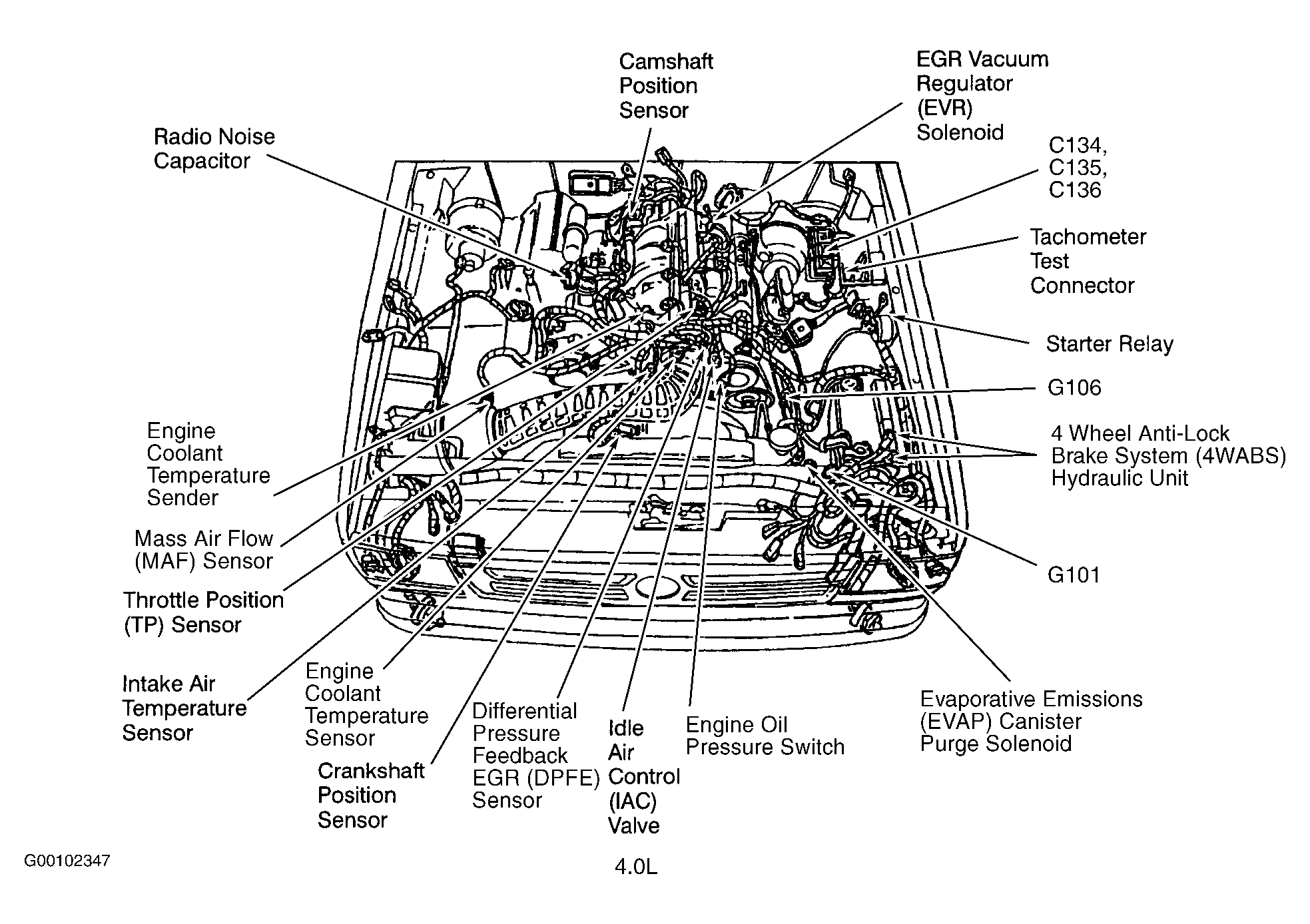

| C134 (4.0L) (40 Pin) | At left side of firewall. See Figure . |
| C135 (2.3L) (40 Pin) | At left side of firewall. See Figure . |
| C135 (3.0L) (40 Pin) | At left side of firewall. See Figure . |
| C135 (4.0L) (40 Pin) | At left side of fire wall. See Figure . |
| C136 (2.3L) (40 Pin) | At left side of firewall. See Figure . |
| C136 (3.0L) (40 Pin) | At left side of firewall. See Figure . |
| C136 (4.0L) (40 Pin) | At left side of fire wall. See Figure . |

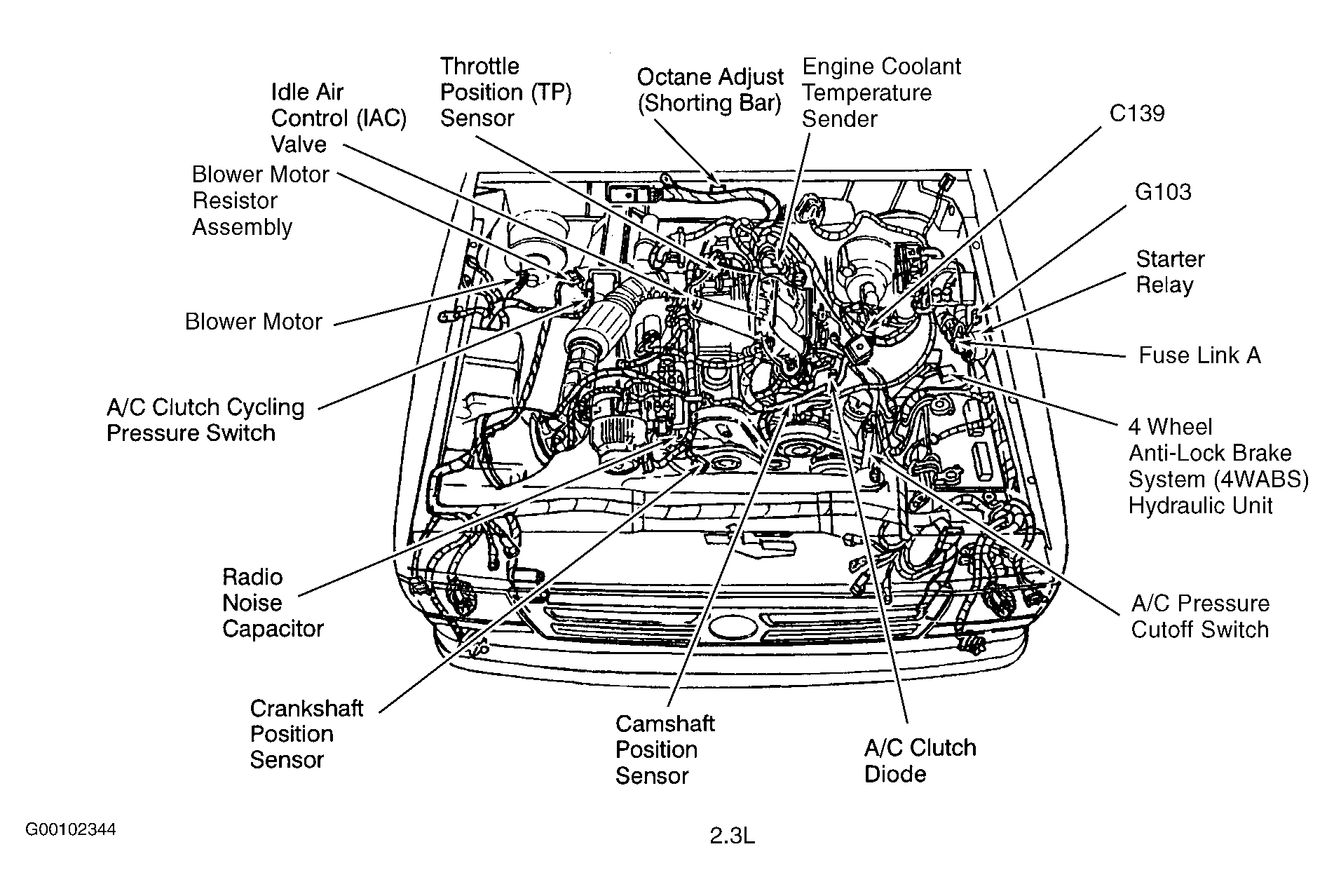

| C139 (2.3L) (8 Pin) | At left side of engine compartment. See Figure . |

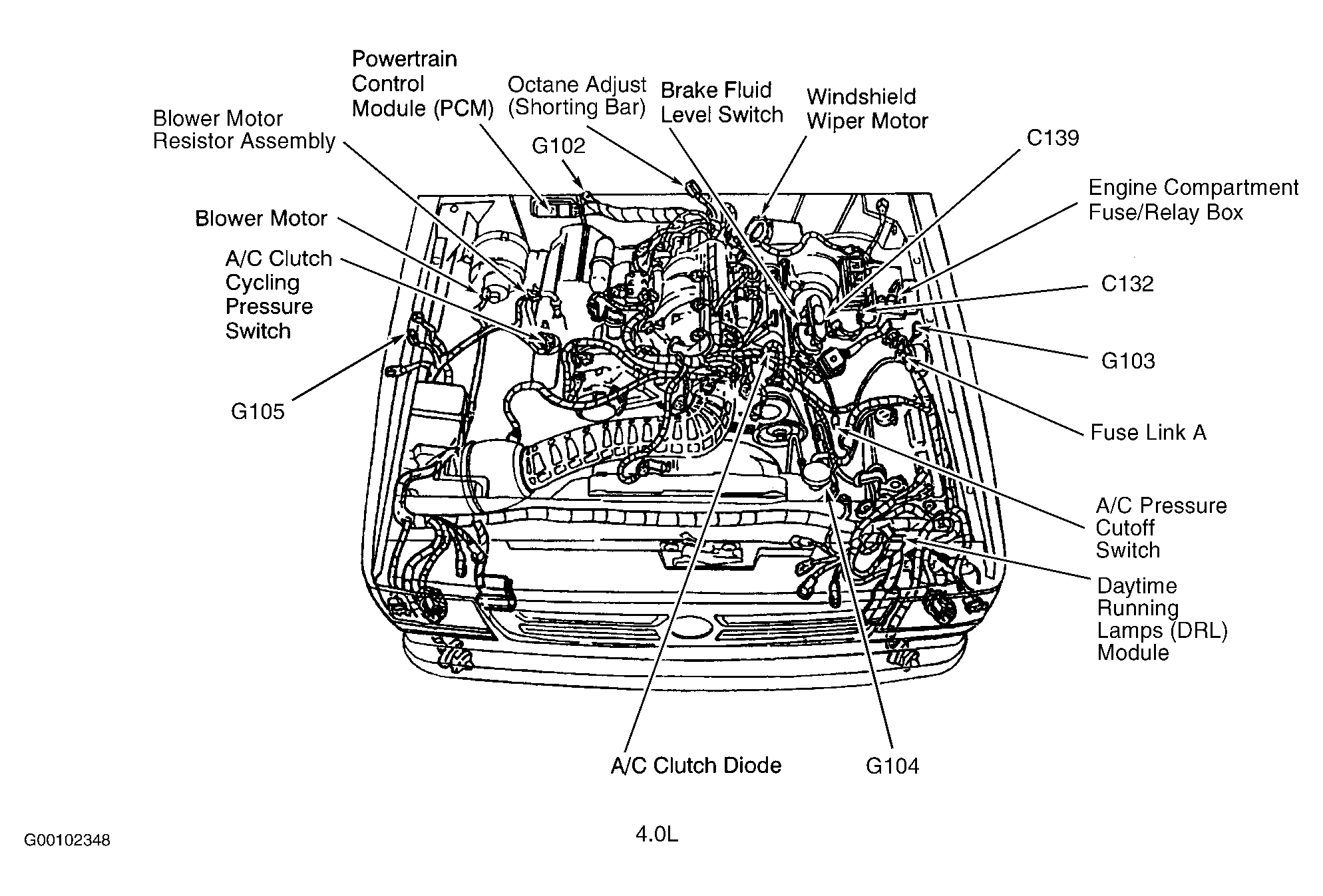

| C139 (4.0L) (8 Pin) | At left side of engine compartment. See Figure . |
| C173 (1 Pin) | At left side of engine compartment, at fender apron. |
| C174 (Red, 1 Pin) | At left side of engine compartment, at fender apron. |
| C178 (1 Pin) | At left side of engine compartment, at fender apron. |
| C200 (16 Pin) | Behind left kick panel. |
| C201 (84 Pin) | Behind left side of dash. |
| C203 (4 Pin) | Behind left kick panel. |
| C208 (14 Pin) | At lower left side of steering column. |
| C218 (3 Pin) | At bottom of steering column. |
| C219 (6 Pin) | At bottom of steering column. |
| C242 (3 Pin) | Behind right side of dash. |
| C242 (3 Pin) | Behind right side of dash. |
| C245 (10 Pin) | Behind right kick panel. |
| C246 (14 Pin) | Behind right kick panel. |
| C247 (14 Pin) | Behind right kick panel. |
| C252 (16 Pin) | Behind right kick panel. |
| C256 (Gray, 3 Pin) | Behind center of dash. |
| C257 (Black, 3 Pin) | Behind center of dash. |
| C300 (10 Pin) | Below left front seat. |
| C301 (Gray, 2 Pin) | Below left front seat. |
| C302 (Gray, 2 Pin) | Below right front seat. |
| C403 (Black, 8 Pin) | Under left rear of vehicle, near rear of frame. |
| C1000 (4 Pin) | Under center of vehicle. |
| C1007 (16 Pin) | At left underside of vehicle. |
