Mode 6 - 1996 Ford
>>
Electric Air Monitor
Electric Air Monitor

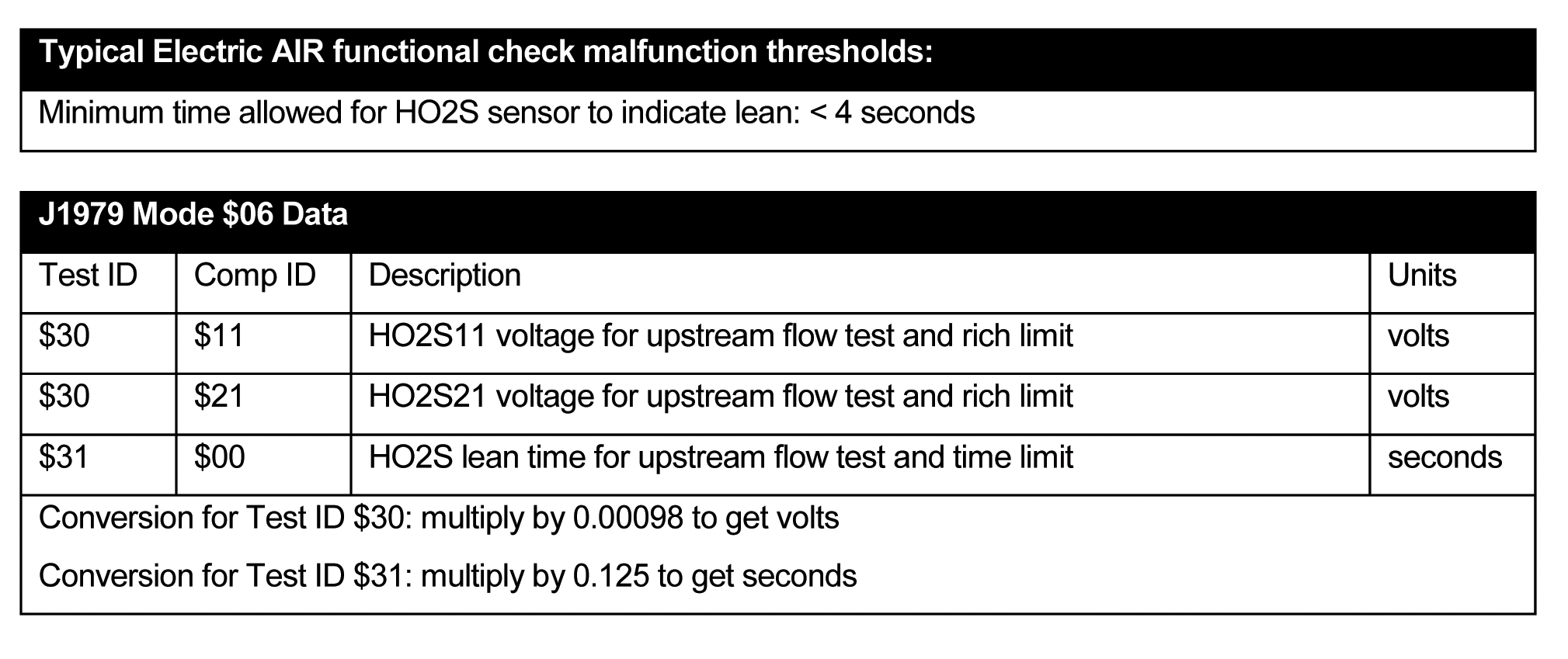

Fig 1: Mode $06 Data For Electric AIR Monitor
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
