Wiper Arm

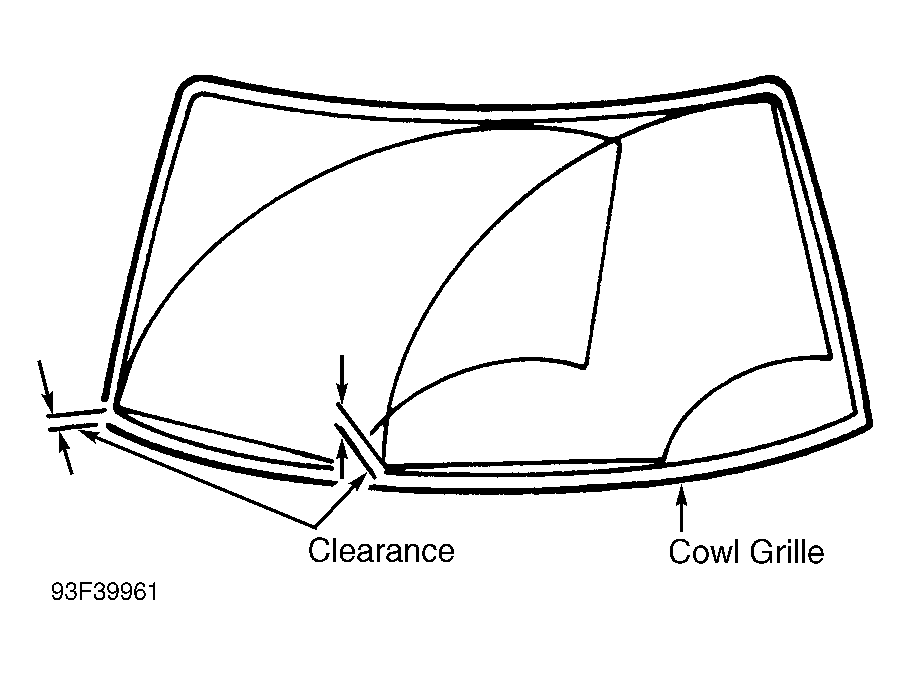

Remove wiper arms from pivot shafts. Turn windshield wipers on. Allow motor to cycle pivot shafts 2 or 3 times. Turn off wipers. Install wiper arms so blade tips are 1.12-1.28" (28-32 mm) from top of cowl grille. See Fig 1 .
