Home >> Ford >> 1996 >> Mustang Base, 2D Convertible, Standard >> Repair and Diagnosis (Single Page) >> Electrical >> Fuses & Circuit Breakers >> Identification >> Constant Control Relay Module (CCRM)

Constant Control Relay Module (CCRM)

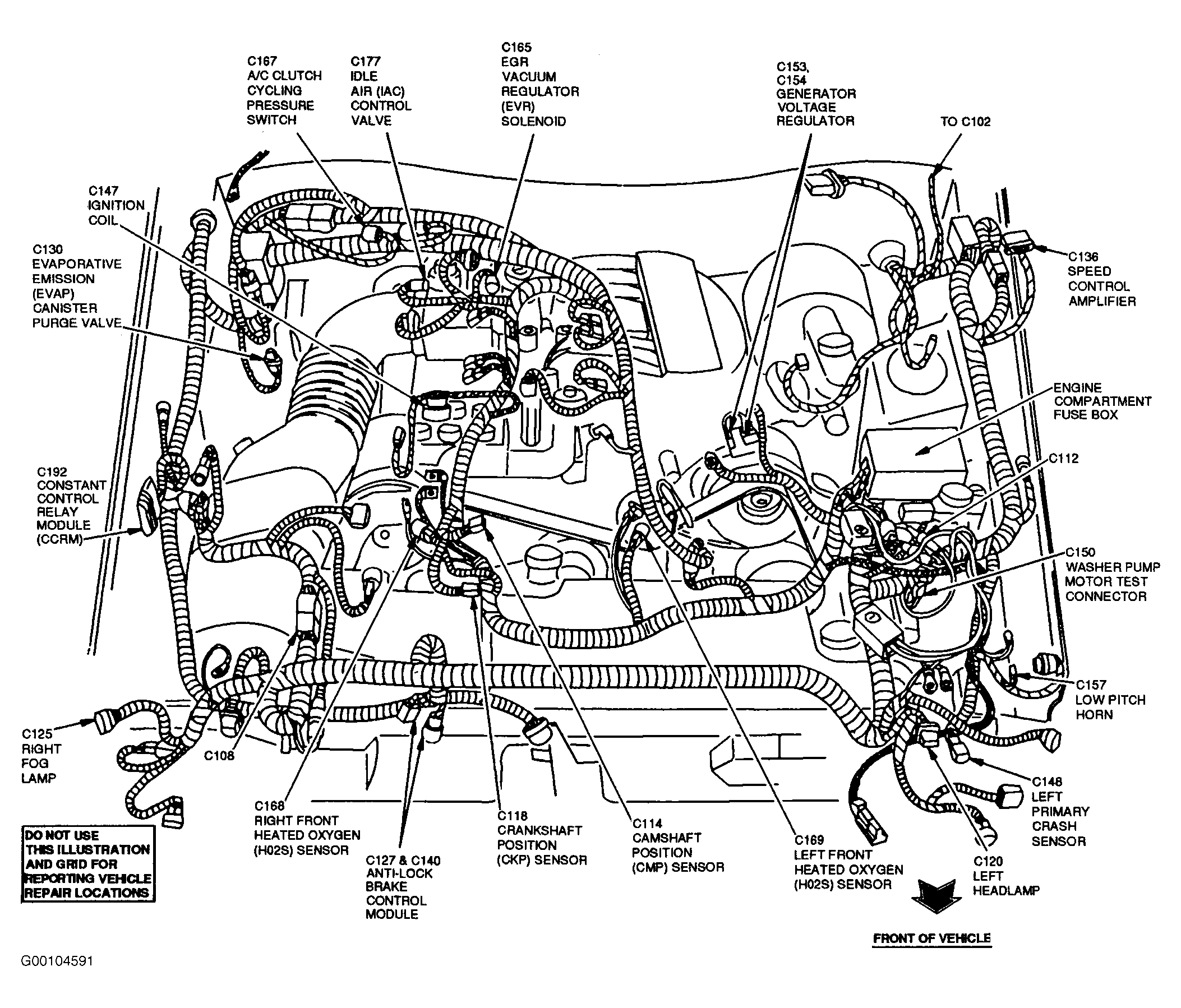

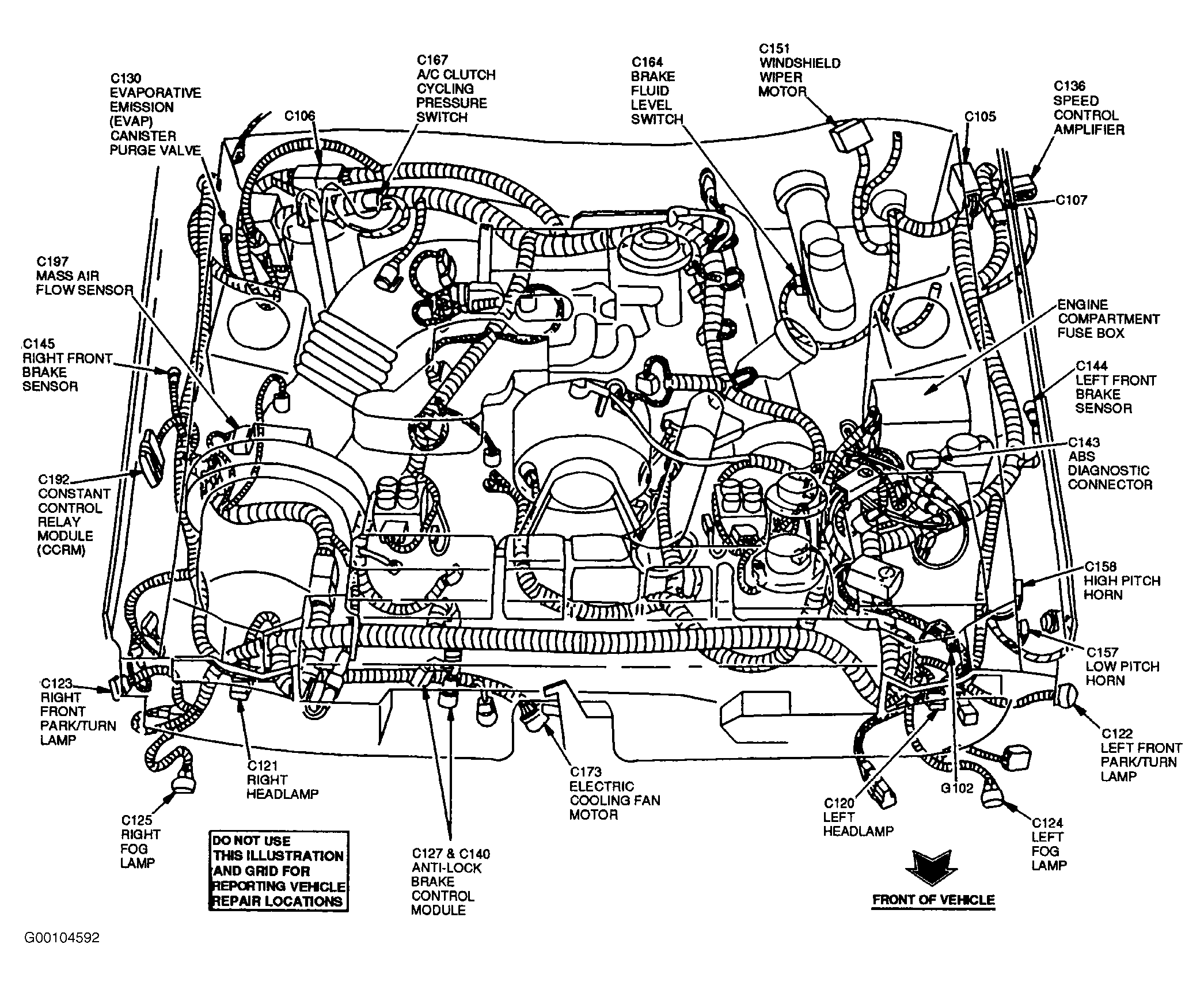

NOTE: CCRM is located on bracket, behind engine coolant reservoir. See Figure or Figure .
