Engine Compartment Fuse Box

NOTE: Engine compartment fuse box is located on driver's side of engine compartment. See Fig 1, Fig 2 or Fig 3 .

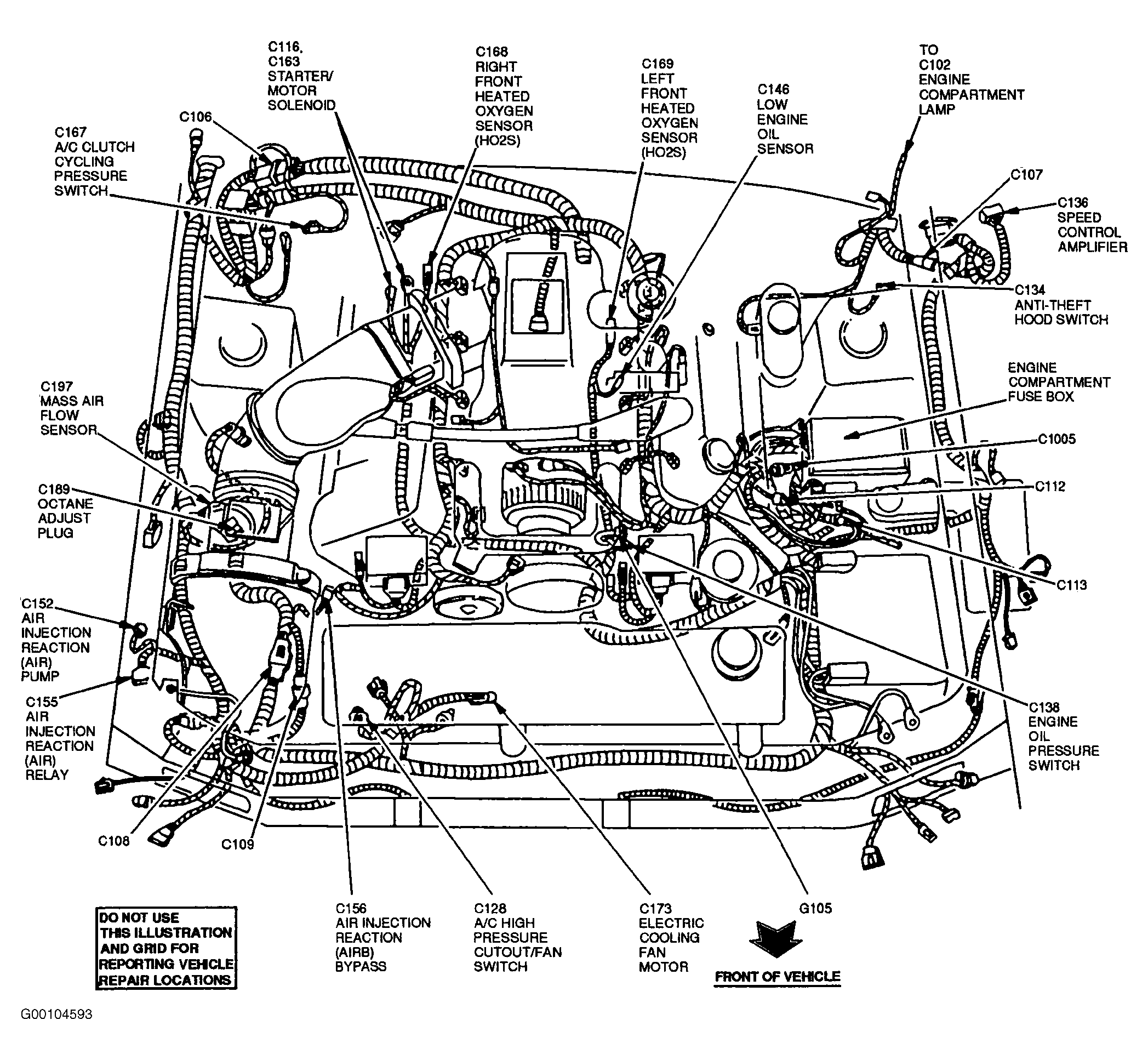

Fig 1: Locating Engine Compartment Electrical Components (3.8L)

Courtesy of FORD MOTOR CO.

Fig 2: Locating Engine Compartment Electrical Components (4.6L - 2V)

Courtesy of FORD MOTOR CO.

Fig 3: Locating Engine Compartment Electrical Components (4.6L - 4V)

Courtesy of FORD MOTOR CO.

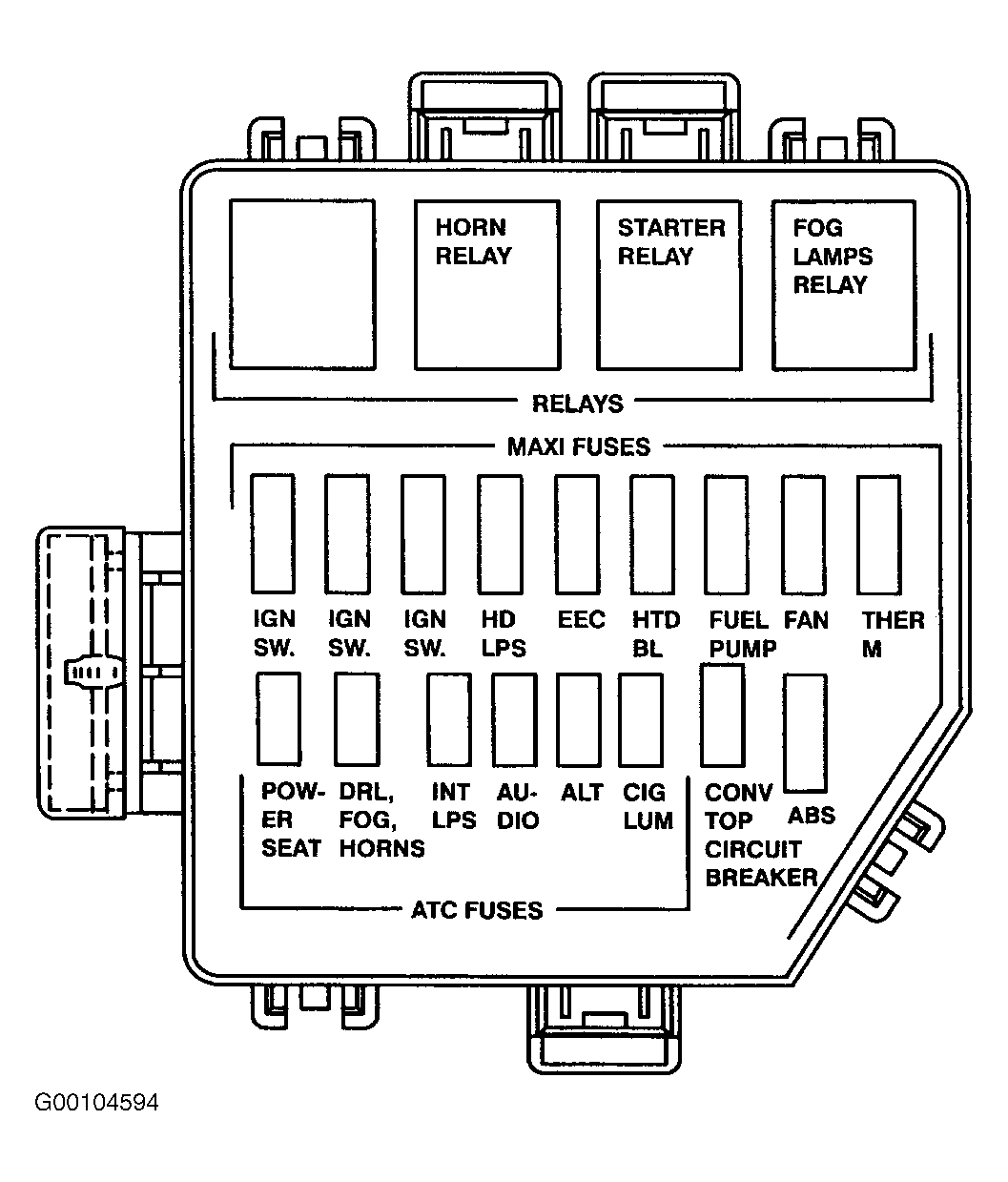

Fig 4: Identifying Engine Compartment Fuse Box Components

Courtesy of FORD MOTOR CO.

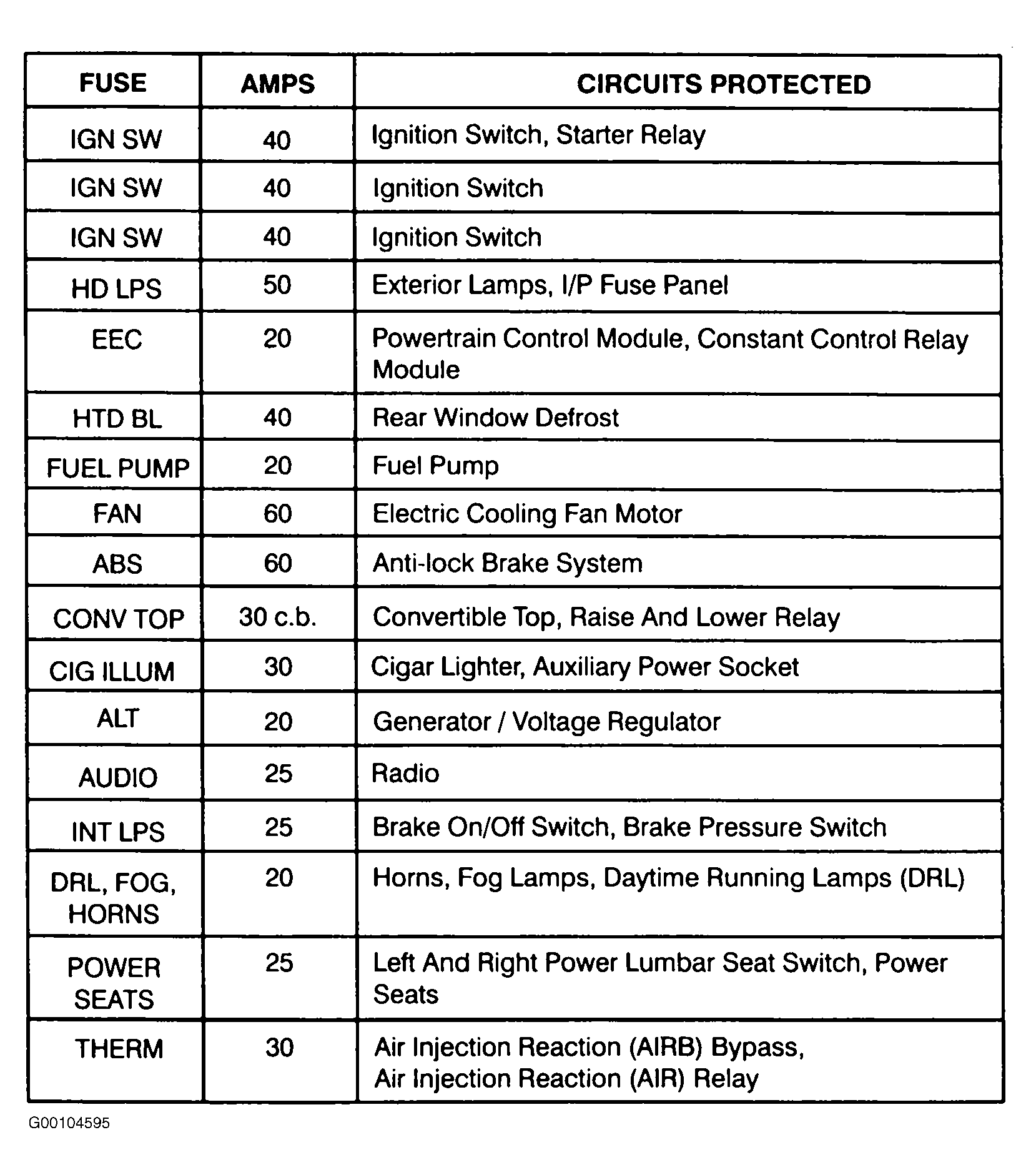

Fig 5: Engine Compartment Fuse Box Legend

Courtesy of FORD MOTOR CO.
