Transmission Disassembly
NOTE:
See Figure
and Figure

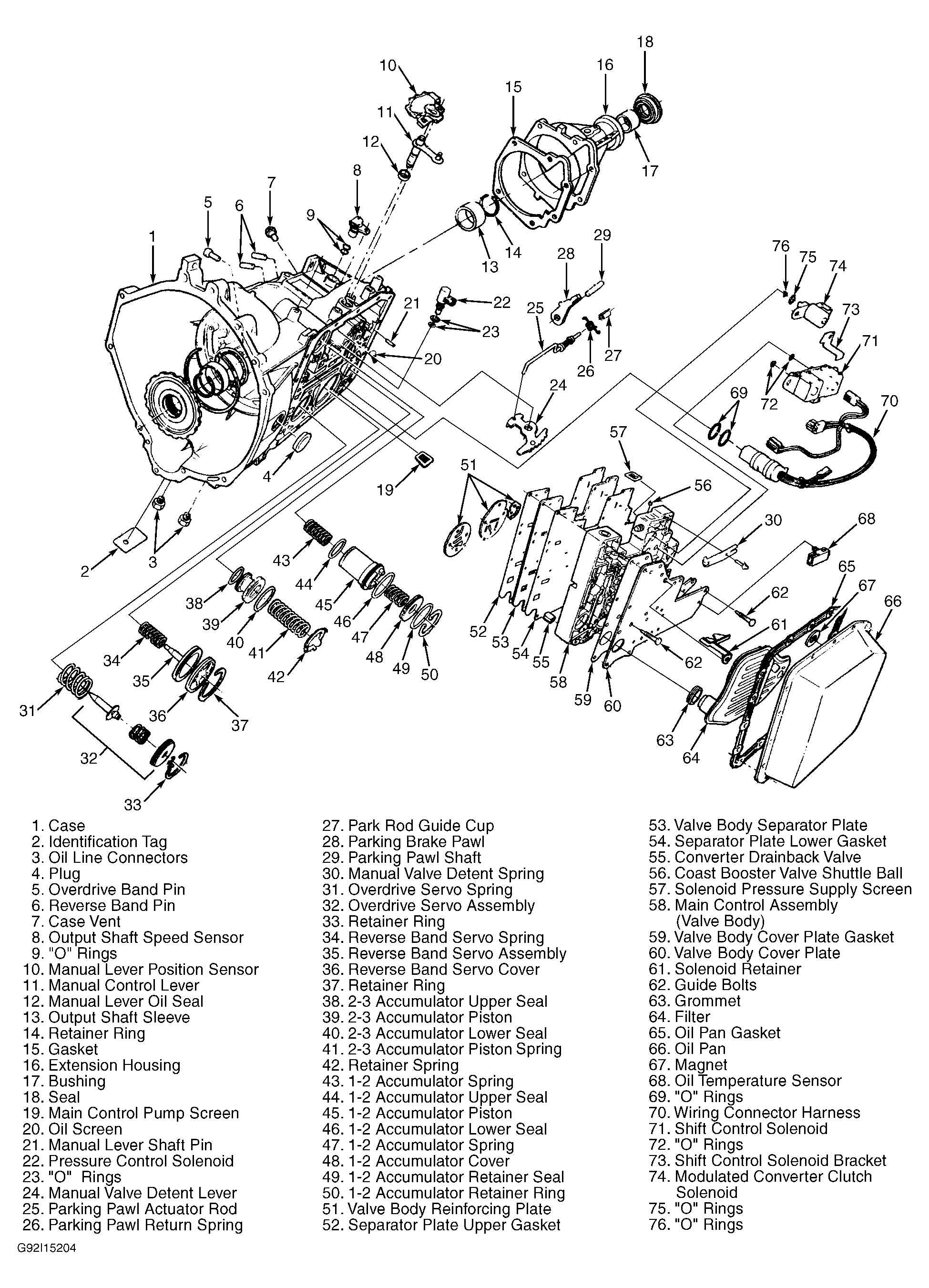

for exploded view of internal parts, thrust washer and needle bearing locations.
- Remove torque converter. Mount transmission in holding fixture. Remove oil pan and gasket. Remove oil filter, grommet, and gasket. Disconnect all solenoid and sensor harness connectors. Unbolt and remove Output Shaft Sensor (OSS).
- Remove outer nut and manual control lever. Remove TR sensor. Remove manual valve detent spring. Remove 24 valve body retaining bolts and lift off valve body and gasket. Note bolt positions for reassembly. Using diagonal cutters, remove retaining roll pin from manual shaft lever. Remove inner nut, manual lever shaft, detent lever and parking lever actuating rod.
- Slide out Electronic Pressure Control (EPC) solenoid and remove. Remove 2-3 accumulator assembly, low-reverse servo assembly, overdrive servo and 1-2 accumulator assembly by pushing down on servo covers and removing retaining snap rings. Note length of low-reverse servo piston rod, 1-2 shift accumulator piston and 1-2 shift springs for reassembly reference. See Figure
and Fig 1
.NOTE: Length of low-reverse piston rod may vary. Three possible rod lengths are available.
- Remove oil screen. See Fig 1
. If necessary, remove extension housing seal and bushing. Remove retaining bolts and slide extension housing from transmission. Remove and discard housing-to-case gasket. Remove parking pawl shaft, parking pawl and return spring. Push transmission harness connector out through bottom of case.NOTE: The output shaft may have shipping seal still attached. Remove and discard seal. Seal is not required for assembly.
- Remove front pump seal. Remove pump body retaining bolts. Remove pump from case using 2 slide hammers installed in opposite pump retaining bolt holes. Remove pump-to-case gasket.
- Grasp forward clutch cylinder and shaft and pull intermediate clutch pack, intermediate one-way clutch, reverse clutch, and forward clutch from transmission case as an assembly. Disconnect overdrive band from anchor pins and remove band from case.
- Remove forward clutch hub and No. 3 needle bearing as an assembly. Remove intermediate stub shaft. Rotate reverse clutch gear and shell to align indent with overdrive band anchor pin. Remove forward sun gear, No. 5 needle bearing, reverse sun gear and drive shell, and No. 4 needle bearing from case as an assembly.
- Note position of center support snap ring tangs for installation reference. Remove snap ring. Using a screwdriver, pry anti-clunk spring from between center support and case. Prior to removal, note position of anti-clunk spring to ensure it is reinstalled correctly.
- Remove center support and planetary carrier from case as an assembly. Remove reverse band from case. If direct clutch hub did not come out with planetary carrier, remove it from direct clutch.
- Remove output shaft, ring gear, and direct clutch as an assembly through front of case. Remove output shaft No. 9 needle bearing from rear of case. Remove intermediate clutch pack from one-way clutch. Remove reverse clutch assembly from forward clutch assembly.
