Valve Body (Main Control) Assembly: Disassembly

  1. Remove and discard valve body gasket. Remove retaining bolts. Remove separator plate, reinforcement plates, and separator plate gasket. Discard gasket.

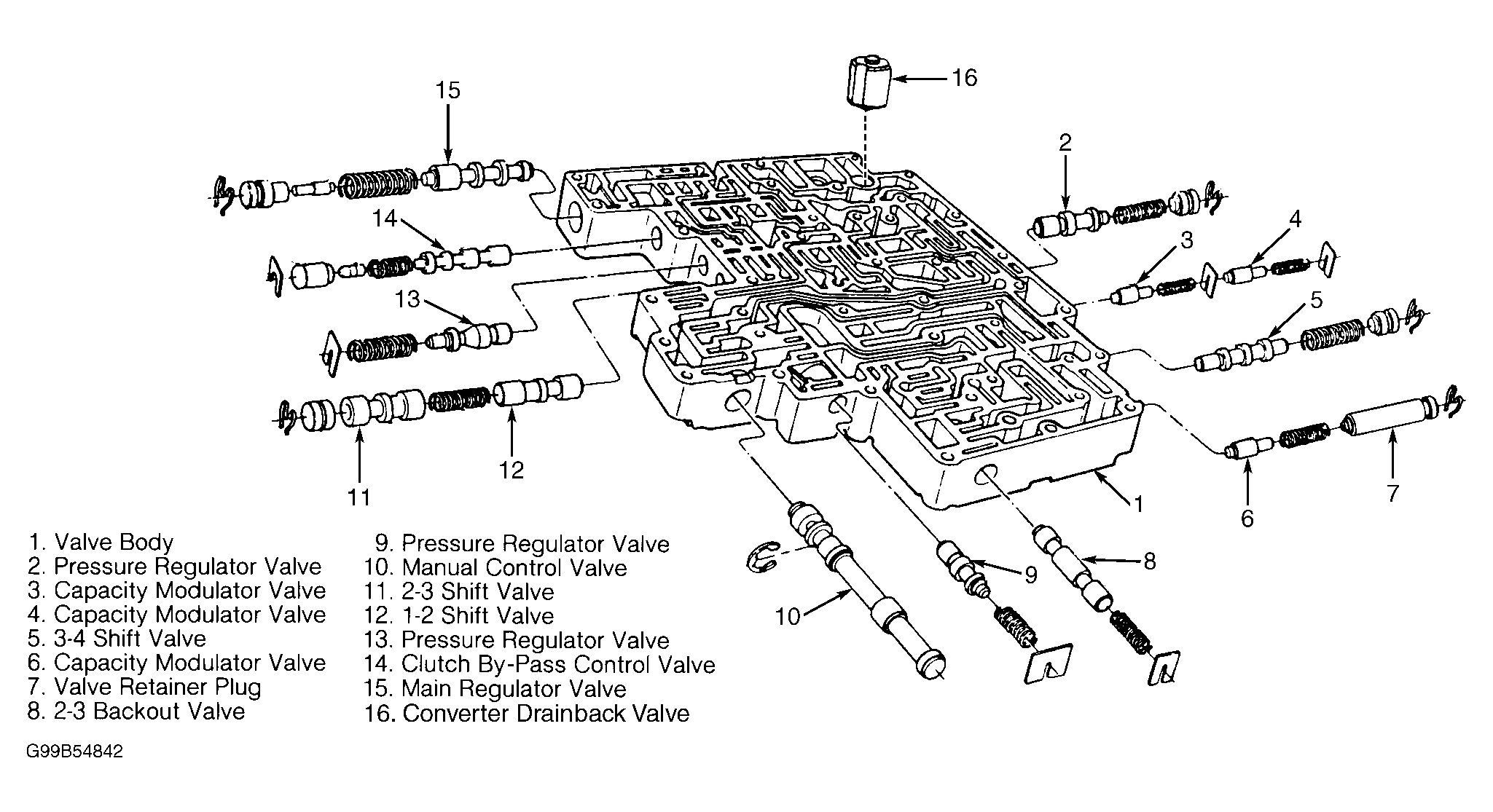

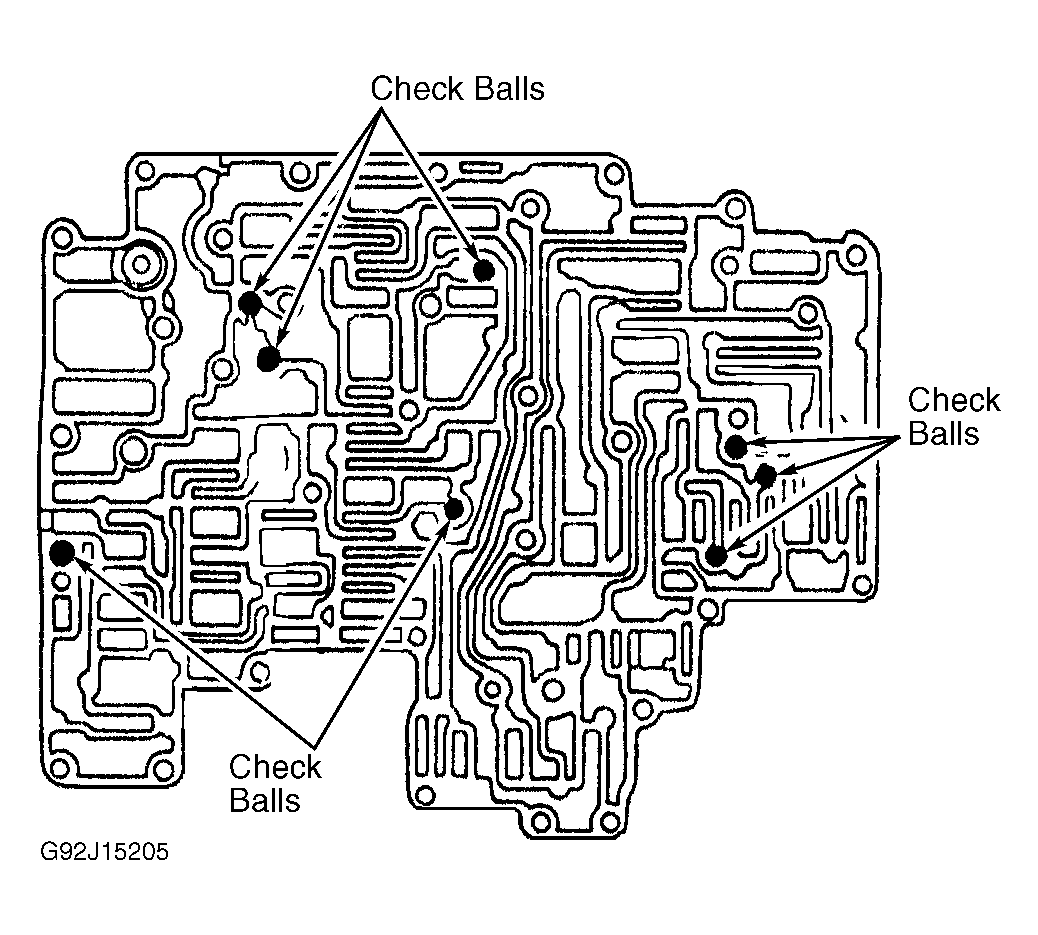

  2. Remove 8 check balls from valve body. See Figure . Remove retaining plates, valves and springs. Keep all valves and springs in original order for reassembly reference. See Figure .
