Riding Height Adjustment

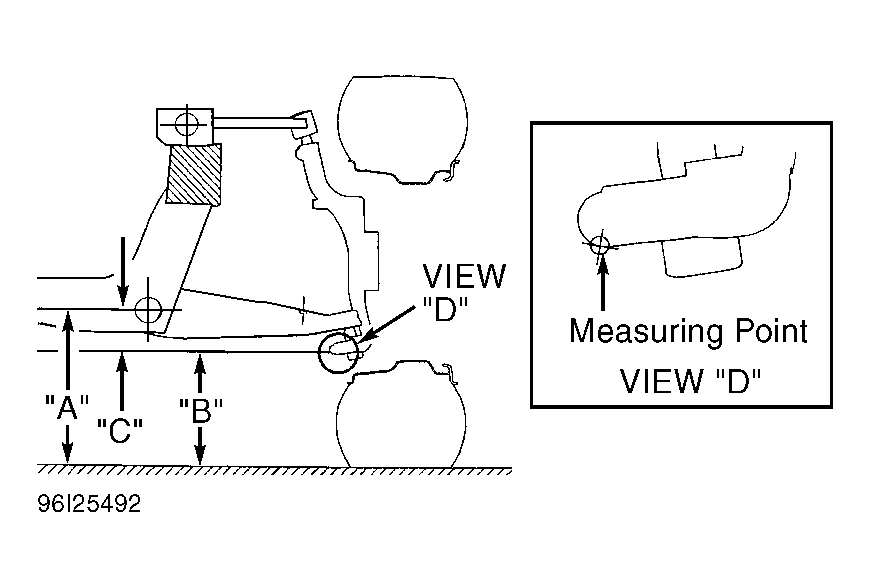

On models equipped with Automatic Ride Control (ARC, air suspension), raise and disconnect air lines at shock absorbers. On all models, bounce vehicle front and rear suspension. Measure and record dimension "A" between lower control arm pivot bolt head and ground. See Fig 1 . Measure and record dimension "B" between lowest point on steering knuckle and ground. Subtract dimension "B" from dimension "A" to obtain ride height. See RIDE HEIGHT SPECIFICATIONS TABLE.
RIDE HEIGHT SPECIFICATIONS
| Type | In. (mm) | |
|---|---|---|
| New Torsion Bars | ||
| With ARC | 3.27-3.50 (83-89) | |
| Without ARC | 4.33-4.57 (110-116) | |
| Used Torsion Bars | ||
| With ARC | 2.72-3.50 (69-89) | |
| Without ARC | 3.58-4.37 (91-111) | |
