Visual Inspection - Electrical

• Blown Fuse(s) and Relays; Turn, Hazard, High/Low LH Headlights, High/Low RH Headlights
• Damaged Miniature Bulbs
• Damaged Wiring Harness
• Loose Or Corroded Connections
• Damaged Vehicle Speed Sensor
• Damaged Instrument Cluster
• Damaged Light Switches

Verify charging system, safety belt warning chime, turn signals, headlights and cruise control are working properly. Inspect wiring harness for obvious signs of shorts, opens, bad connections or damage.

Fig 1: Connector PCM Connector ID (Explorer)

Courtesy of FORD MOTOR CO.

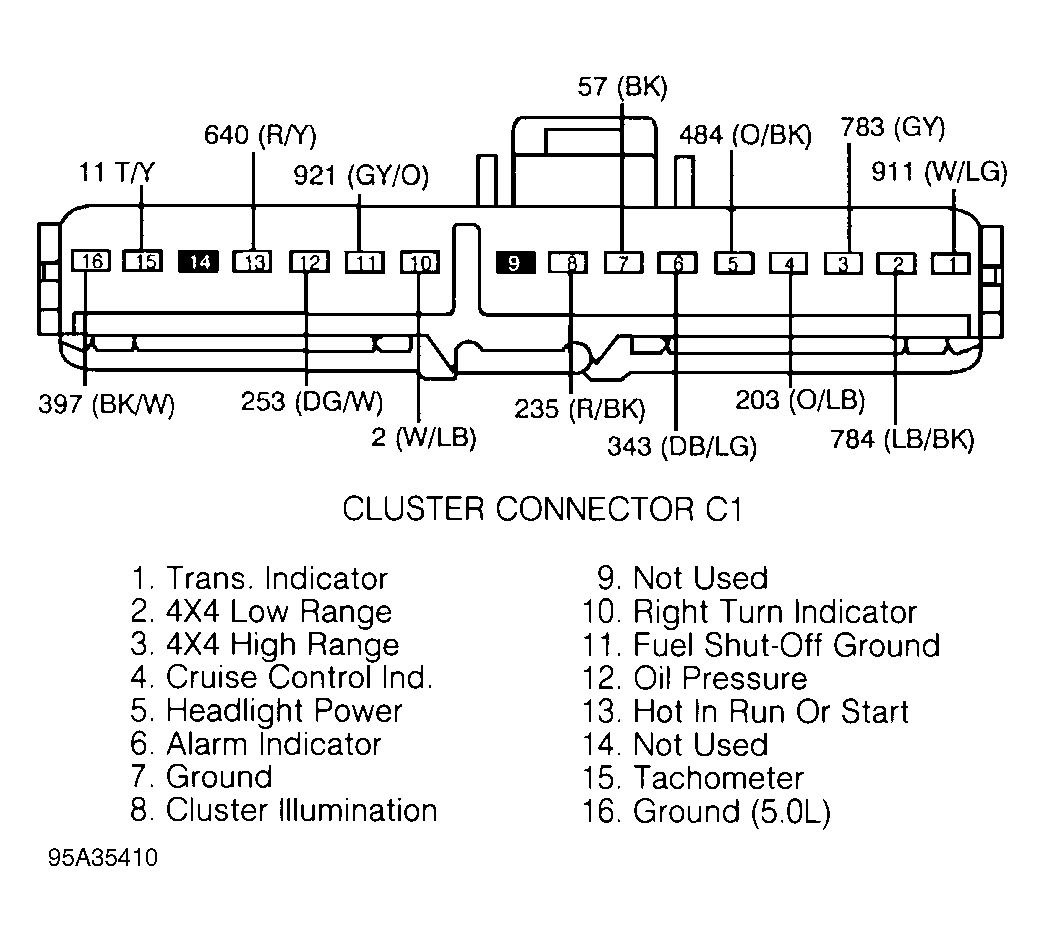

Fig 2: Instrument Cluster Connector C1 ID (Explorer)

Courtesy of FORD MOTOR CO.

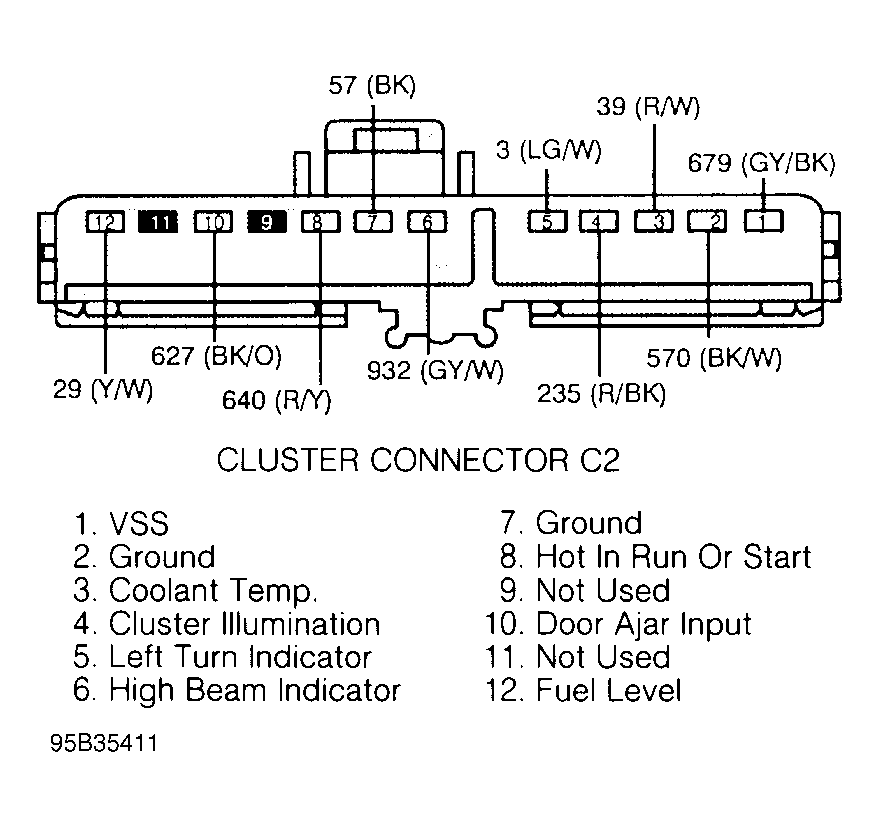

Fig 3: Instrument Cluster Connector C2 ID (Explorer)

Courtesy of FORD MOTOR CO.

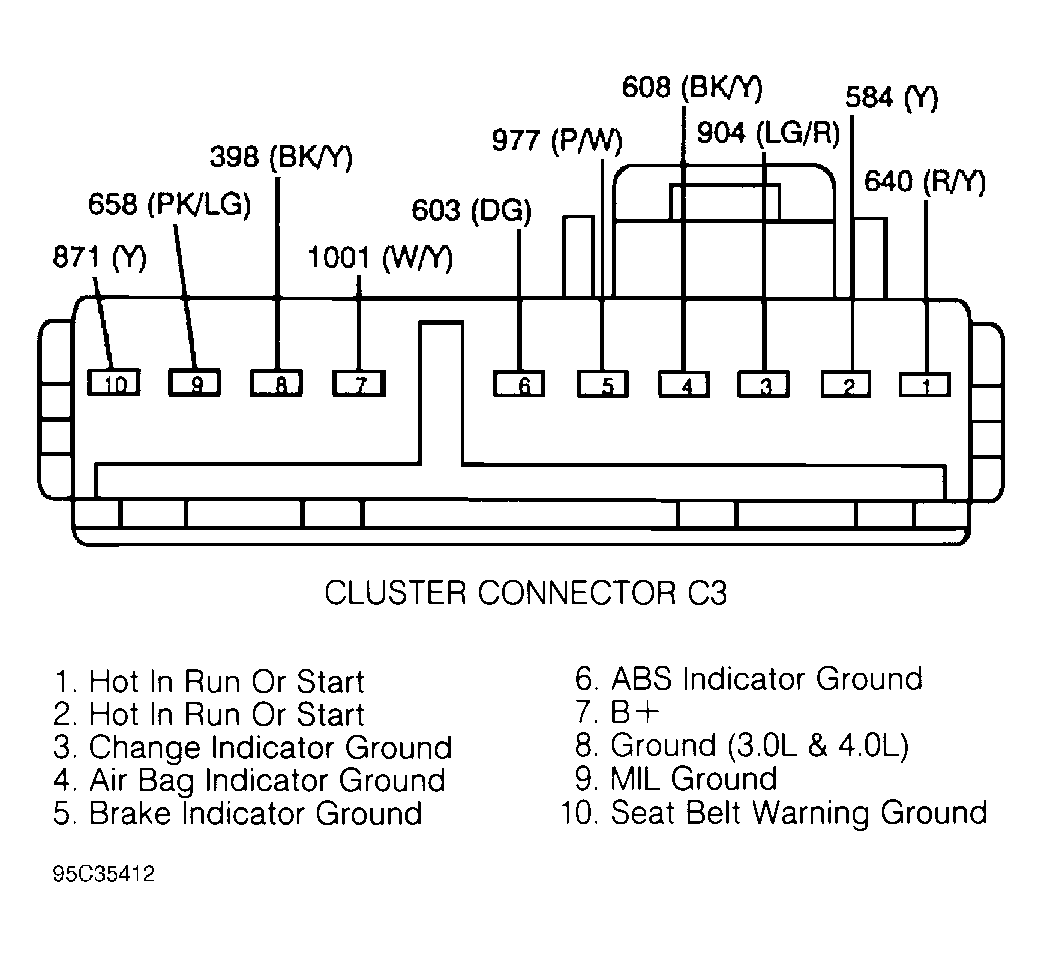

Fig 4: Instrument Cluster Connector C3 ID (Explorer)

Courtesy of FORD MOTOR CO.
