Clutch Pedal Position (CPP) Switch

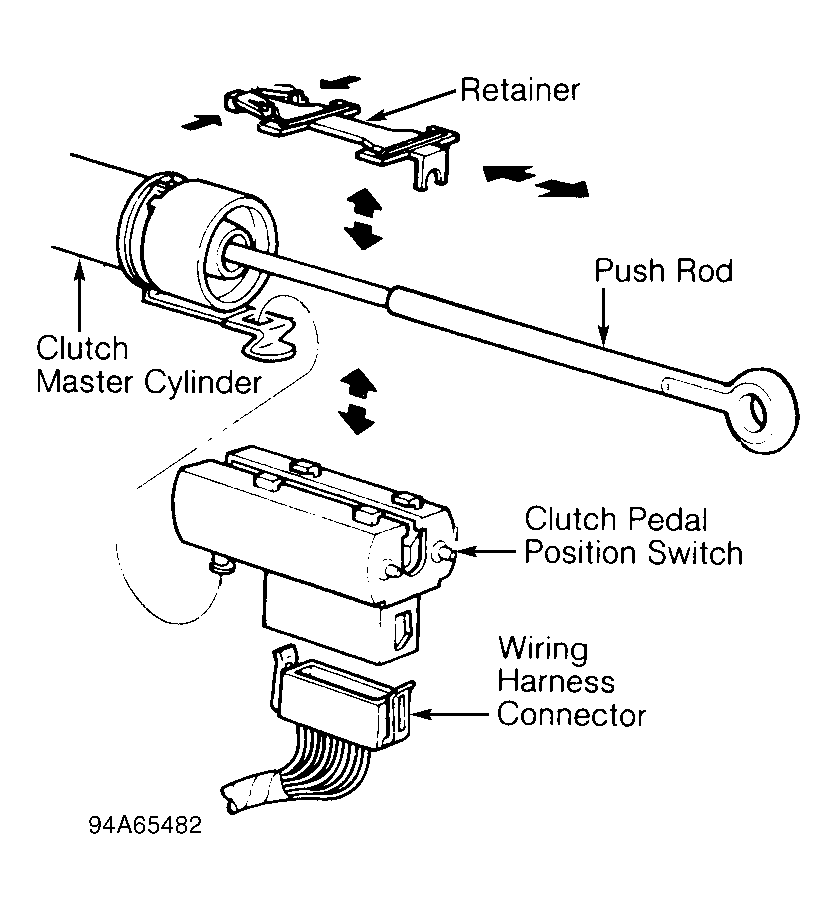

Disconnect wiring harness connector from the CPP switch. Using an ohmmeter, check for continuity between the appropriate terminals. See CLUTCH PEDAL POSITION (CPP) SWITCH TESTING table. Also see Fig 1 . Switch should be open (infinity) when pedal is up and clutch is engaged. Switch should be closed (zero ohms) when clutch pedal is pressed to floor. If switch does not function as specified, replace switch. See Fig 2 .
CLUTCH PEDAL POSITION (CPP) SWITCH TESTING
| Vehicle Model | Measure Between Terminals No. (Wire Color) | |
|---|---|---|
| Explorer | 5 (Pink) & 6 (White/Pink) | |
| Ranger | ||
| Equipped With Anti-Theft | 5 (Pink) & 6 (White/Pink) | |
| Not Equipped With Anti-Theft | 5 (Pink) & 6 (Red/Light Blue) | |
