Rear Suspension: Description

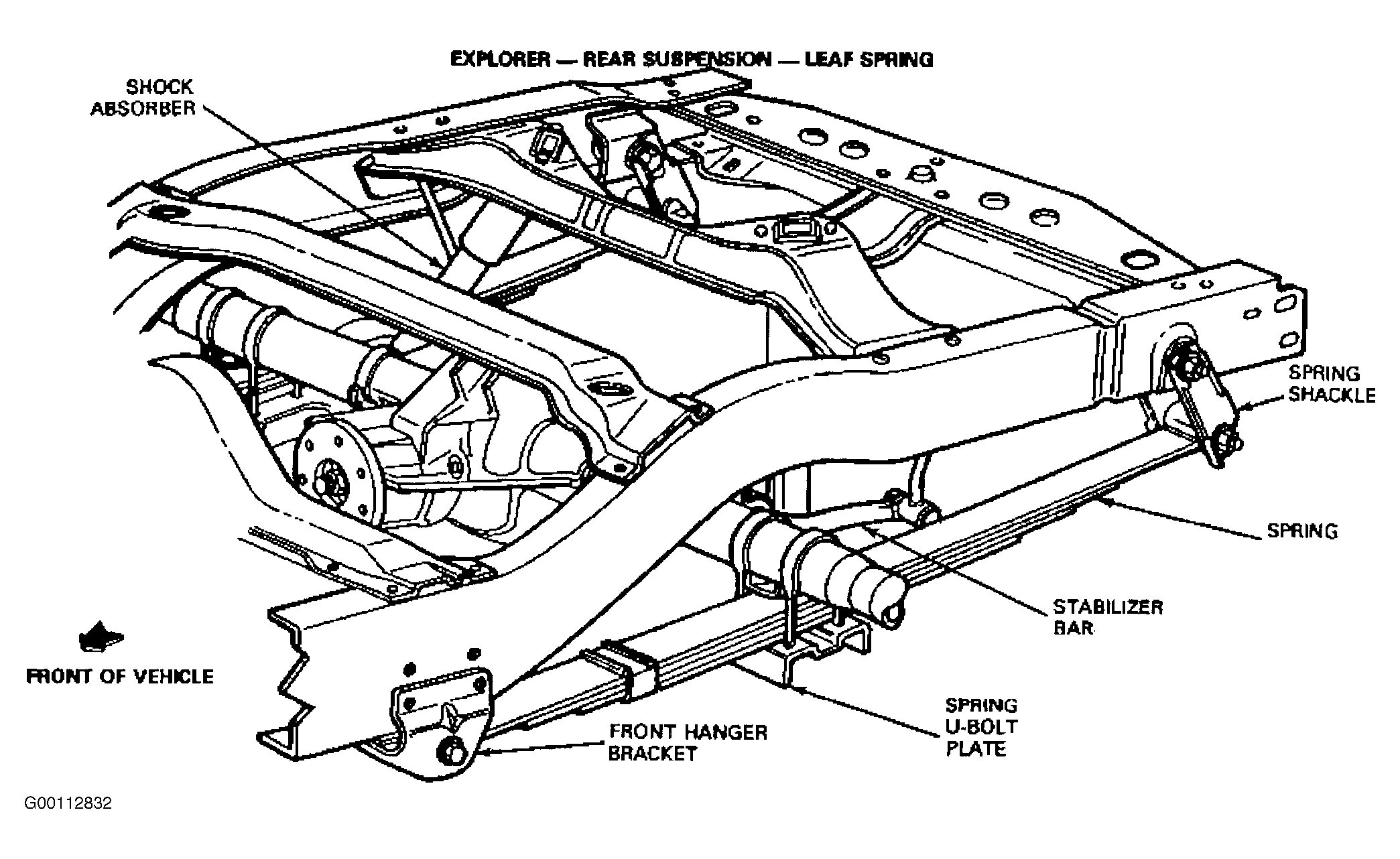

Semi-elliptic, leaf-type springs are used for the rear axle suspension. The forward end of each spring is attached to a bracket on the frame side member. The rear end of each spring is shackled to a bracket on the frame side member. See Fig 1 or Fig 2 .
The low pressure gas shock absorbers are of direct, double-acting type. They provide a continuous dampening effect both on compression and rebound. These shock absorbers are of telescopic design with rubber bushings at the mounting points for quiet operation. The low pressure gas shock absorbers are sealed and charged with nitrogen gas to reduce shock absorber fade and improve vehicle ride. They are non-adjustable units and must be replaced as complete assemblies.
