Power Distribution Box

NOTE: Power distribution box is located on the driver's side of engine compartment, near brake master cylinder. See Figure.

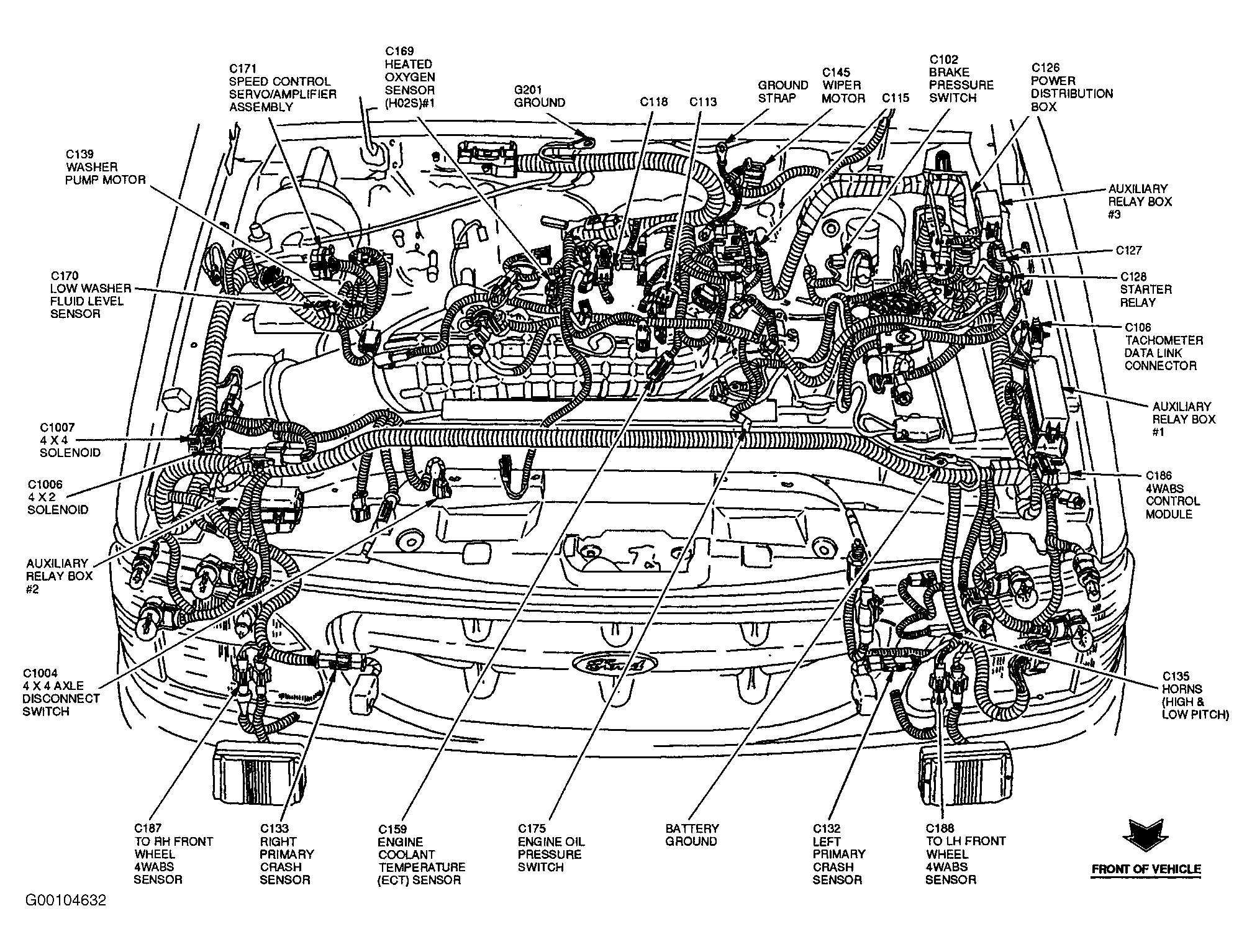

Fig 1: Identifying Power Distribution Box Components

Courtesy of FORD MOTOR CO.

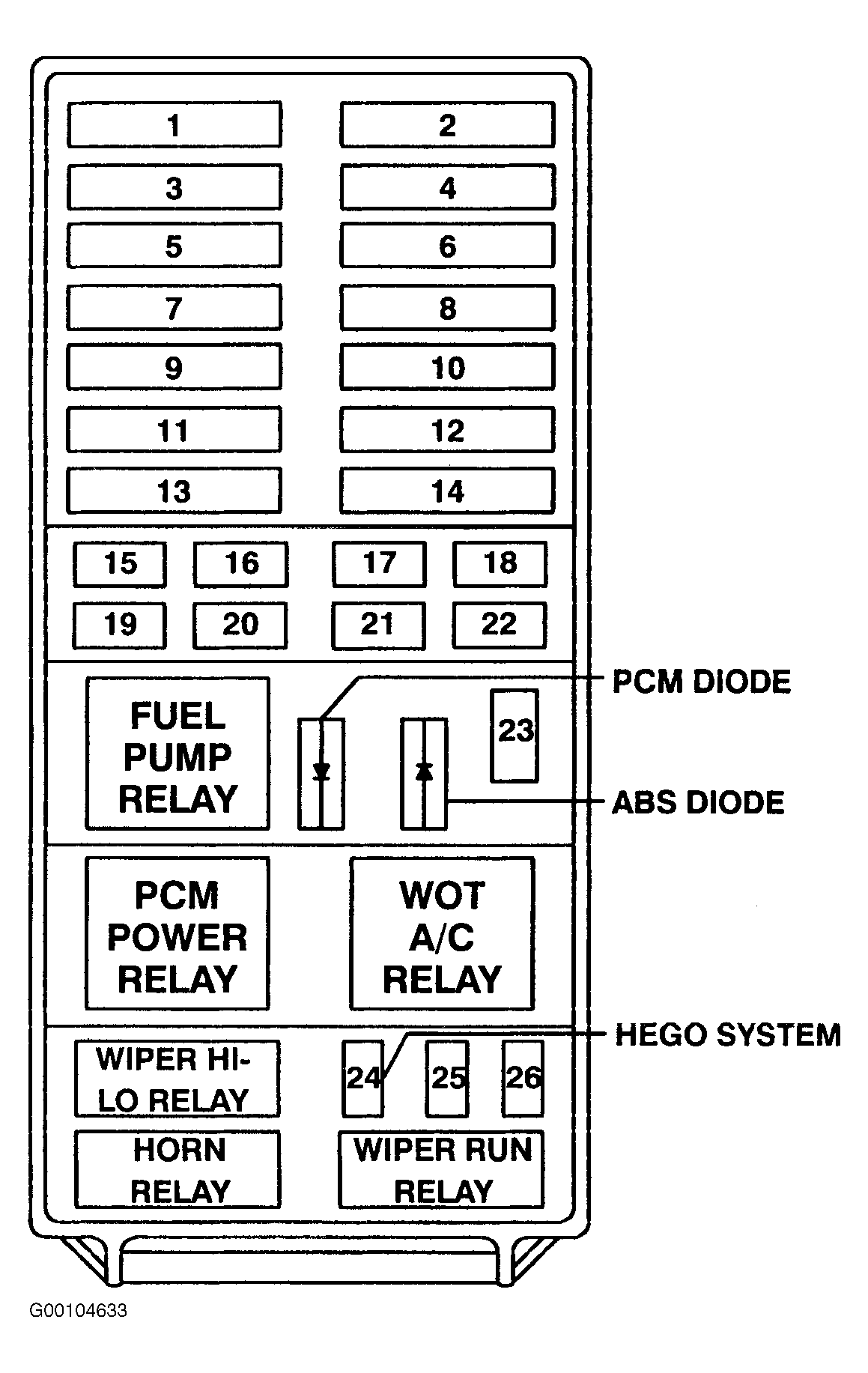

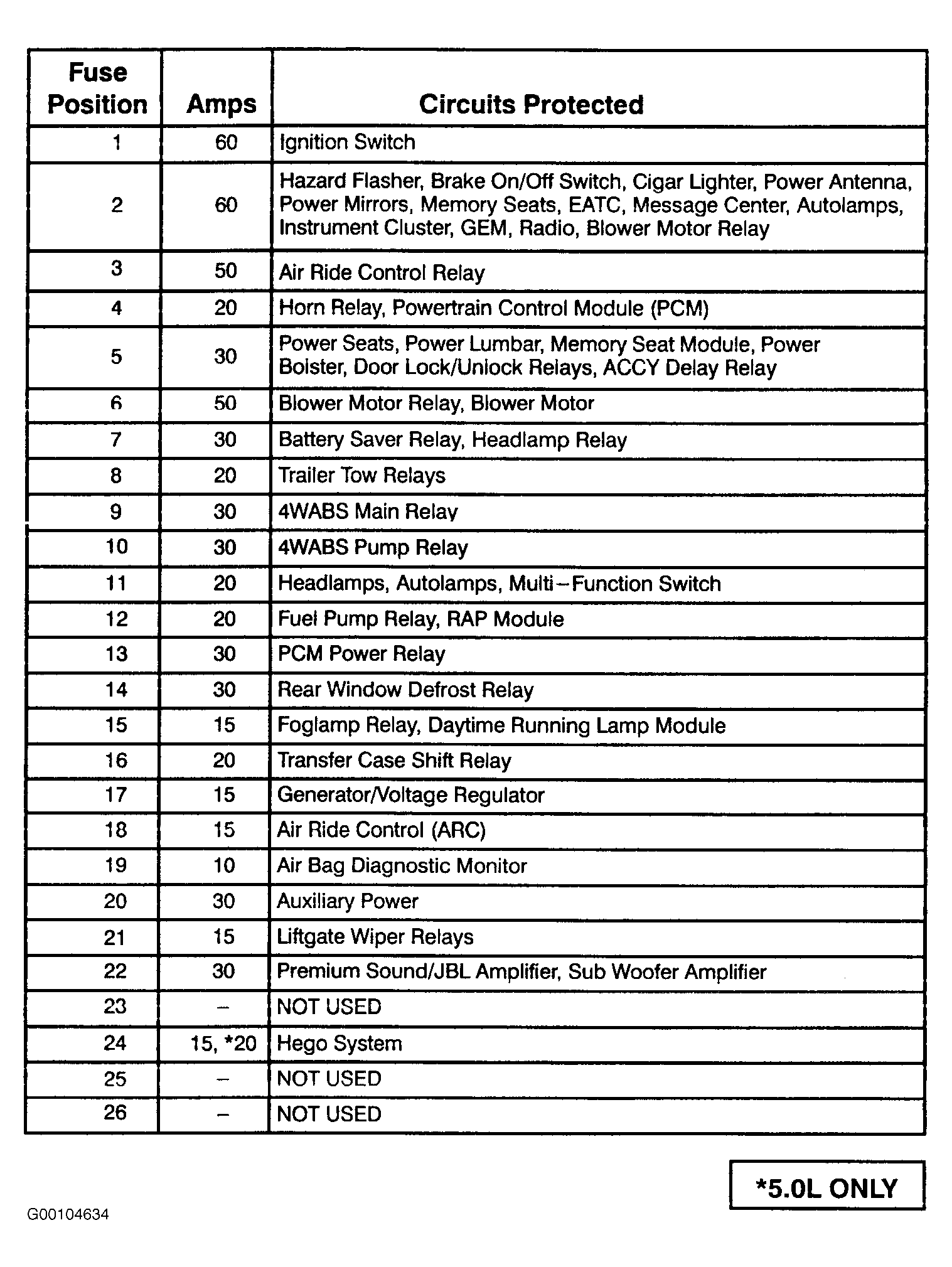

Fig 2: Power Distribution Box Legend

Courtesy of FORD MOTOR CO.
