Interior Fuse Panel

NOTE: Interior fuse panel is located on driver's side end of instrument panel. See Fig 1.

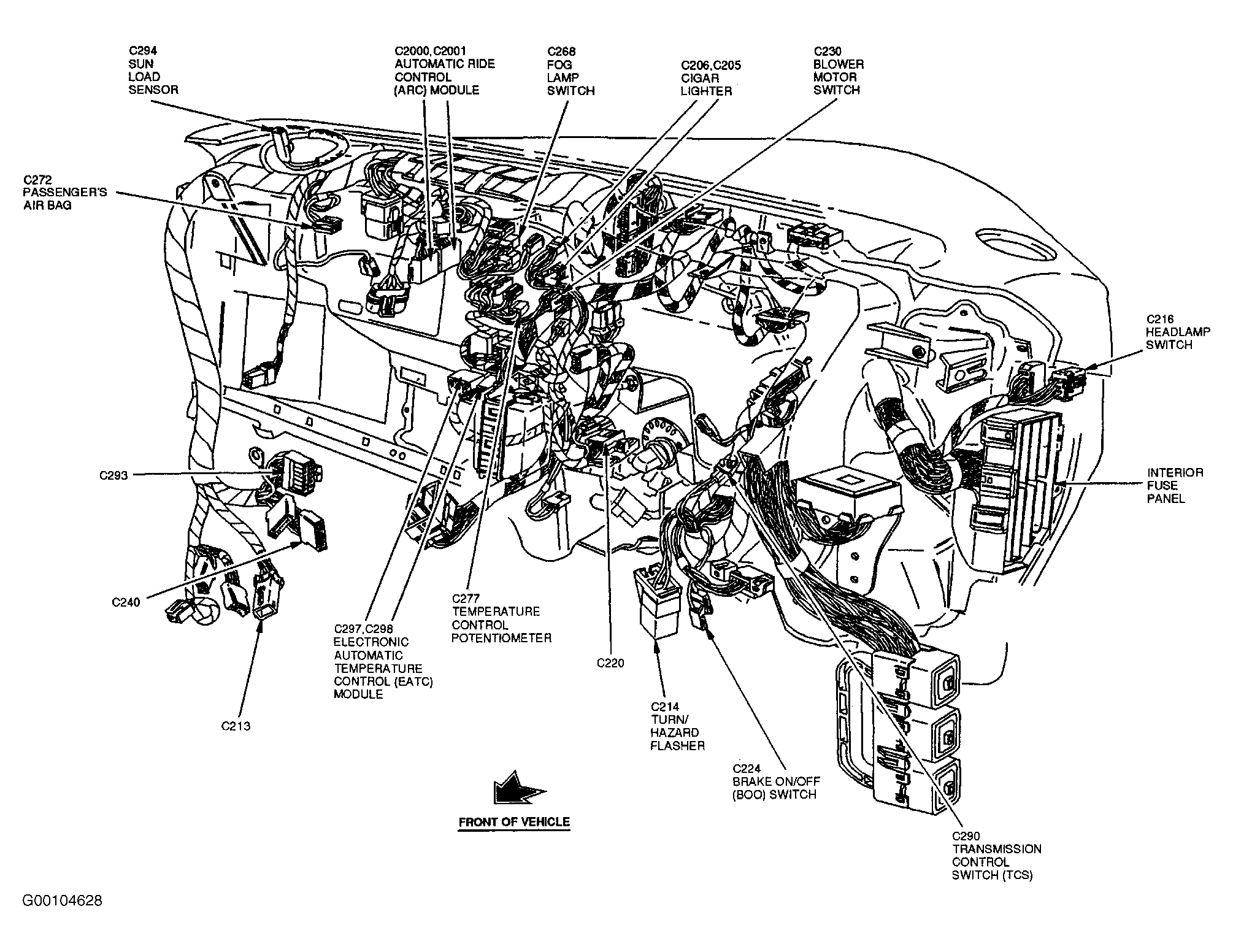

Fig 1: Locating Instrument Panel Electrical Components

Courtesy of FORD MOTOR CO.

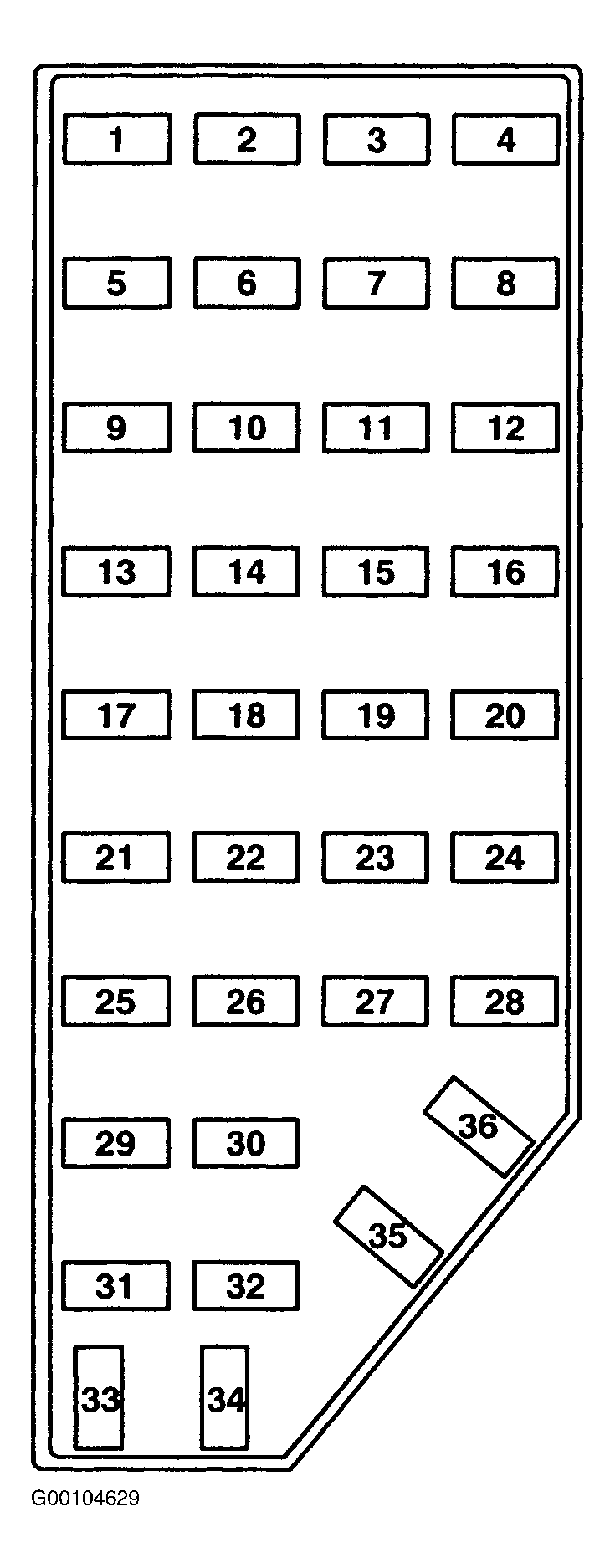

Fig 2: Identifying Interior Fuse Panel Components

Courtesy of FORD MOTOR CO.

Fig 3: Interior Fuse Panel Legend (1 Of 2)

Courtesy of FORD MOTOR CO.

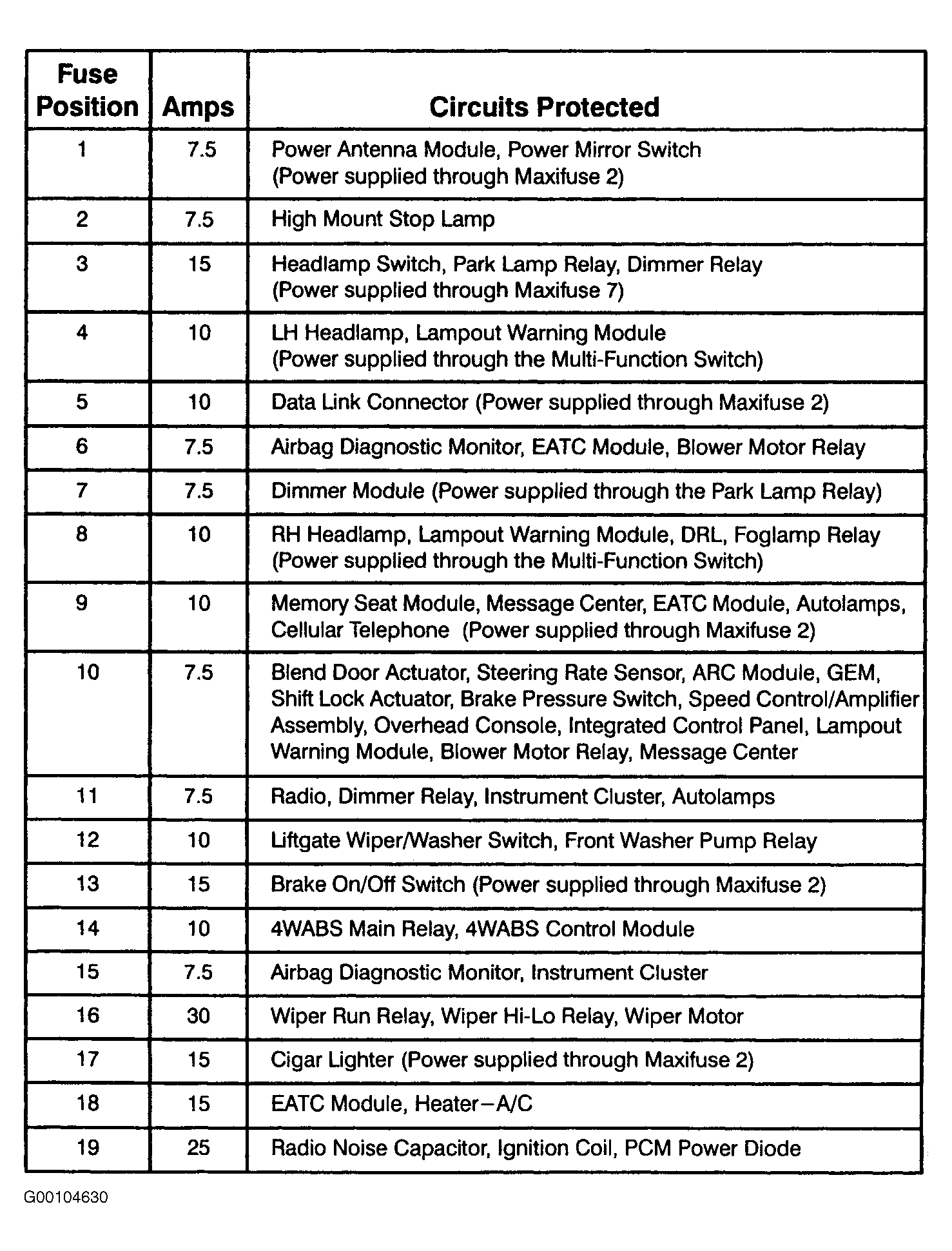

Fig 4: Interior Fuse Panel Legend (2 Of 2)

Courtesy of FORD MOTOR CO.
