Relay Module

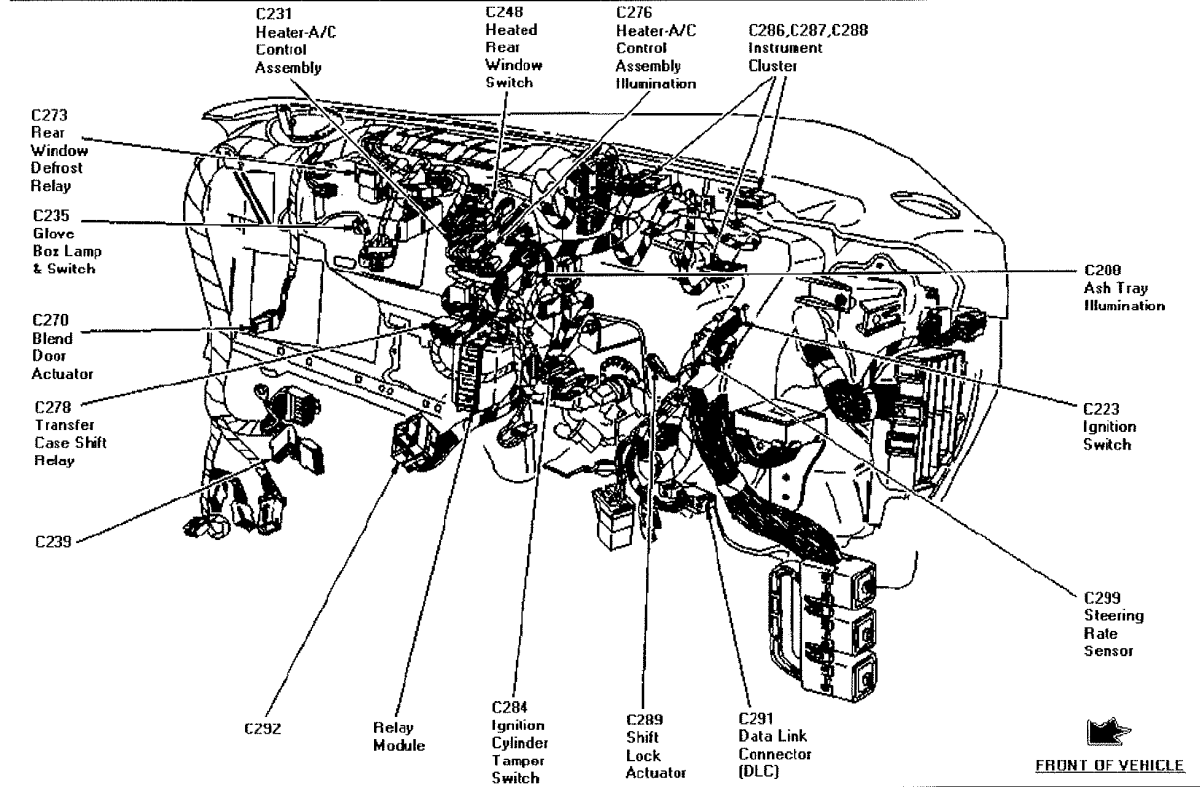

NOTE: Relay module is located behind center of instrument panel. See Figure.

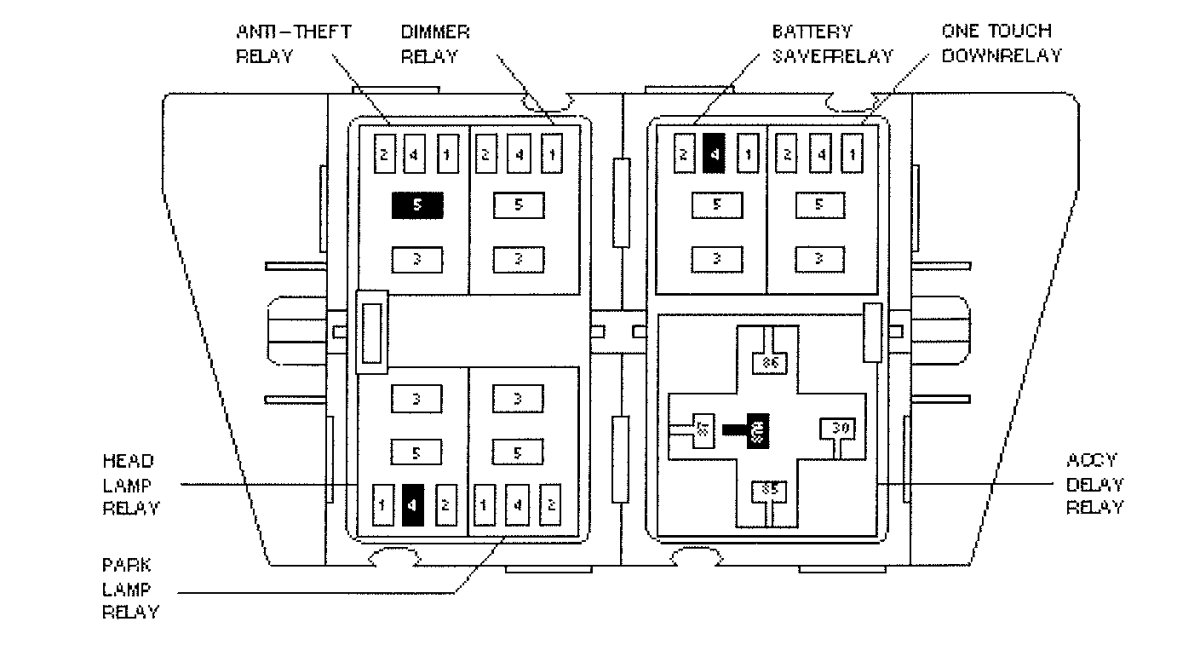

Fig 1: Identifying Relay Module Components

G00522191
