Auxiliary Relay Boxes

NOTE: Auxiliary relay boxes #1 and # 3 (4.0L) are located in left rear of engine compartment and relay box #2 is located in right rear of engine compartment. See Fig 1. Auxiliary relay box is located in left rear of vehicle, above wheel well. No additional information is available from manufacturer.

Fig 1: Locating Engine Compartment Electrical Components

Courtesy of FORD MOTOR CO.

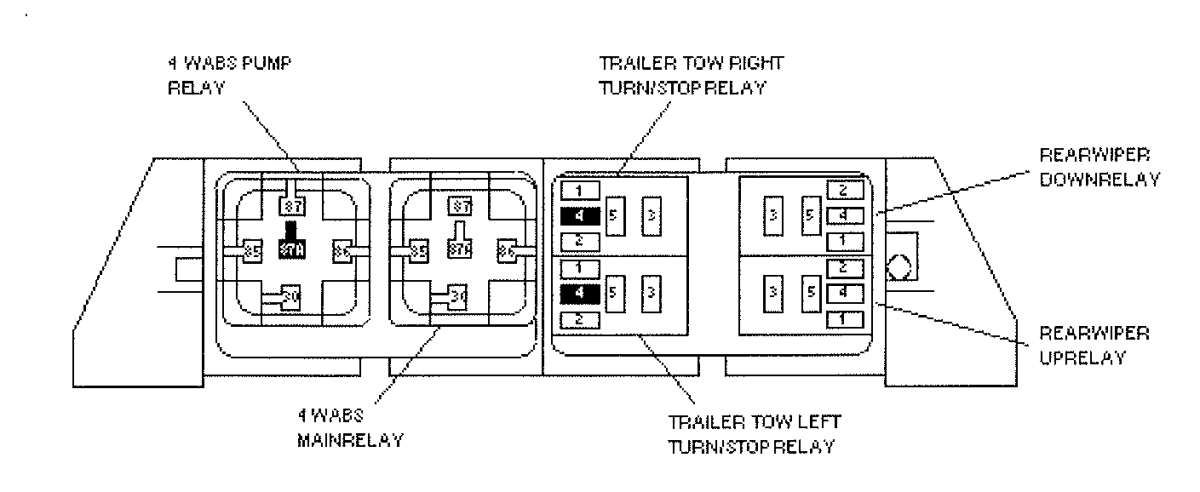

Fig 2: Identifying Auxiliary Relay Box #1 Components

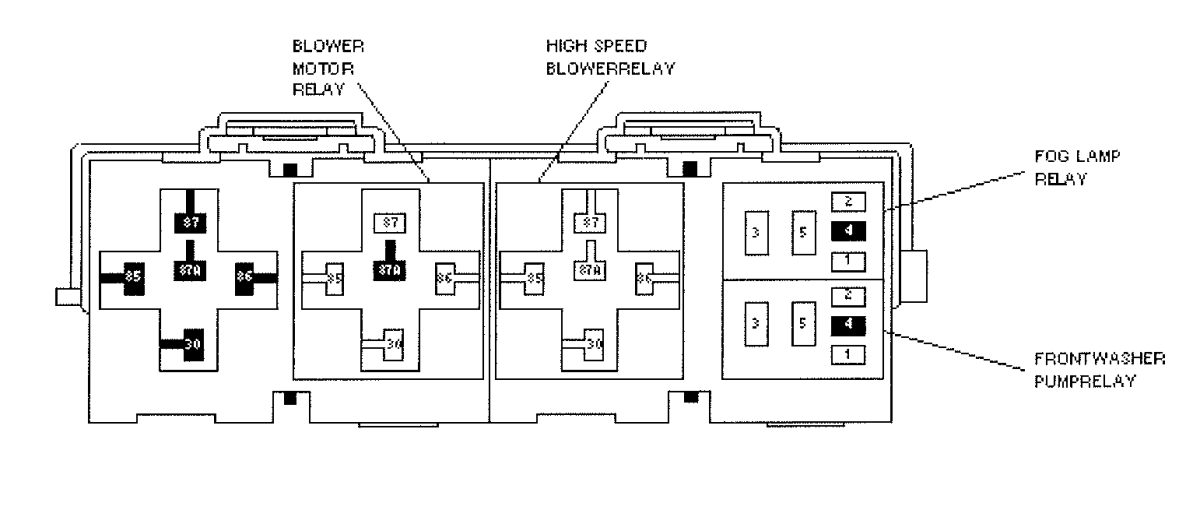

Fig 3: Identifying Auxiliary Relay Box #2 Components

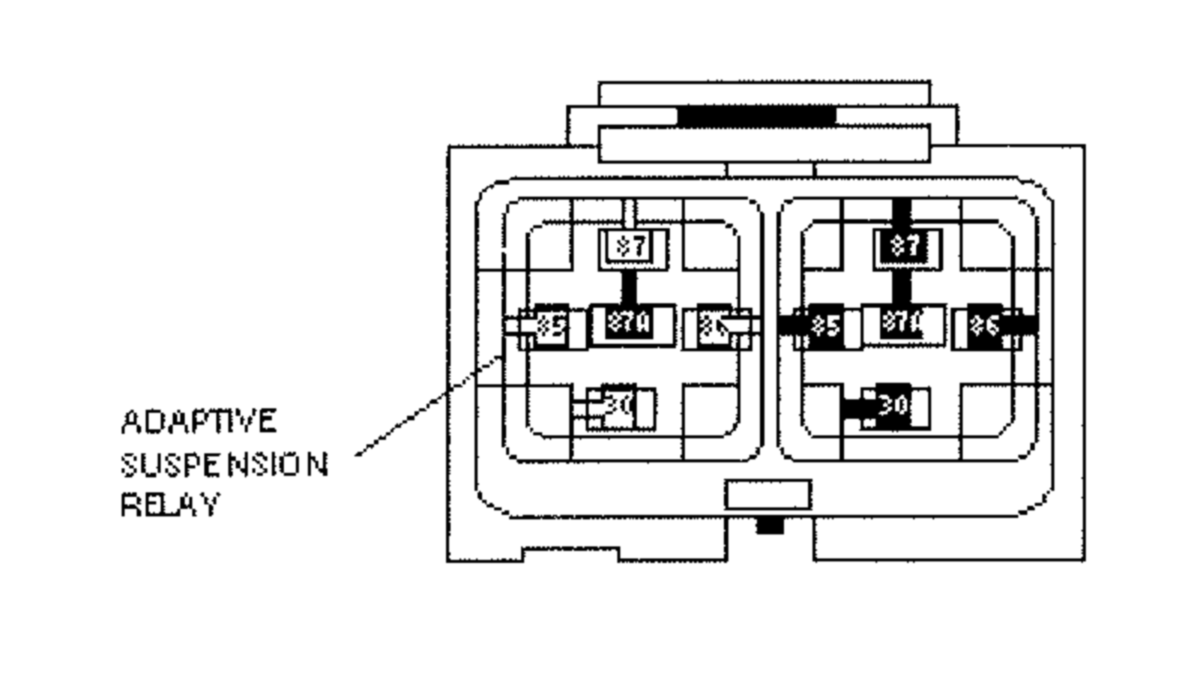

Fig 4: Identifying Auxiliary Relay Box #3 Components

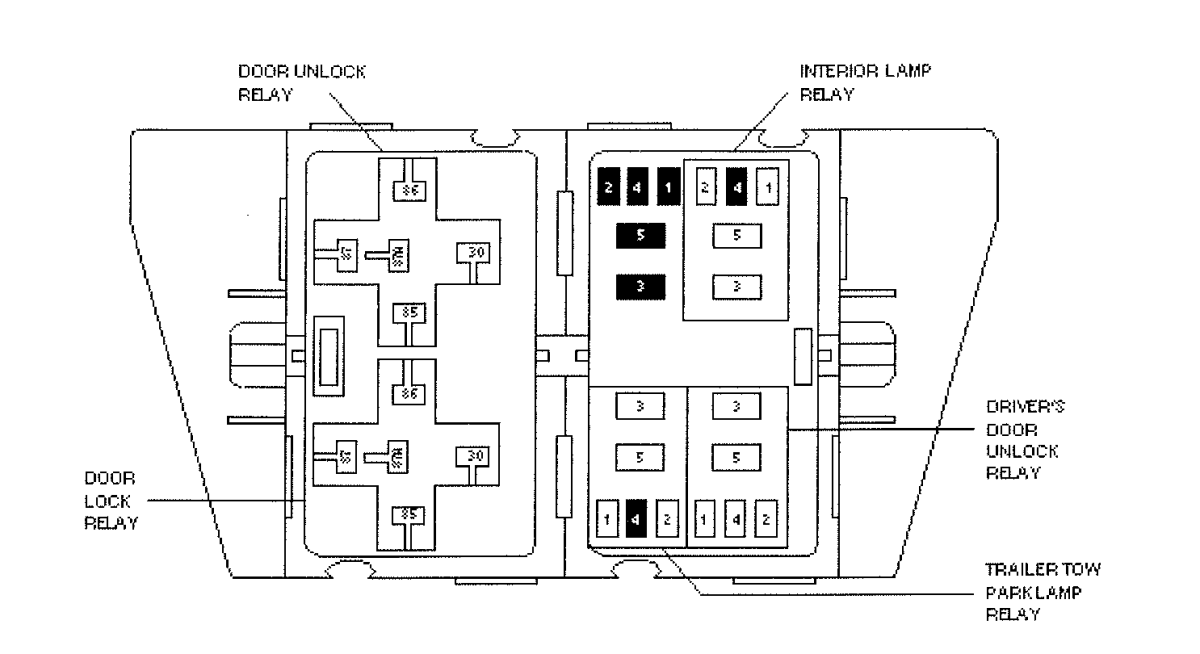

Fig 5: Identifying Auxiliary Relay Box #4 Components
