Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

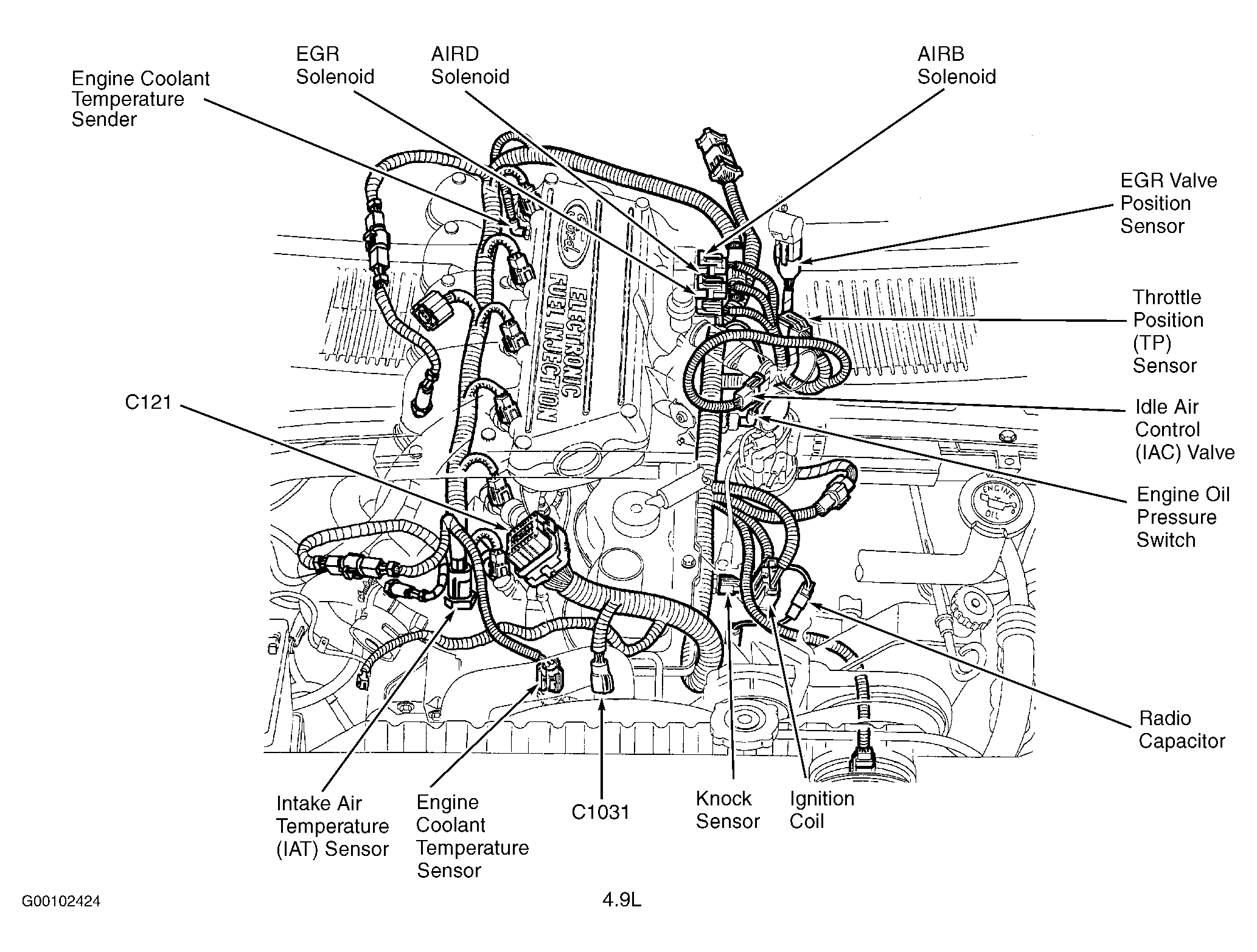

Fig 1: Top Of Engine (4.9L)

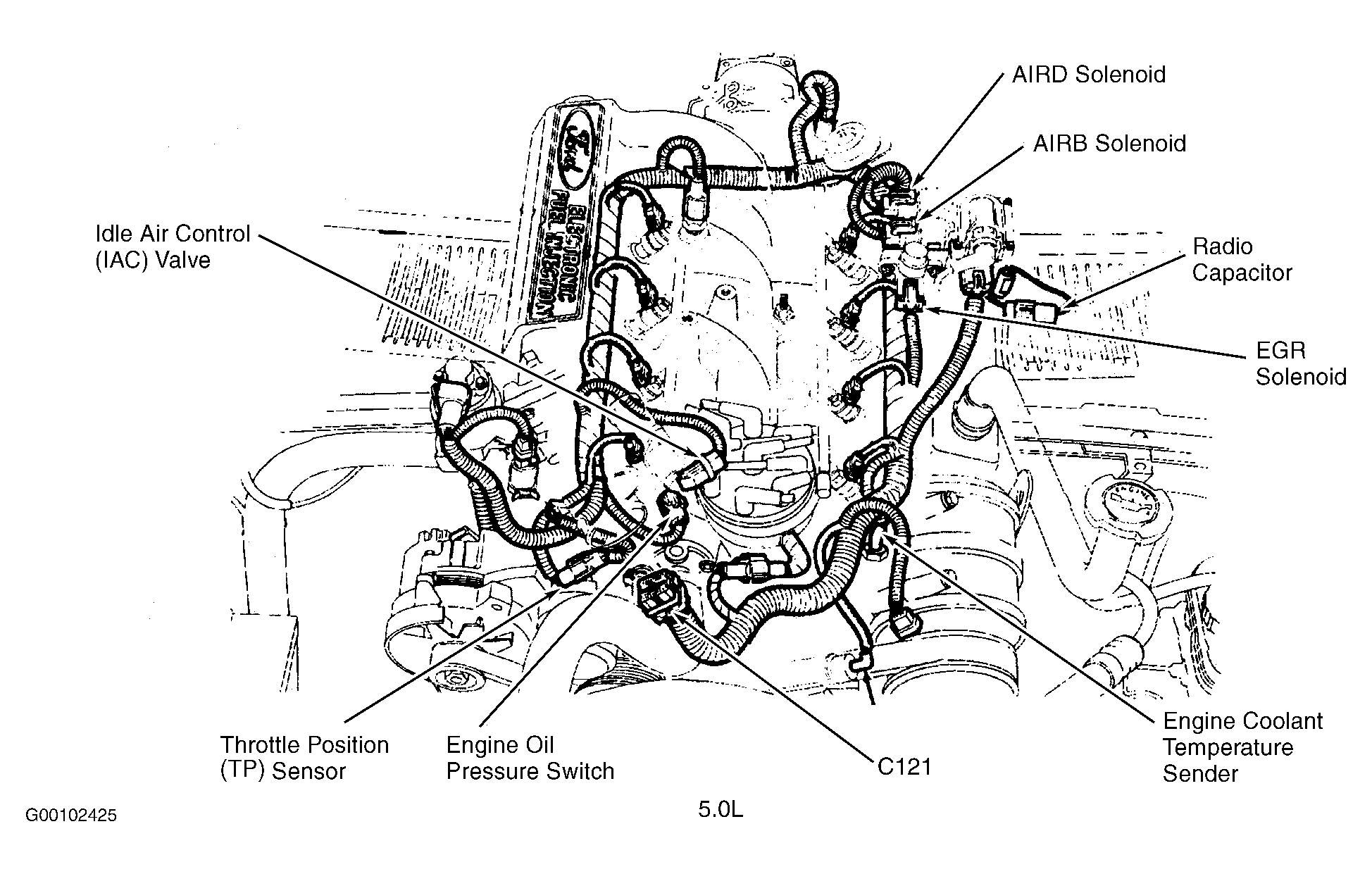

Fig 2: Top Of Engine (5.0L)

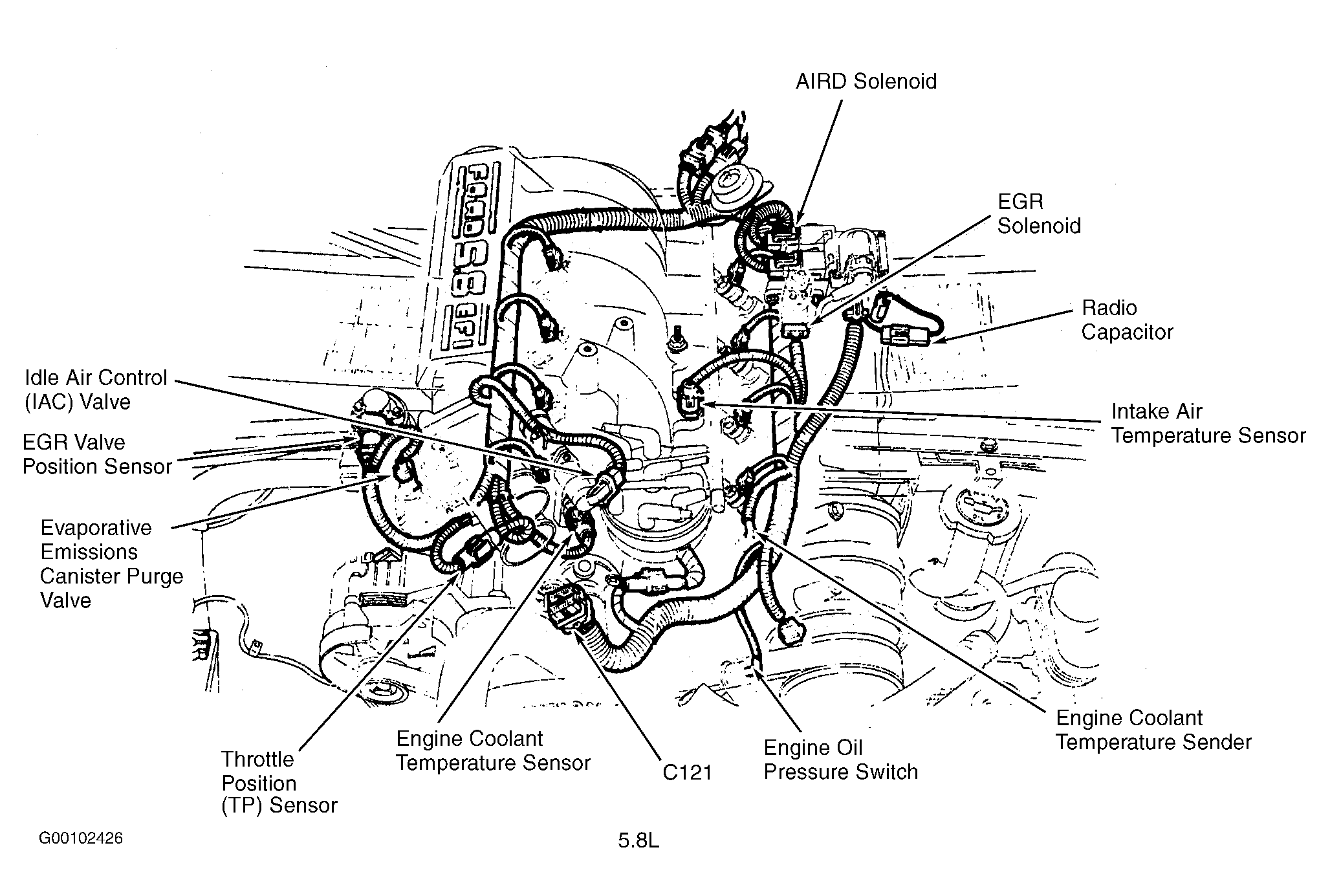

Fig 3: Top Of Engine (5.8L)

Fig 4: Center Of Engine Compartment (7.3L Diesel)

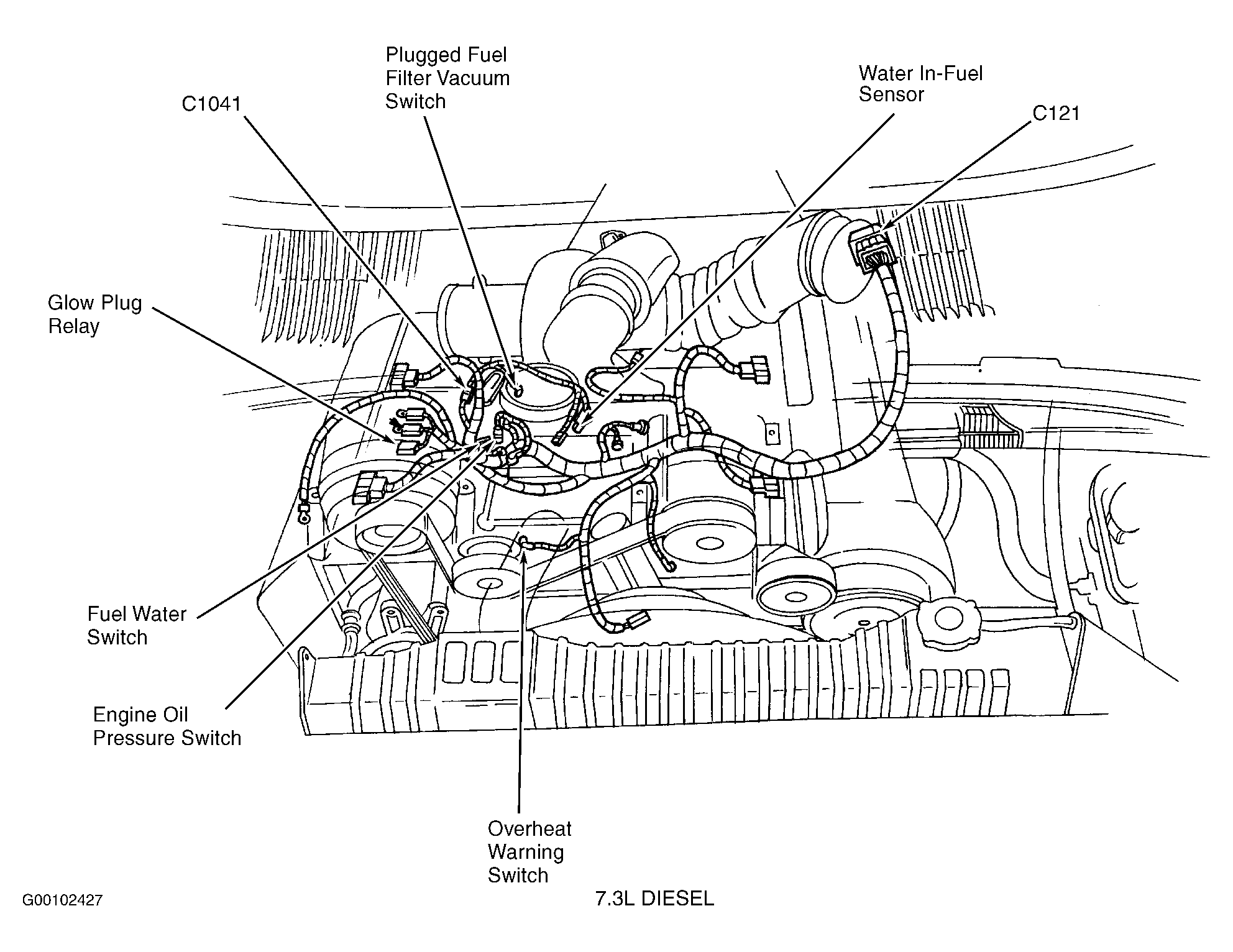

Fig 5: Engine Compartment (7.3L Diesel)

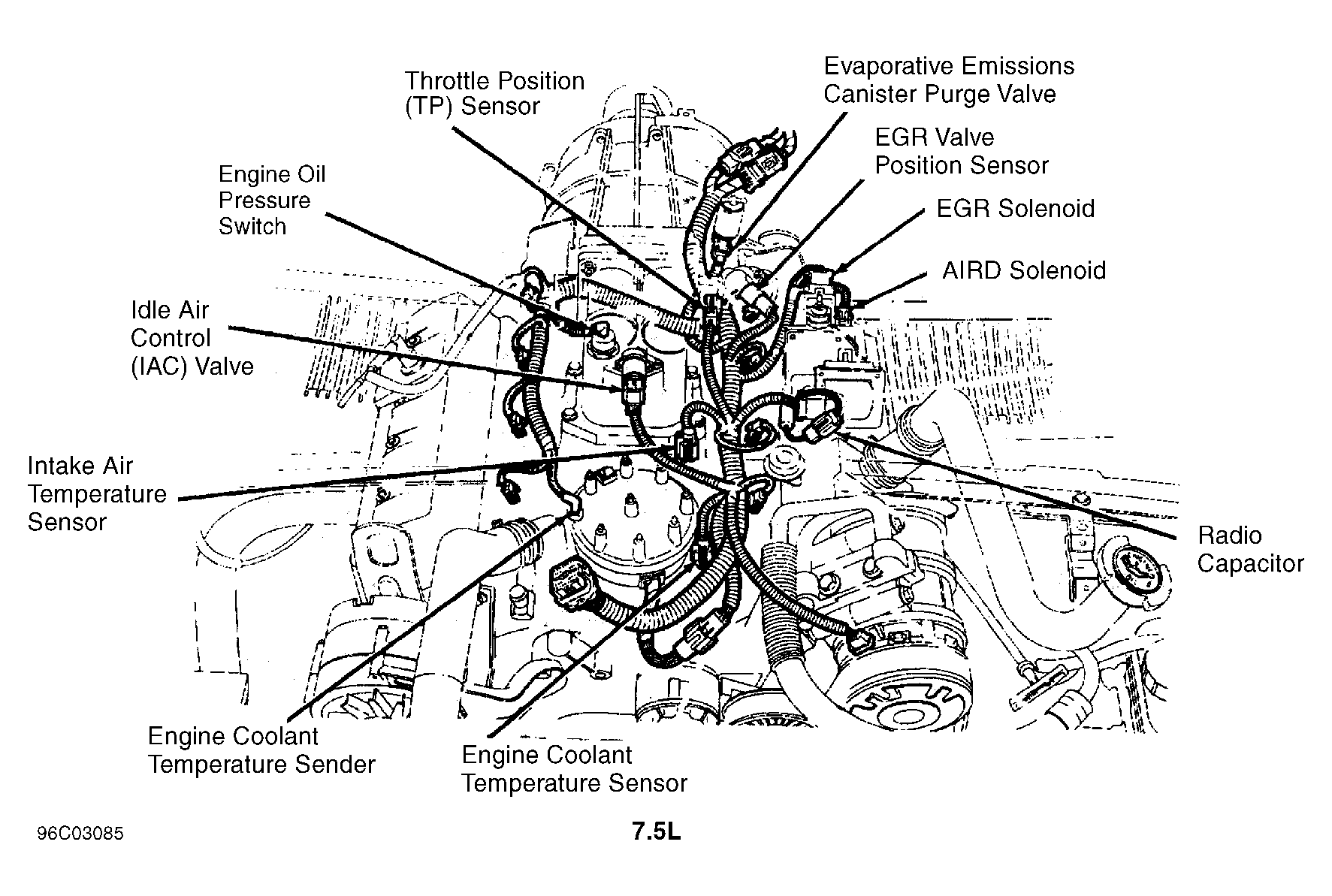

Fig 6: Top Of Engine (7.5L)

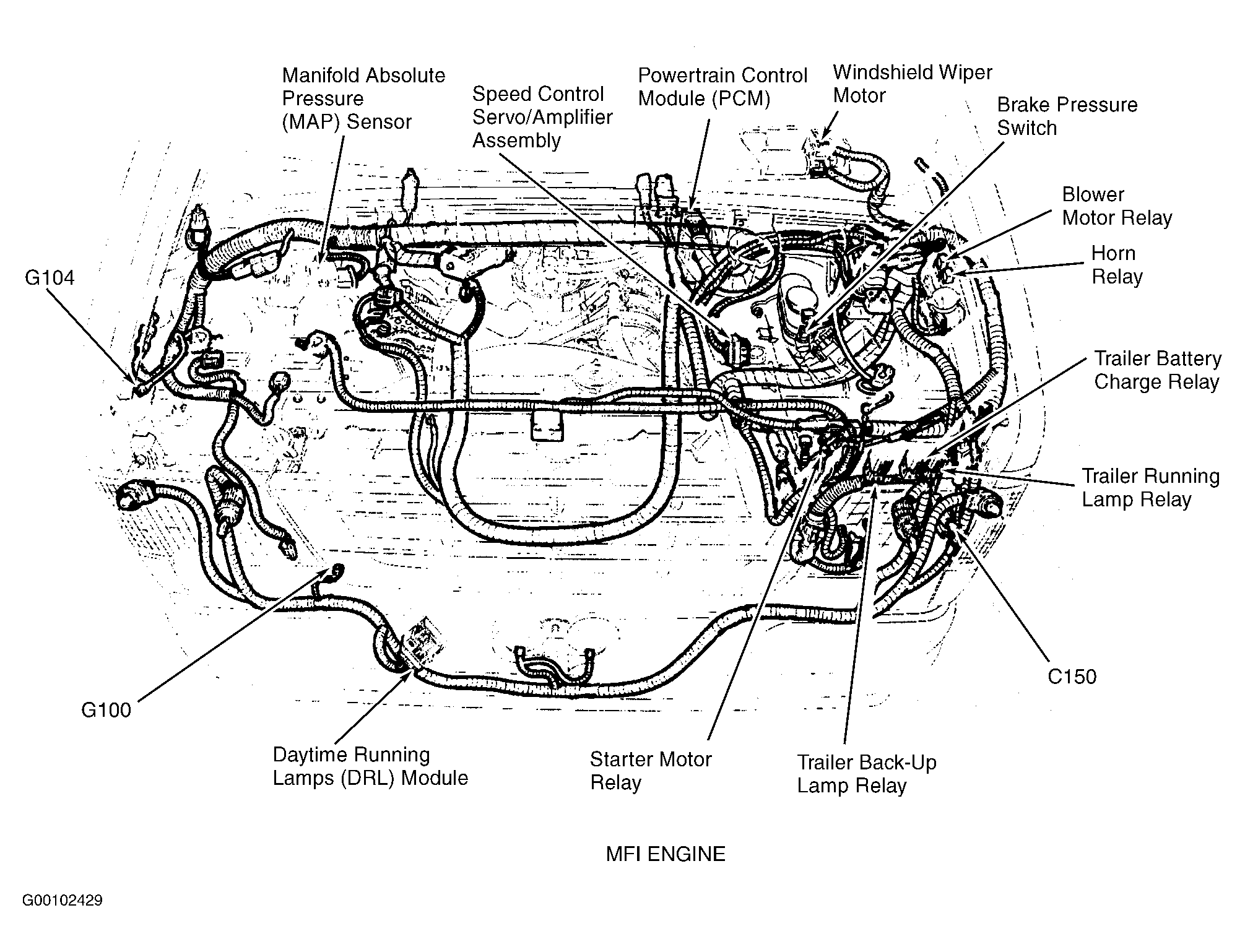

Fig 7: Engine Compartment (MFI Engine)

Fig 8: Engine Compartment (SFI Engine)

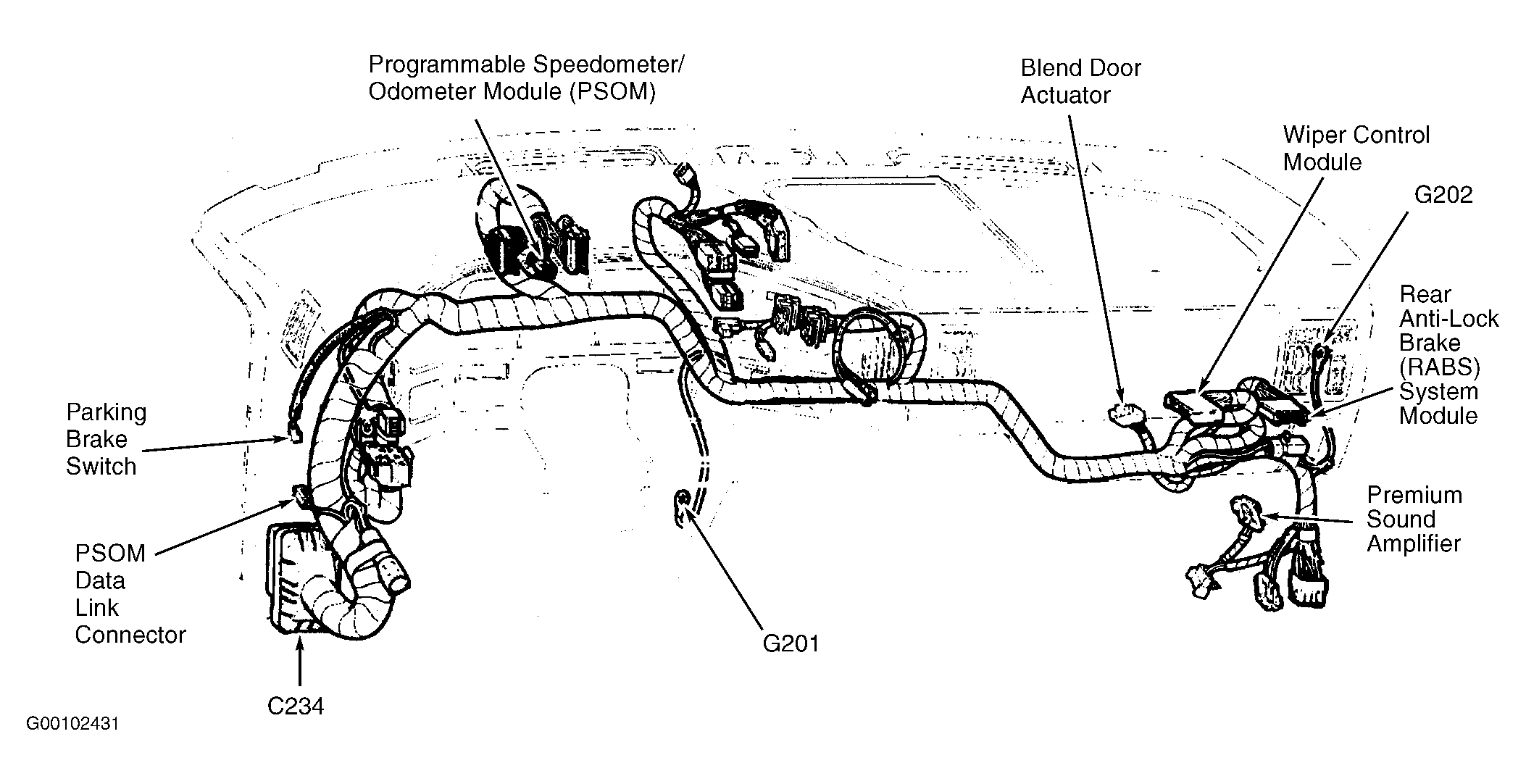

Fig 9: Dash
