Circuit Protection Devices

CIRCUIT PROTECTION DEVICES

Component Component Location
Circuit Breaker Power Door Locks In cavity No. 12 of fuse block.
Circuit Breaker Power Windows In cavity No. 14 of fuse block.
Circuit Breaker Windshield Wiper In cavity No. 2 of fuse block.

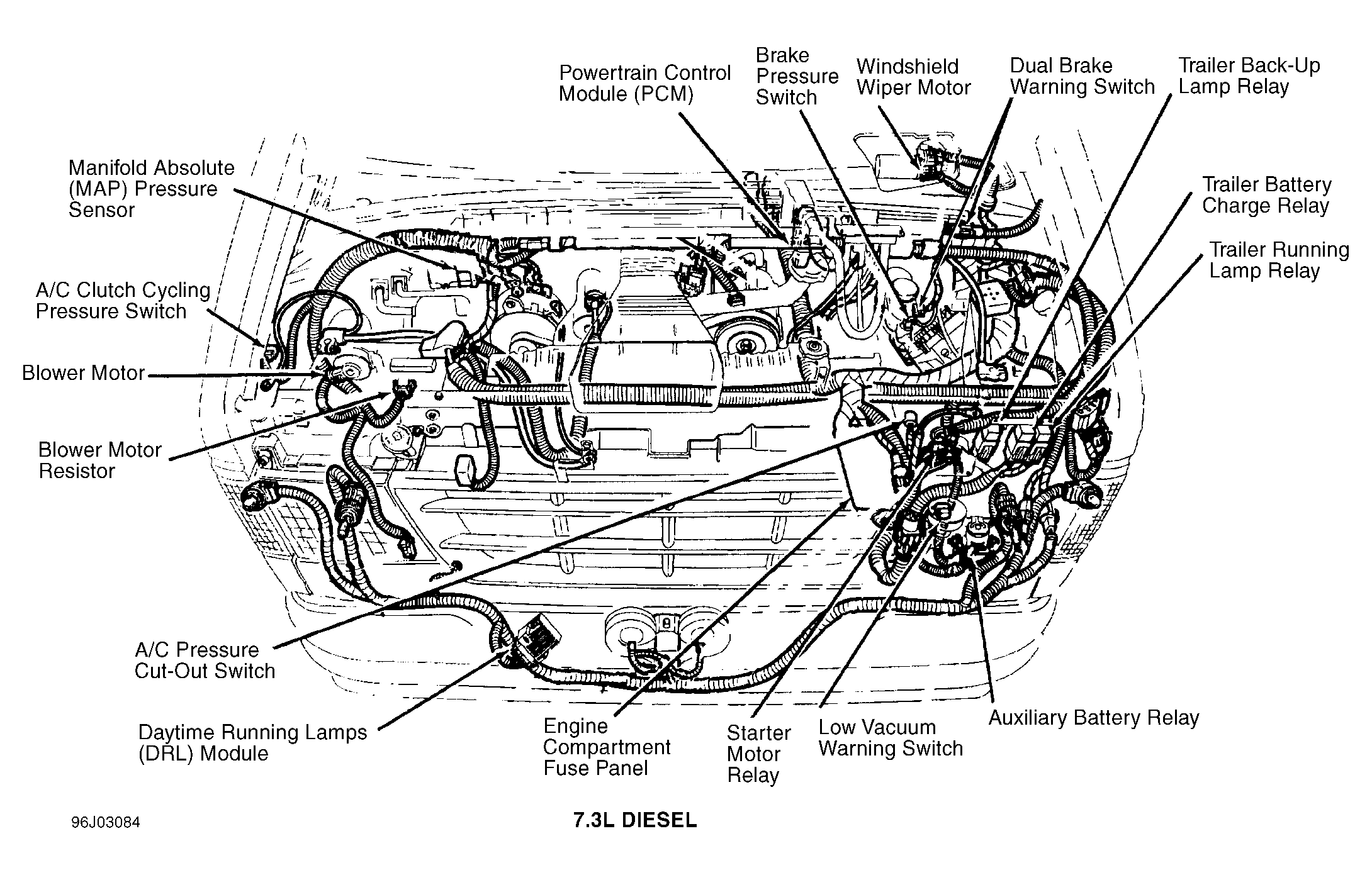

Engine Compartment Fuse Panel (Diesel) In left front corner of engine compartment. See Figure .
Engine Compartment Fuse Panel (MFI) In left front corner of engine compartment.

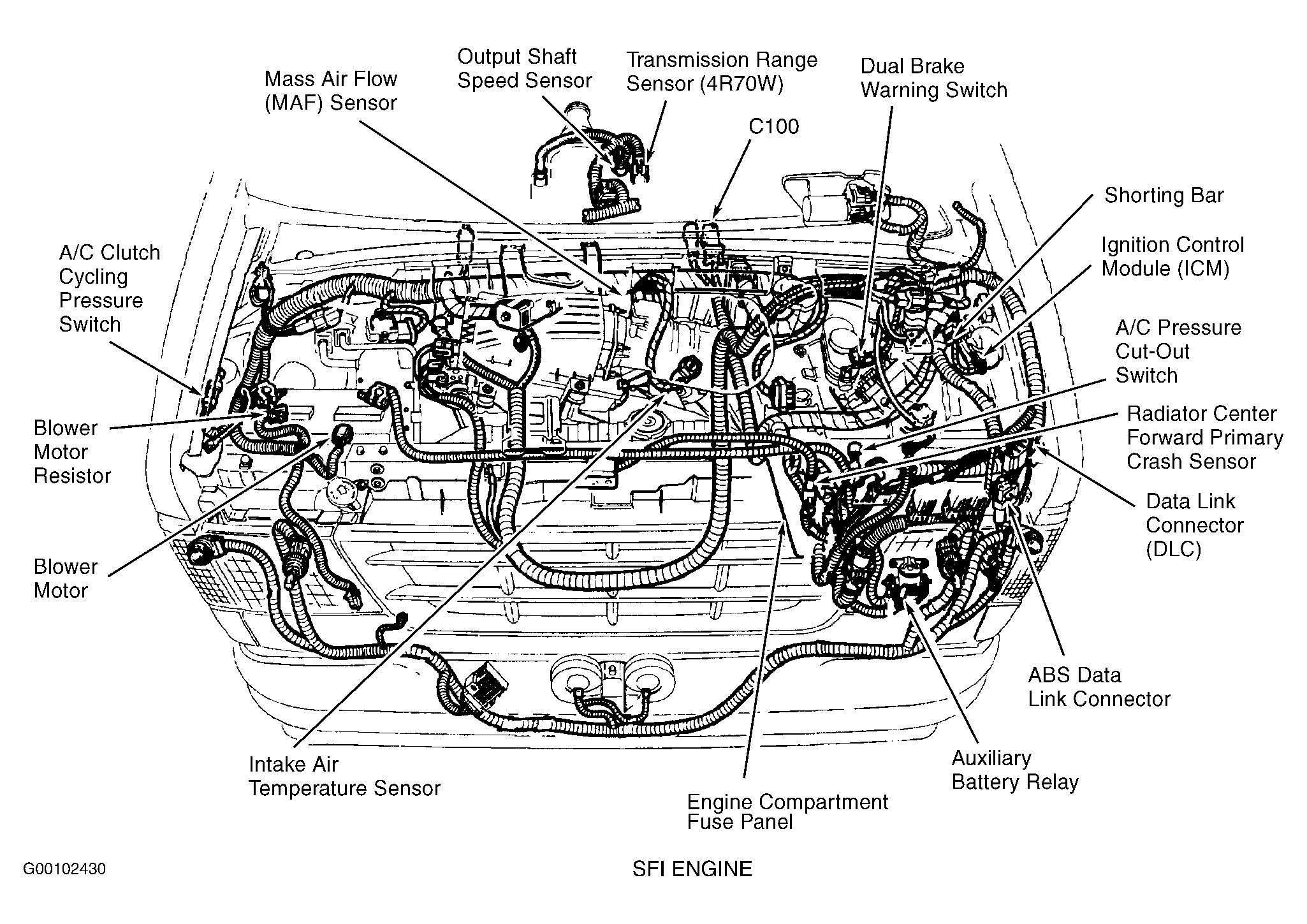

Engine Compartment Fuse Panel (SFI) In left front corner of engine compartment. See Figure .
Fuse Link A At starter motor relay.
Fuse Link B At starter motor relay.
Fuse Link C At starter motor relay.
Fuse Link D At starter motor relay.
Fuse Link E At starter motor relay.
Fuse Link F At starter motor relay.
Fuse Link G At starter motor relay.
Interior Fuse Panel Behind left side of dash.
