Relay Center

NOTE: Relay center is located in LH side of engine compartment. See Fig 1.
Fig 1: Locating Relay Center
G00522060Courtesy of FORD MOTOR CO.

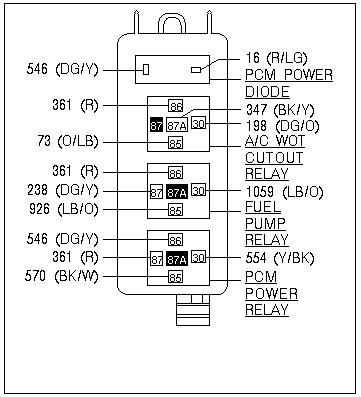

Fig 2: Identifying Relay Center Components
G00522062Courtesy of FORD MOTOR CO.
