Firing Order & Timing Marks

Fig 1: Identifying Firing Order & Timing Marks
G00217830

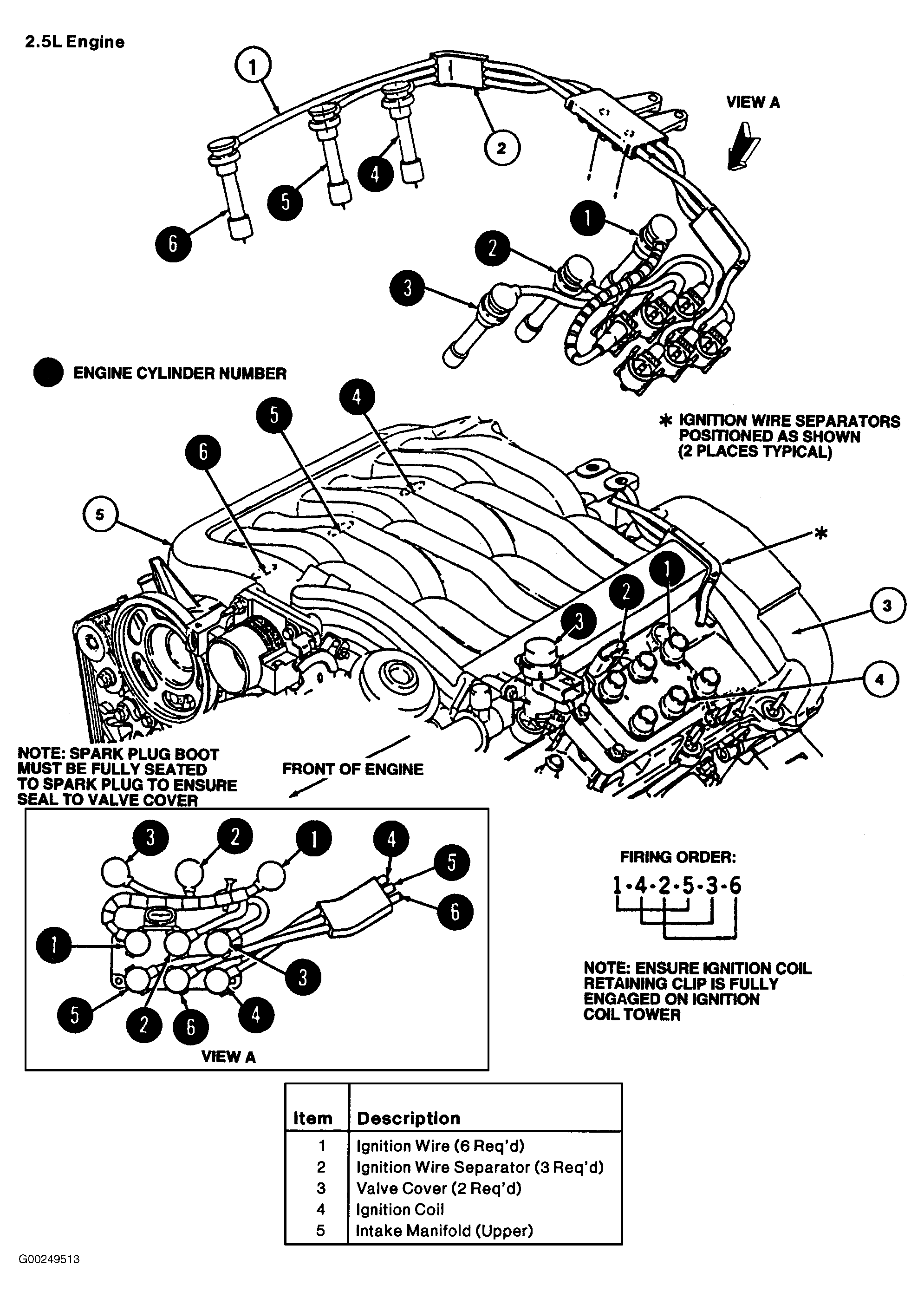

Fig 2: Identifying Spark Plug Wire Routing
G00249513Courtesy of FORD MOTOR CO.
BASE IGNITION TIMING

Application Degrees BTDC @ Idle
2.5L (1)(2) 8-12
(1) Disconnect single in-line SPOUT connector, or remove shorting bar from double-wire SPOUT connector.
(2) Timing is not adjustable.
