Removal & Installation: Speedometer/Odometer

NOTE: If a replacement odometer is installed, a label recording the vehicle's mileage at the date of replacement must be attached to the driver's door jamb.

Remove instrument cluster. See INSTRUMENT CLUSTER  . Press lock tabs to remove main lens. Remove speedometer/odometer from instrument cluster. See Fig 1 . To install, reverse removal procedure.

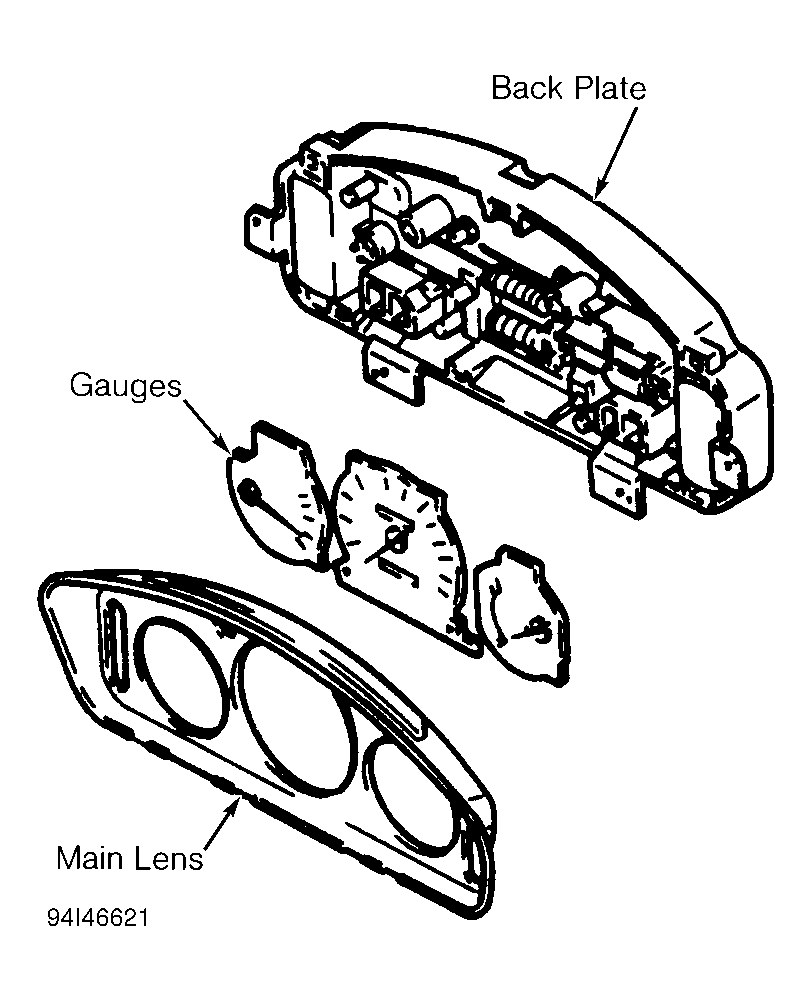

Fig 1: Exploded View Of Instrument Cluster
G94I46621
