Firing Order & Timing Marks

NOTE: For firing order and timing marks, See Fig 1 .Also, see Fig 2 .

Fig 1: Firing Order & Timing Marks

G91F13438

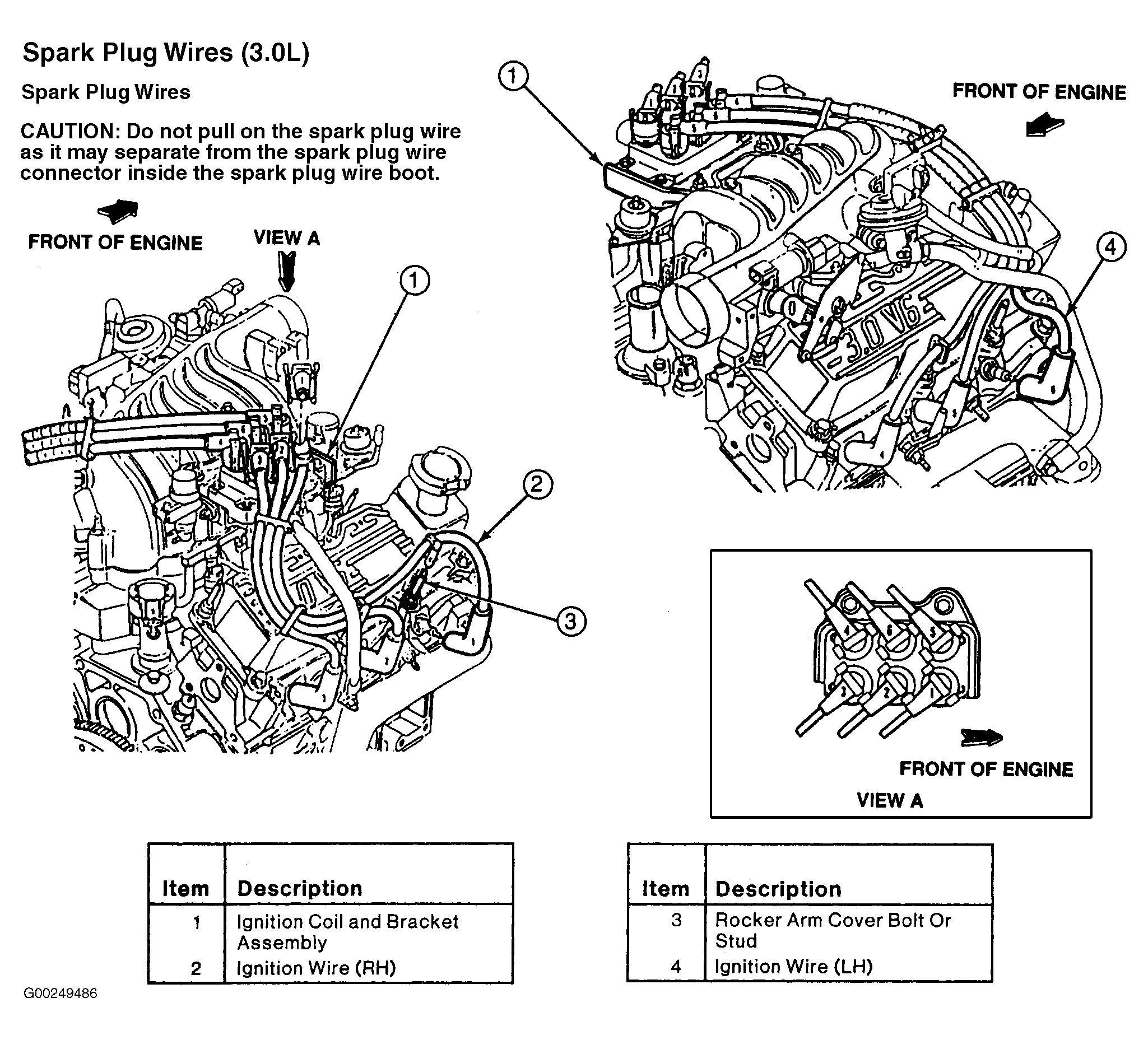

Fig 2: Identifying Spark Plug Wire Routing

G00249486
