Abs Quick Check Chart

NOTE: For measurements, use Breakout Box (014-00322), ABS Adapter Harness and Overlay (007-00108).

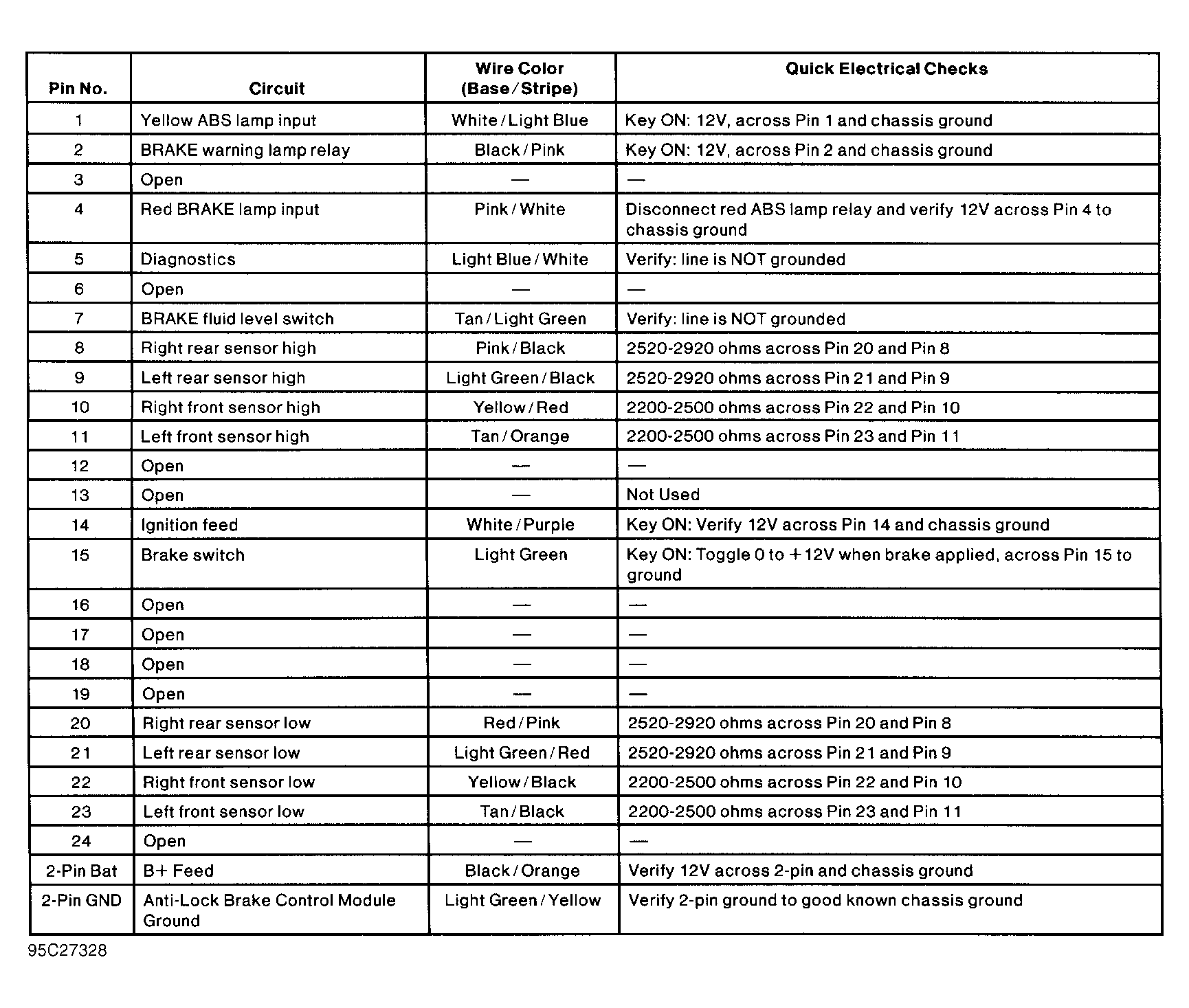

Fig 1: ABS Quick Check Chart

G95C27328

Courtesy of FORD MOTOR CO.
