Anti-Lock Brake System: Description
NOTE:
For more information on brake system, see the BRAKE SYSTEM
article.
CAUTION:
See the ANTI-LOCK BRAKE SAFETY PRECAUTIONS
article in the GENERAL INFORMATION section.

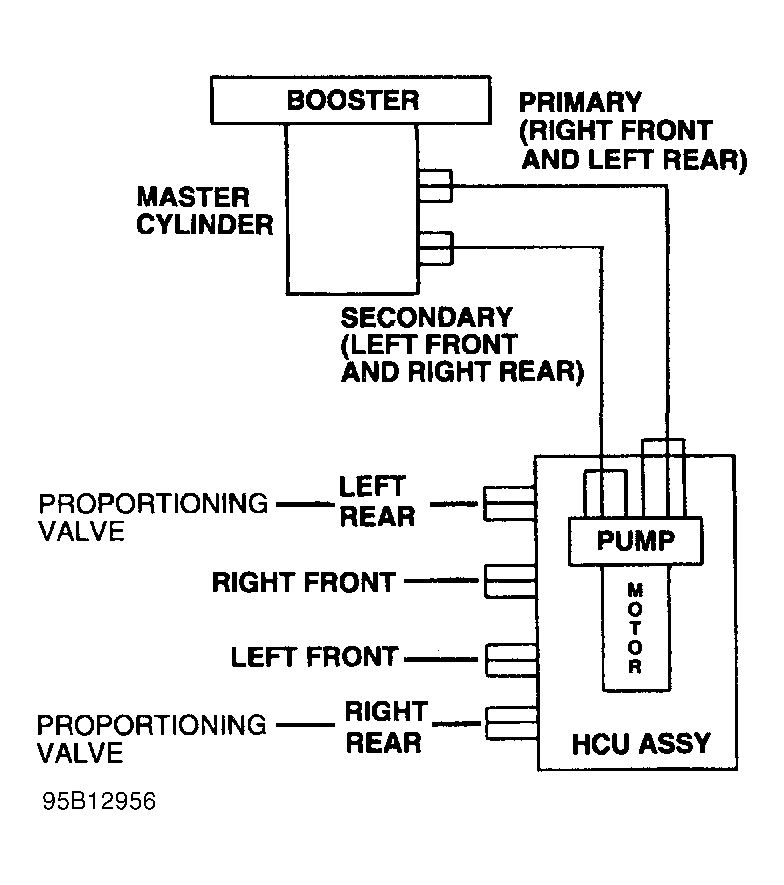

The Anti-Lock Brake System (ABS) allows the driver to stop in the shortest distance while maintaining steering control. System consists of a master cylinder/booster assembly, Electronic Control Unit (ECU), Hydraulic Control Unit (HCU), electric pump/motor, pedal travel switch, 4 wheel sensors, and ANTI-LOCK and BRAKE warning lights. See Fig 1 .
